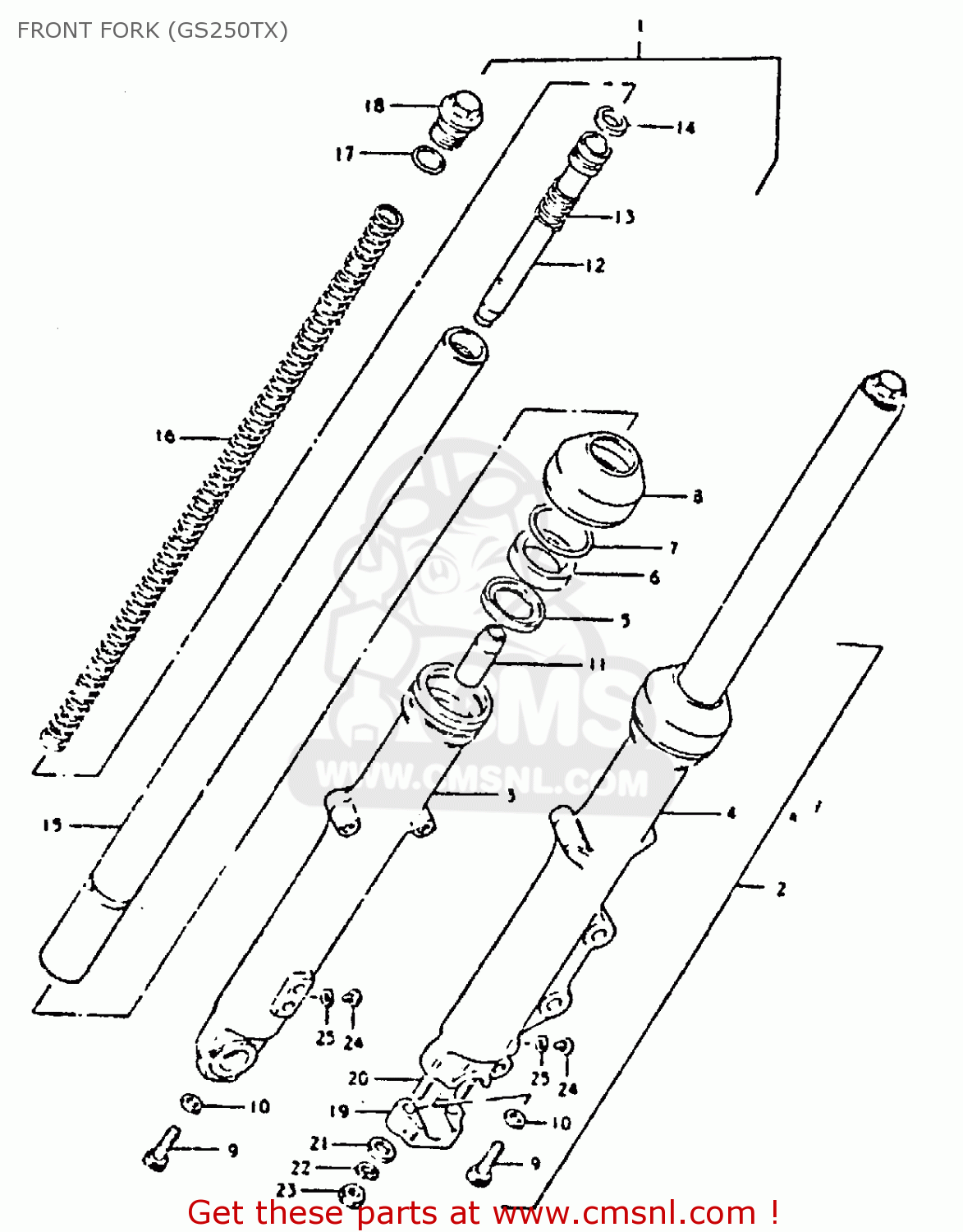

FRONT FORK (GS250TX)

ref

part #

description

quantity

1

5110311400
ref: 1

DAMPER ASSEMBLY,FRONT FORK,RIGHT

€ 241.50

2

5110411400
ref: 2

DAMPER ASSEMBLY,FRONT FORK,LEFT

€ 302.00

3

5113044033
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 129.00

4

5114044031
ref: 4

TUBE,FORK,LEFT,OUTER

€ 107.50

5

5116844030
ref: 5

SPACER,OIL SEAL

€ 4.50

6

5115344031
ref: 6
TO 51153-37310

OIL SEAL,FRONT FORK

€ 15.00

7

5115633130
ref: 7

CIRCLIP,FORK OIL SEAL

€ 4.50

8

5157133131
ref: 8
TO 51571-37310

BOOT

€ 22.00

9

5114748130
ref: 9

BOLT(8X27)

€ 3.50

10

5114831030
ref: 10

GASKET (NAS)

€ 4.00

11

5119548000
ref: 11

PIECE,OIL LOCK

€ 8.50

12

5114611400
ref: 12

CYLINDER,FRONT FORK

€ 43.00

13

5117736030
ref: 13

SPRING,REBOUND

€ 4.50

14

5119633130
ref: 14

RING,PISTON

€ 7.50

15

5111044030
ref: 15

TUBE,INNER

€ 197.50

16

5117144110
ref: 16

SPRING

€ 43.50

17

5118131030
ref: 17

O RING

€ 3.50

18

5135133130
ref: 18

BOLT

€ 30.50

19

5113231030
ref: 19

HOLDER,AXLE

€ 31.50

20

0142108258
ref: 20

STUD 8X25

€ 2.50

21

0832221088
ref: 21

WASHER

€ 2.00

22

0832121088
ref: 22

LOCK WASHER

€ 2.00

23

0914008005
ref: 23

NUT (8MM)

€ 1.50

24

0211204068
ref: 24

SCREW 4X6

€ 2.00

25

5118333030
ref: 25

GASKET (NAS)

€ 6.50

all assemblies
