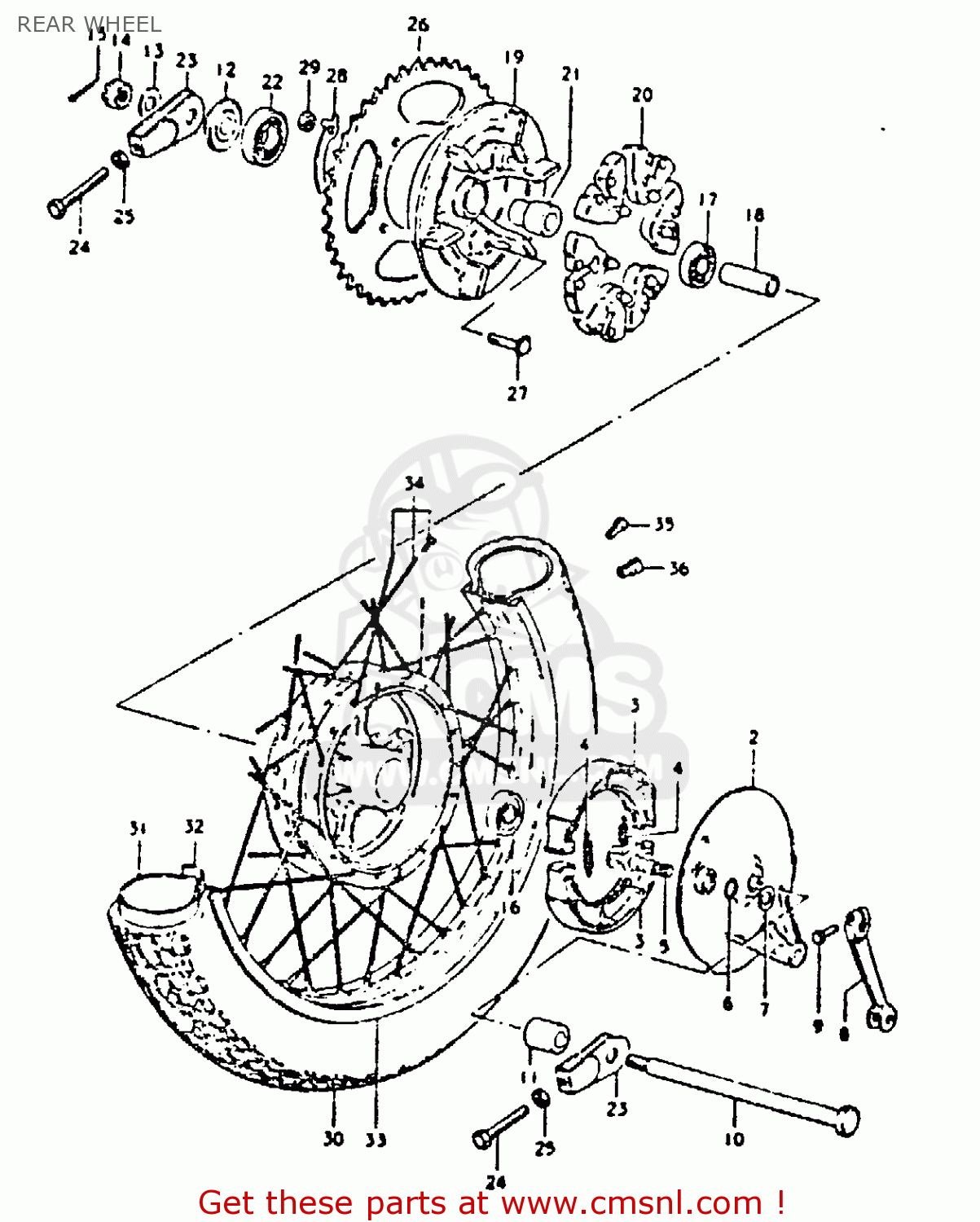

REAR WHEEL

ref

part #

description

quantity

1-1

6411011310
ref: 1-1
MODEL T

DRUM,REAR HUB

€ 0.00

1-2

6411011311
ref: 1-2
MODEL X

HUB,RR

€ 0.00

2

6421011310
ref: 2

PANEL,REAR HUB

€ 0.00

3

6441011301
ref: 3

SHOE,BRAKE

€ 29.50

4

5542030000
ref: 4

SPRING,BRAKE SHOE

€ 3.50

5

5444008003
ref: 5

CAM,FRONT BRAKE

€ 19.00

6

0928015001
ref: 6

O-RING,BOSS

€ 2.00

7

0916015001
ref: 7

WASHER (15X24X1.6)

€ 2.50

8

6445144001
ref: 8

LEVER,RR BRAKE CAM

€ 111.00

9

0110706258
ref: 9

BOLT

€ 2.00

10

6471148000
ref: 10

AXLE,REAR

€ 35.50

11

0918015046
ref: 11

SPACER

€ 4.50

12

6475011400
ref: 12

SPACER,REAR AXLE,LEFT

€ 15.50

13

0832211148
ref: 13

WASHER

€ 2.00

14

0914114001
ref: 14

NUT

€ 4.50

15

0411130308
ref: 15

COTTER PIN

€ 1.50

16

0814363027
ref: 16

BEARING, RH

€ 12.00

17

0814362027
ref: 17

BEARING

€ 12.50

18

0918015045
ref: 18

SPACER(15.3X21.7X58)

€ 8.50

19

6461111300
ref: 19

DRUM,REAR SPROCKET MOUNT

€ 113.00

20

6465111300
ref: 20

ABSORBER,RR HUB SHOCK

€ 12.50

21

6473339100
ref: 21

RETAINER,RR SPROCKET MTG

€ 17.00

22

0812362047
ref: 22

BEARING

€ 17.00

23

6141030003
ref: 23

ADJUSTER,CHAIN,R

€ 18.50

24

0910408006
ref: 24

BOLT

€ 3.00

25

0831012088
ref: 25

NUT

€ 2.00

26-1

6451111400
ref: 26-1

SPROCKET,RR(NT:47)

€ 66.00

26-2

6451111430
ref: 26-2
OPT

SPROCKET, REAR (NT:45T)

€ 80.50

27

0910508001
ref: 27

BOLT(8X33.5)

€ 2.50

28

0916908021
ref: 28

WASHER,LOCK

€ 6.50

29

0914008005
ref: 29

NUT (8MM)

€ 1.50

30-1

6510011415
ref: 30-1
IRC

TIRE

€ 0.00

30-2

6510011416
ref: 30-2
IRC

TIRE

€ 0.00

31

6520029500
ref: 31

TUBE 3.50-17 089-432MM

€ 0.00

32

5526101010
ref: 32

PROTECTOR,WHEEL,INNER

€ 3.50

33

6531111405
ref: 33

RIM,REAR WHEEL

€ 0.00

34

6532011405
ref: 34

SPOKE ASSY,RR

€ 52.00

35

5541111000
ref: 35

BALANCER,WHEEL (B)

€ 4.50

36

5541211000
ref: 36

BALANCER,WHEEL (30G)

€ 8.00
