MASTER CYLINDER

GS250T 1980 (T) UNITED KINGDOM (E02)

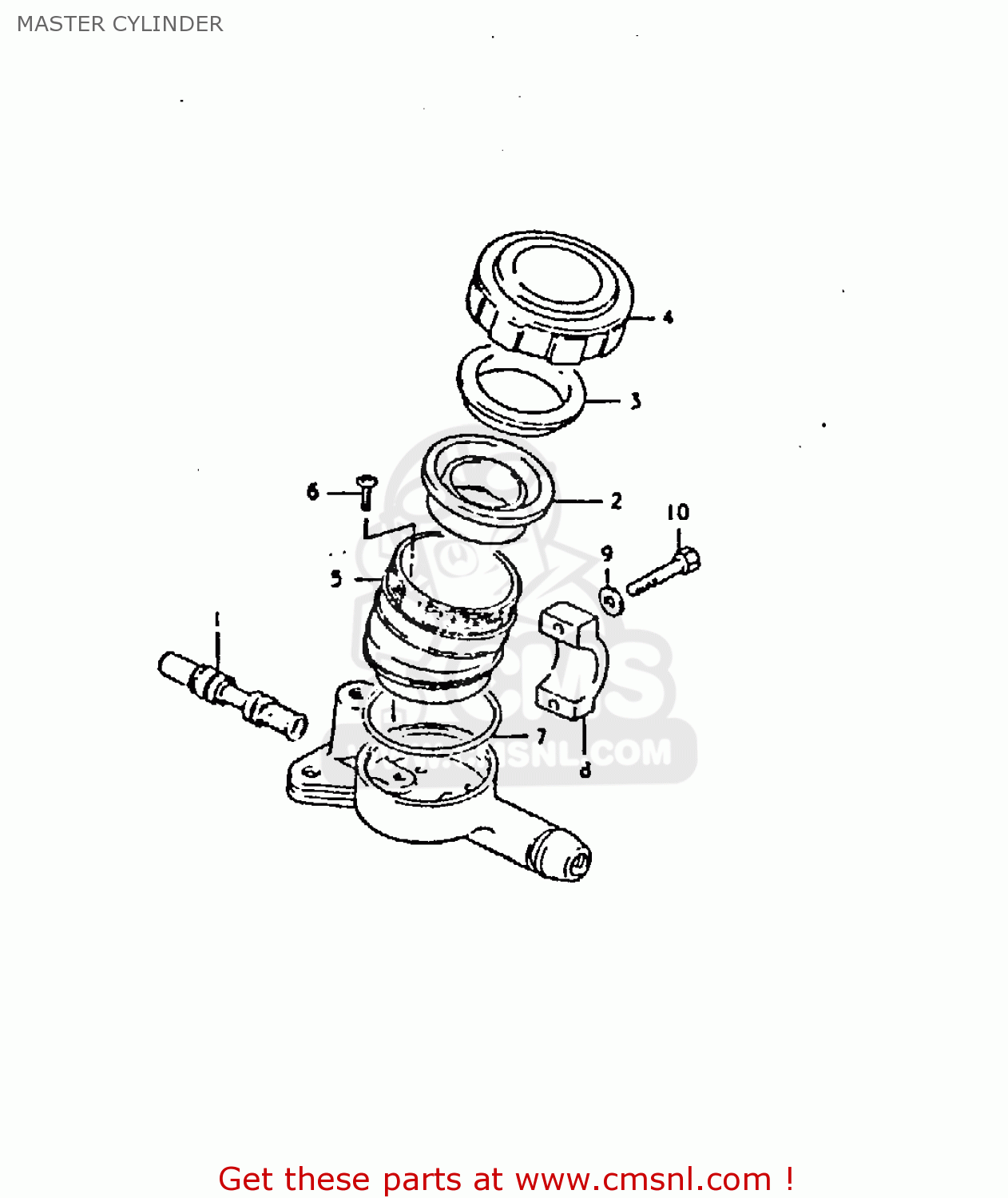

Master cylinder diagram GS250T 1980 (T) UNITED KINGDOM (E02)

MASTER CYLINDER GS250T 1980 (T) UNITED KINGDOM (E02)

MASTER CYLINDER GS250T 1980 (T) UNITED KINGDOM (E02)

prices are in EUR

ref

part #

description

quantity

0

59C0045070
ref: 0

CYLINDER ASSY, MASTER

€ 0.00

1

5960045821
ref: 1

PISTON & CUP SET

€ 44.50

2

5966718441
ref: 2

DIAPHRAGM

€ 8.50

3

5966818441
ref: 3

PLATE,DIAPHRAGM

€ 3.50

4

5966933621
ref: 4

CAP

€ 35.00

5

5968745050
ref: 5

RESERVOIR

€ 18.50

6

5968833601
ref: 6

SCREW,MASTER CYLINDER

€ 2.00

7

5968633600
ref: 7

O RING

€ 14.00

8

5967118441
ref: 8

HOLDER,MASTER CYLINDER

€ 5.50

9

0832221068
ref: 9

WASHER

€ 2.00

10

0110706258
ref: 10

BOLT

€ 2.00
