MUFFLER
GS250T 1980 (T) UNITED KINGDOM (E02)

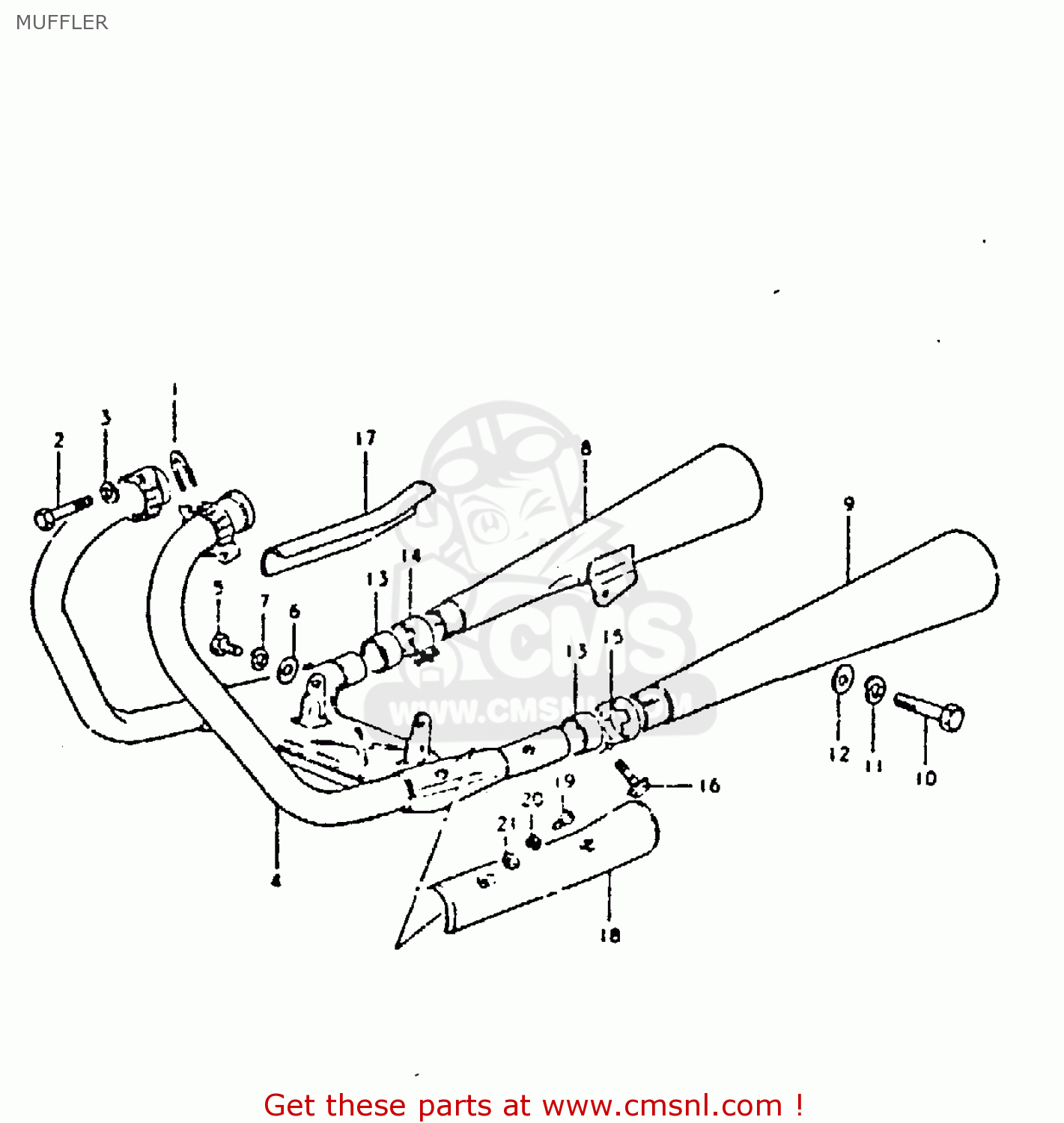

Muffler diagram GS250T 1980 (T) UNITED KINGDOM (E02)
MUFFLER GS250T 1980 (T) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
1
1418105010
ref: 1
GASKET,EXHAUST PIPE (NAS)
€ 6.50
2
0110708358
ref: 2
BOLT
€ 3.50
3
0832121088
ref: 3
LOCK WASHER
€ 2.00
4
1410011400
ref: 4
PIPE,EXHAUST
€ 367.50
5
0110708168
ref: 5
BOLT
€ 2.00
6
0832121088
ref: 6
LOCK WASHER
€ 2.00
7
0832211088
ref: 7
WASHER
€ 2.00
8
1431011400
ref: 8
BODY,MUFFLER
€ 219.50
9
1434011400
ref: 9
BODY,MUFFLER
€ 203.00
10
0110710308
ref: 10
BOLT 10X30
€ 3.00
11
0832121108
ref: 11
LOCK WASHER
€ 2.00
12
0832221108
ref: 12
WASHER
€ 2.50
13
1477147010
ref: 13
CONNECTOR,MUFFLER
€ 35.00
14
1445947000
ref: 14
CLAMP,MUFFLER CONNECTOR,R
€ 12.50
15
1445947000
ref: 15
CLAMP,MUFFLER CONNECTOR,R
€ 12.50
16
0151708258
ref: 16
BOLT
€ 2.50
17
1478111400
ref: 17
COVER,MUFFLER
€ 23.50
18
1479111400
ref: 18
COVER,MUFFLER,LEFT
€ 48.00
19
0211205088
ref: 19
SCREW
€ 2.00
20
0832121058
ref: 20
LOCK WASHER
€ 2.00
21
0832221058
ref: 21
WASHER
€ 2.50
