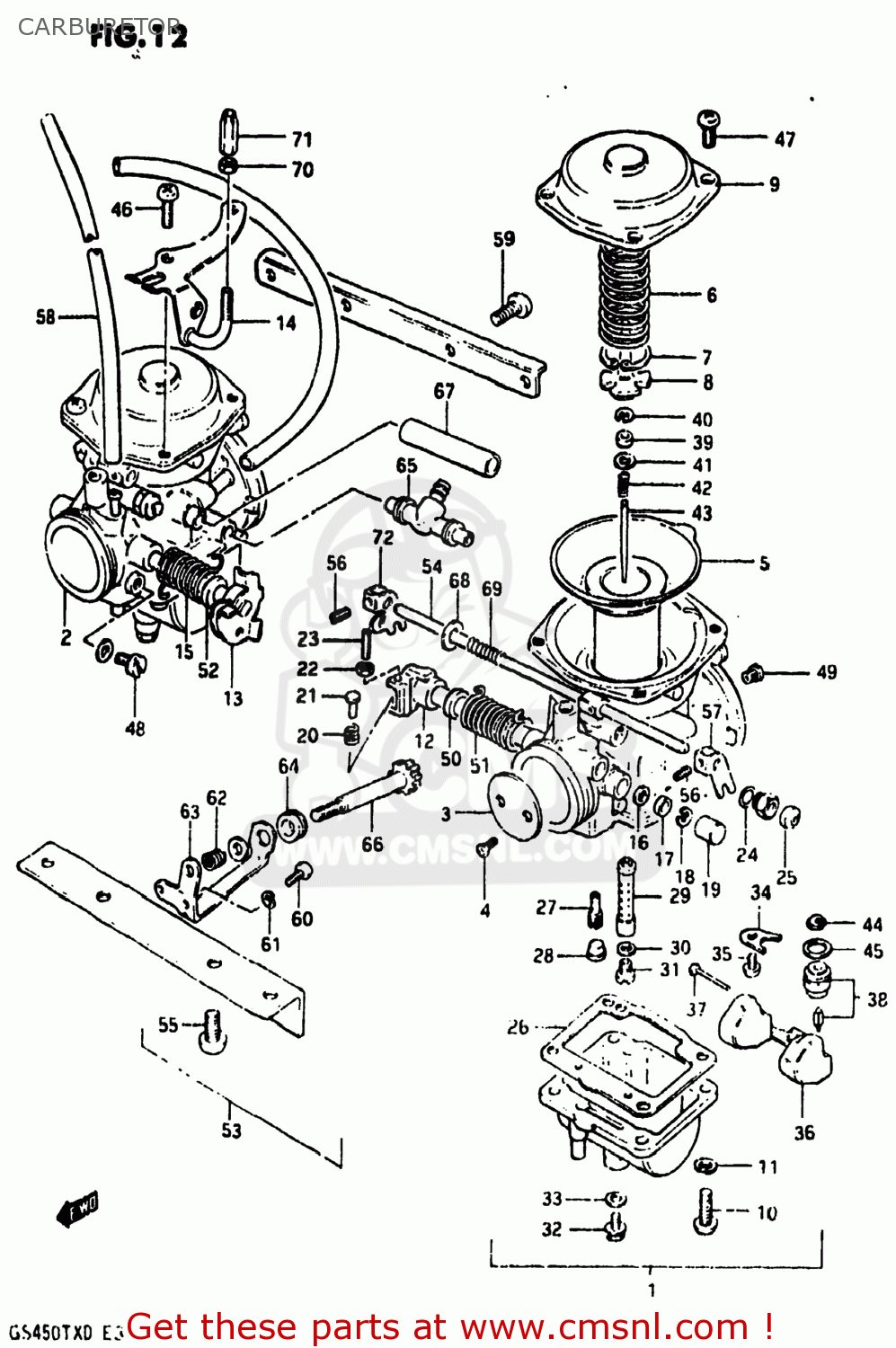

CARBURETOR

ref

part #

description

quantity

1

1320144460
ref: 1

CARBURETOR

€ 197.50

2

1320244460
ref: 2

CARBURETOR ASSEMBLY,RIGHT

€ 195.50

3

1355144500
ref: 3

VALVE,THROTTLE

€ 26.00

4

1360444080
ref: 4

SCREW

€ 3.50

5

1350049200
ref: 5
13500-38310

DIAPHRAGM ASSEMBLY

€ 168.00

6

1350344400
ref: 6
13503-15510

SPRING

€ 7.50

7

1358144030
ref: 7

E RING

€ 6.50

8

1338944030
ref: 8

HOLDER,GUIDE

€ 10.50

9

1350238300
ref: 9

COVER

€ 22.00

10

0211205168
ref: 10
02112-05167

SCREW

€ 2.50

11

0832121058
ref: 11
08321-0105A

LOCK WASHER

€ 2.00

12

1355044210
ref: 12

SHAFT ASSEMBLY

€ 0.00

13

1355044220
ref: 13

SHAFT,THROTTLE

€ 0.00

14

1362744460
ref: 14

BRACKET,THROTTLE CABLE

€ 11.50

15

1357344210
ref: 15

SPRING

€ 0.00

16

1365151010
ref: 16

SEAL

€ 4.00

17

1355747070
ref: 17

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

18

1361744080
ref: 18

E RING

€ 3.50

19

1357847070
ref: 19

CAP

€ 5.50

20

1326844100
ref: 20
13268-44110

SPRING

€ 0.00

21

1356344110
ref: 21

PIN,THROTTLE LEVER

€ 0.00

22

1360747070
ref: 22

NUT

€ 4.00

23

1360547080
ref: 23

SCREW

€ 7.00

24

1327847090
ref: 24

O RING

€ 2.00

25

1368231210
ref: 25

CAP,STARTER VALVE

€ 5.00

26

1325144080
ref: 26
13251-44080-H17

GASKET,FLOAT CHAMBER (NAS)

€ 9.50

27

0949245016
ref: 27

JET,PILOT(45)

€ 12.00

28

1335744080
ref: 28

PLUG,NEEDLE JET

€ 4.50

29

0949400379
ref: 29

JET,NEEDLE

€ 9.00

30

1333244080
ref: 30
13382-03110

WASHER,NEEDLE NOZZLE

€ 2.50

31

0949123011
ref: 31

JET,MAIN(115)

€ 10.50

32

1324744080
ref: 32

PLUG,DRAIN

€ 9.50

33

1324644080
ref: 33

GASKET (NAS)

€ 3.50

34

1337311400
ref: 34

PLATE,NEEDLE VALVE FITING

€ 7.00

35

0211204068
ref: 35
02112-0406B

SCREW 4X6

€ 2.00

36

1325044080
ref: 36

FLOAT

€ 31.00

37

1325492311
ref: 37

PIN,FLOAT

€ 2.00

38

1337011400
ref: 38
13370-44500

VALVE ASSEMBLY,NEEDLE

€ 40.50

39

1338744460
ref: 39
13387-47010

RING

€ 7.50

40

1338445010
ref: 40
13394-10010

E-RING

€ 4.50

41

1338247010
ref: 41

WASHER,JET NEEDLE

€ 3.00

42

1338847010
ref: 42

SPRING

€ 7.00

43

1338344460
ref: 43

NEEDLE JET

€ 9.50

44

1337665010
ref: 44
13376-19F00

FILTER

€ 6.50

45

1337444080
ref: 45
13374-35C00

O-RING,NEEDLE VALVE

€ 6.00

46

0211205108
ref: 46
02112-05107

SCREW

€ 2.00

47

0211205088
ref: 47
02112-05087

SCREW

€ 2.00

48

1360545410
ref: 48
13605-73000

SCREW

€ 8.00

49

0949329001
ref: 49

JET,AIR

€ 7.50

50

1338744200
ref: 50

SPACER,THROTTLE SHAFT

€ 0.00

51

1357344200
ref: 51

SPRING

€ 0.00

52

1338744210
ref: 52

SPACER,THROTTLE SHAFT

€ 0.00

53

1321044460
ref: 53

FLANGE ASSEMBLY,CARBURETOR

€ 185.00

54

1341044460
ref: 54

SHAFT,STARTER

€ 19.00

55

0211206128
ref: 55
02112-06127

SCREW 6X12

€ 2.00

56

1360547070
ref: 56

SCREW

€ 5.50

57

1342244080
ref: 57

LEVER

€ 10.00

58

1368718656
ref: 58
09355-45855-600

HOSE

€ 14.00

59

0211205128
ref: 59
02112-05127

SCREW

€ 2.50

60

0211205088
ref: 60
02112-05087

SCREW

€ 2.00

61

0832121058
ref: 61
08321-0105A

LOCK WASHER

€ 2.00

62

1327144220
ref: 62
13268-37420

SPRING,THROTTLE ADJUST

€ 3.50

63

1362144210
ref: 63
13627-44120

BRACKET,THROTTLE ADJUST

€ 0.00

64

1368116600
ref: 64

CAP,RUBBER

€ 7.00

65

1368511400
ref: 65

NIPPLE,CARBURETOR

€ 19.50

66

1326747070
ref: 66

SCREW

€ 21.00

67

1368311400
ref: 67
44420-44AR0

HOSE

€ 13.00

68

1342744460
ref: 68

WASHER,STARTER PLUNGER

€ 0.00

69

1343744500
ref: 69

SPRING,STARTER

€ 0.00

70

1366103010
ref: 70

NUT

€ 3.50

71

1357798011
ref: 71

ADJUSTER

€ 0.00

72

1342244500
ref: 72

LEVER,STARTER

€ 16.00
