SEAT
GS450TX 1983 (D) USA (E03)

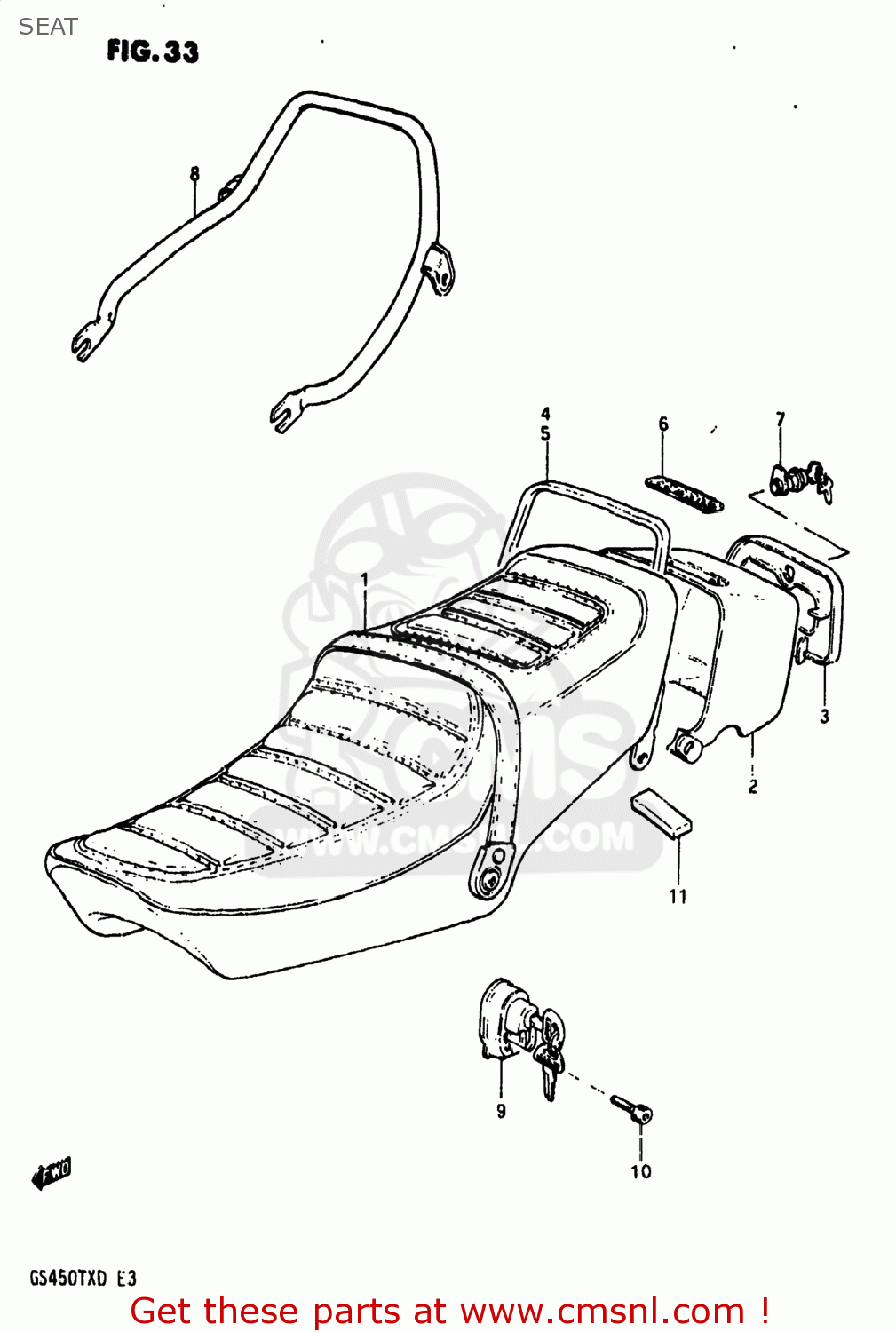

Seat diagram GS450TX 1983 (D) USA (E03)
SEAT GS450TX 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
451001195048H
ref: 1
SEAT ASSEMBLY
€ 317.00
2
455111195014W
ref: 2
COVER,SEAT TAIL
€ 59.00
3
455251195014W
ref: 3
LID,TAIL COVER
€ 25.00
4
4551811950
ref: 4
WEATHERSTRIP,TAIL COVER
€ 0.00
5
4551911950
ref: 5
WEATHER STRIP, TAIL COVER NO.2
€ 0.00
6
6823444500
ref: 6
EMBLEM
€ 8.00
7
9570005350KEY
ref: 7
95700-05850
LOCK SET,TAIL COVER
€ 33.50
8
4621044700
ref: 8
HANDLE,PILLION RIDER
€ 29.50
9
9570034210
ref: 9
LOCK ASSY,HELMET
€ 59.00
10
0910605008
ref: 10
07130-0525B
BOLT 5X25
€ 2.00
11
4556244410
ref: 11
CUSHION
€ 2.50
