REAR SWINGING ARM
GS450TX 1983 (D) USA (E03)

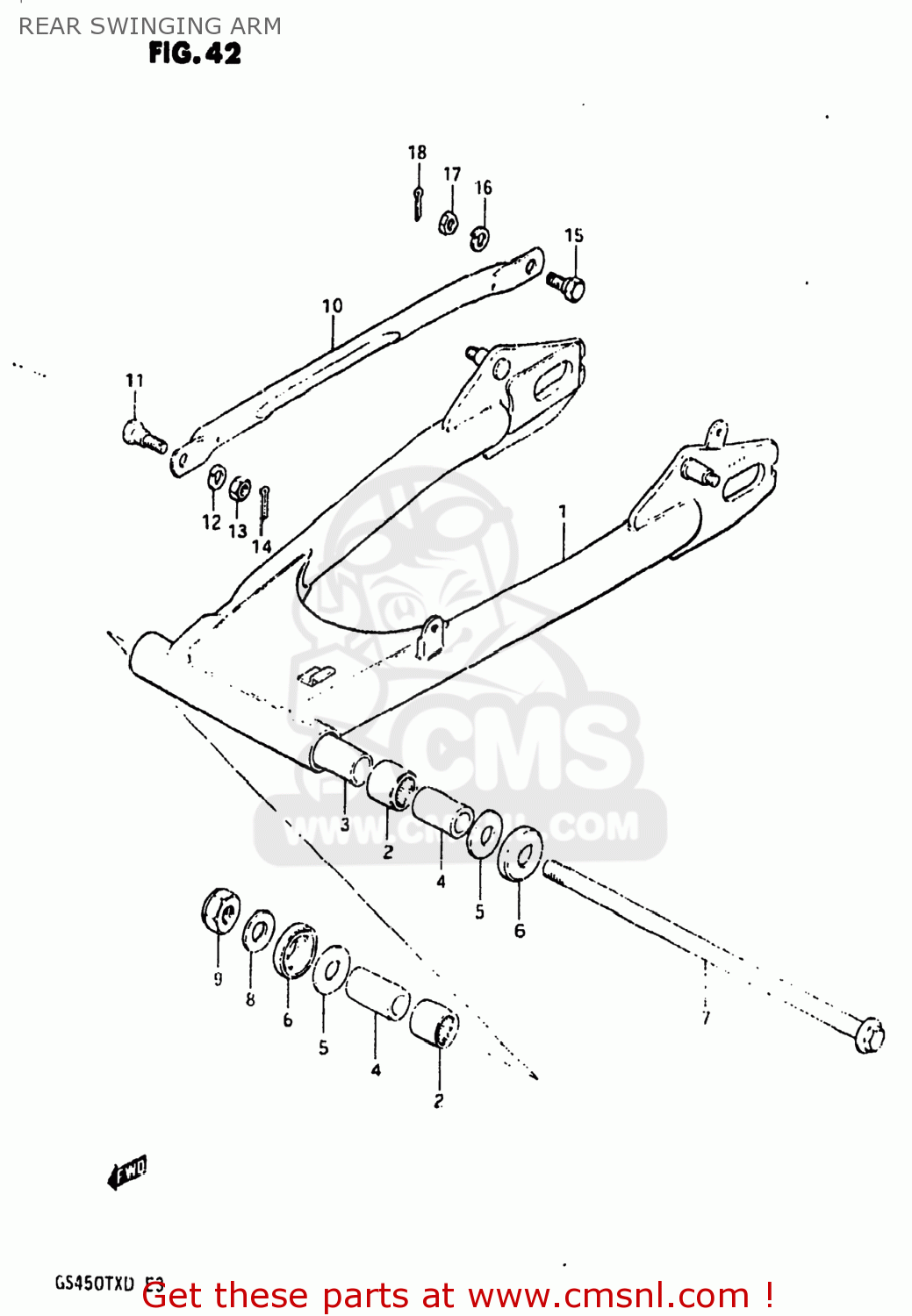

Rear swinging arm diagram GS450TX 1983 (D) USA (E03)
REAR SWINGING ARM GS450TX 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100044900019
ref: 1
ARM,REAR SWING
€ 201.00
2
0926322017
ref: 2
BEARING(22X29X30)
€ 18.50
3
6128144001
ref: 3
SPACER,SWINGINGARM CTR
€ 12.00
4
6125145001
ref: 4
SPACER,RR SWGARM PIVOT
€ 12.50
5
0916014020
ref: 5
WASHER(14.2X34X1)
€ 2.50
6
6126245002
ref: 6
CVR,RR SWGARM DUST SEAL(OD:40)
€ 4.50
7
6121144400
ref: 7
SHAFT,REAR SWING ARM
€ 20.50
8
0832211148
ref: 8
08322-01147
WASHER
€ 2.00
9
0831921148
ref: 9
08319-2114A
NUT 14MM
€ 3.00
10
6431144200019
ref: 10
LINK,REAR TORQUE
€ 13.00
11
0911110010
ref: 11
BOLT(10X24.5)
€ 5.50
12
0832121108
ref: 12
08321-01107
LOCK WASHER
€ 2.00
13
0831022108
ref: 13
08310-00107
NUT
€ 2.50
14
0411120208
ref: 14
04111-2020A
PIN 20X20
€ 1.50
15
0910110003
ref: 15
BOLT(10X31)
€ 4.00
16
0832121108
ref: 16
08321-01107
LOCK WASHER
€ 2.00
17
0831011108
ref: 17
08310-00107
NUT
€ 2.50
18
0411120208
ref: 18
04111-2020A
PIN 20X20
€ 1.50
