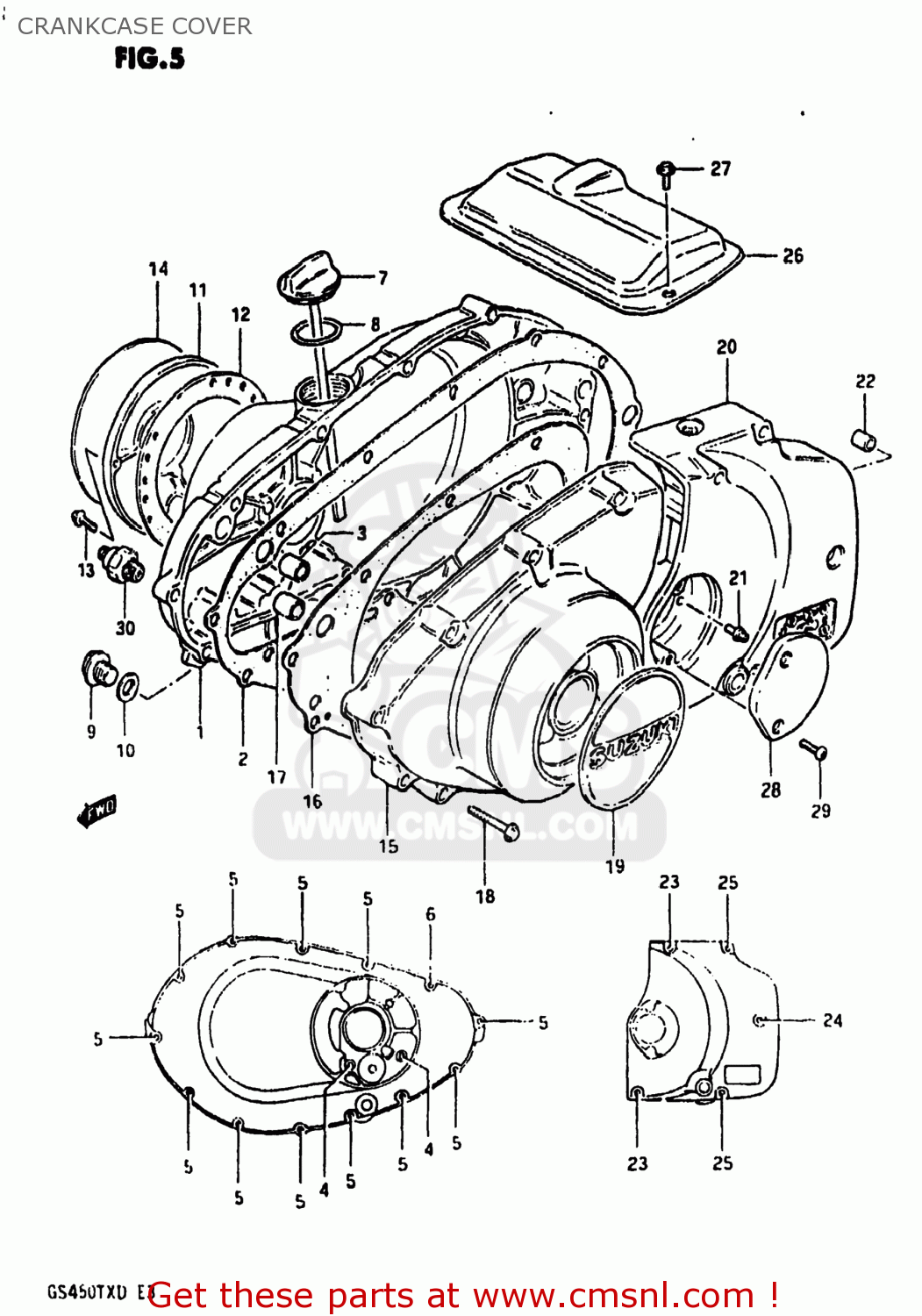

CRANKCASE COVER

ref

part #

description

quantity

1

1134144101
ref: 1

COVER,CLUTCH

€ 119.50

2

1148244100
ref: 2
11482-44110

GASKET,CLUTCH COVER (MCA)

€ 17.50

3

0920613001
ref: 3
04211-13189

PIN

€ 2.50

4

0154706558
ref: 4
01547-06557

BOLT (6X55)

€ 2.50

5

0154706358
ref: 5
01547-06357

BOLT (6X35)

€ 2.50

6

0154706258
ref: 6
01547-06257

BOLT

€ 2.50

7

1197044100
ref: 7

GAUGE,OIL LEVEL

€ 17.50

8

0928027002
ref: 8
09280-26006

O-RING

€ 3.00

9

0924714012
ref: 9
09247-14026

PLUG (14X12)

€ 3.50

10

0916814004
ref: 10

GASKET(14X19.2X2) (NAS)

€ 2.50

11

1138144101
ref: 11

COVER,CONTACT BREAKER

€ 42.00

12

1149144100
ref: 12

GASKET,CONTACT BREAKER COVER (NAS)

€ 4.50

13

0154405168
ref: 13
01547-05167

BOLT 5X16

€ 2.00

14

6823344100
ref: 14

EMBLEM,MAGNETO COVER

€ 15.50

15

1135144102
ref: 15

COVER,MAGNETO

€ 45.00

16

1148344100
ref: 16
11483-44110

GASKET,MAGNETO COVER (MCA)

€ 12.50

17

0920613001
ref: 17
04211-13189

PIN

€ 2.50

18

0154706358
ref: 18
01547-06357

BOLT (6X35)

€ 2.50

19

6823344100
ref: 19

EMBLEM,MAGNETO COVER

€ 15.50

20

1136144101
ref: 20

COVER,ENGINE SPROCKET

€ 86.00

21

0835111009
ref: 21

NIPPLE

€ 32.00

22

0421109129
ref: 22

PIN

€ 2.00

23

0154706658
ref: 23
01547-06657

BOLT (6X65)

€ 2.00

24

0154706508
ref: 24
01547-06507

BOLT (6X50)

€ 2.50

25

0154706408
ref: 25
01547-06407

BOLT (6X40)

€ 2.50

26

1138244100
ref: 26
11382-44111

COVER,STARTER MOTOR

€ 20.50

27

0154705088
ref: 27
01547-05087

BOLT

€ 2.00

28

1138744100
ref: 28

CAP,CLUTCH RELEASE ADJUST

€ 10.00

29

0213205127
ref: 29
02122-05127

SCREW 5X12

€ 2.50

30

3782033200
ref: 30
37820-33D10

SWITCH ASSEMBLY

€ 29.00
