REAR WHEEL
GS450TX 1983 (D) USA (E03)

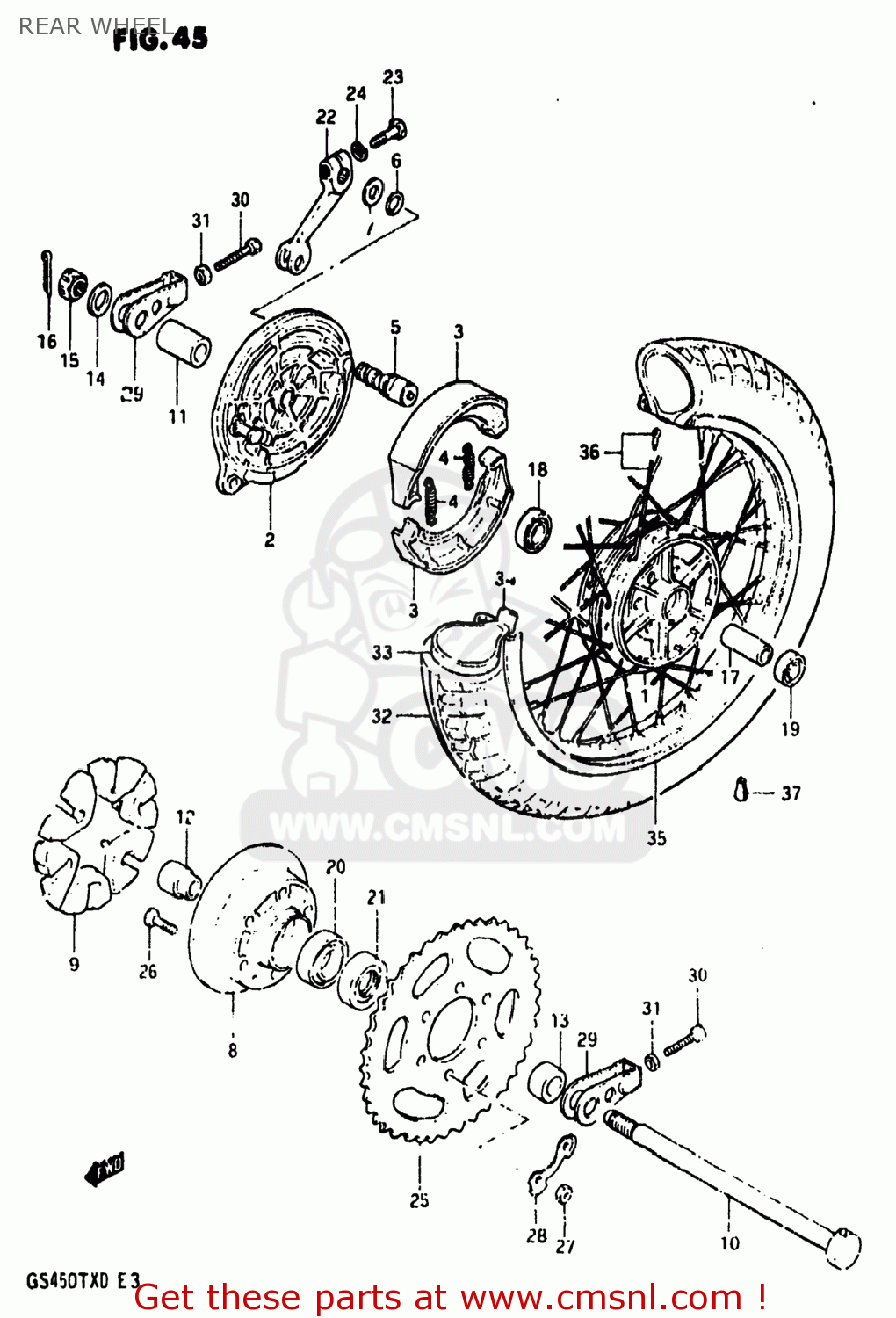

Rear wheel diagram GS450TX 1983 (D) USA (E03)
REAR WHEEL GS450TX 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411037301
ref: 1
DRUM,REAR HUB
€ 266.50
2
6421044060
ref: 2
PANEL,REAR HUB
€ 111.50
3
6441011301
ref: 3
64400-11860
SHOE,BRAKE
€ 29.50
4
5542030000
ref: 4
SPRING,BRAKE SHOE
€ 3.50
5
5444008003
ref: 5
54440-08004
CAM,FRONT BRAKE
€ 19.00
6
0928015001
ref: 6
09280-15003
O-RING,BOSS
€ 2.00
7
0916015001
ref: 7
09160-15048
WASHER (15X24X1.6)
€ 2.50
8
6461144001
ref: 8
DRUM,REAR SPROCKET MOUNT
€ 84.00
9
6465111300
ref: 9
ABSORBER,RR HUB SHOCK
€ 12.50
10
6471133000
ref: 10
64711-3300V
AXLE,REAR
€ 33.50
11
0918017043
ref: 11
SPACER(17.5X28X44.8)
€ 7.00
12
6473333000
ref: 12
64733-3300V
SPACER,REAR HUB BEARING
€ 20.00
13
0918017042
ref: 13
SPACER(17X30.5X22.3)
€ 8.50
14
0916017013
ref: 14
09160-17050
WASHER (17X30X3.2)
€ 2.00
15
0914116001
ref: 15
NUT
€ 6.50
16
0411140308
ref: 16
04111-4030A
PIN,COTTER
€ 1.50
17
0918017056
ref: 17
09180-17056-XC0
SPACER (17.6X24X57)
€ 19.00
18
0814363037
ref: 18
BEARING
€ 23.00
19
0814362037
ref: 19
BEARING
€ 18.50
20
0811362057
ref: 20
BEARING
€ 18.00
21
0928530001
ref: 21
SEAL,OIL(30.5X52X8)
€ 20.00
22
6445144400
ref: 22
LEVER,RR BRAKE CAM
€ 42.00
23
0110706258
ref: 23
01500-06257
BOLT
€ 2.00
24
0832121068
ref: 24
08321-01067
LOCK WASHER
€ 2.50
25
6451144210
ref: 25
SPROCKET,REAR (NT:43)
€ 80.50
26
0911910002
ref: 26
09105-10001
BOLT
€ 3.50
27
0914010026
ref: 27
09140-10026-XC0
NUT
€ 2.00
28
0916910006
ref: 28
WASHER
€ 4.50
29
6141044200
ref: 29
ADJUSTER,CHAIN
€ 31.00
30
0910408018
ref: 30
09104-08034
BOLT 8X50
€ 3.00
31
0831012088
ref: 31
08310-00087
NUT
€ 2.00
32
6510044310
ref: 32
TIRE
€ 0.00
33
6520044300
ref: 33
65200-49030
TUBE ASSEMBLY,WHEEL,INNER
€ 43.50
34
6526144300
ref: 34
55261-02B40
PROTECTOR,WHEEL,INNER
€ 3.50
35
6531144300
ref: 35
RIM,REAR WHEEL
€ 0.00
36
6532011405
ref: 36
SPOKE ASSY,RR
€ 52.00
37-1
5541111000
ref: 37-1
55411-26G00
BALANCER,WHEEL (B)
€ 4.50
37-2
5541211000
ref: 37-2
55413-41F00
BALANCER,WHEEL (30G)
€ 8.00
