CAM CHAIN

GS500E 1995 (S) USA (E03)

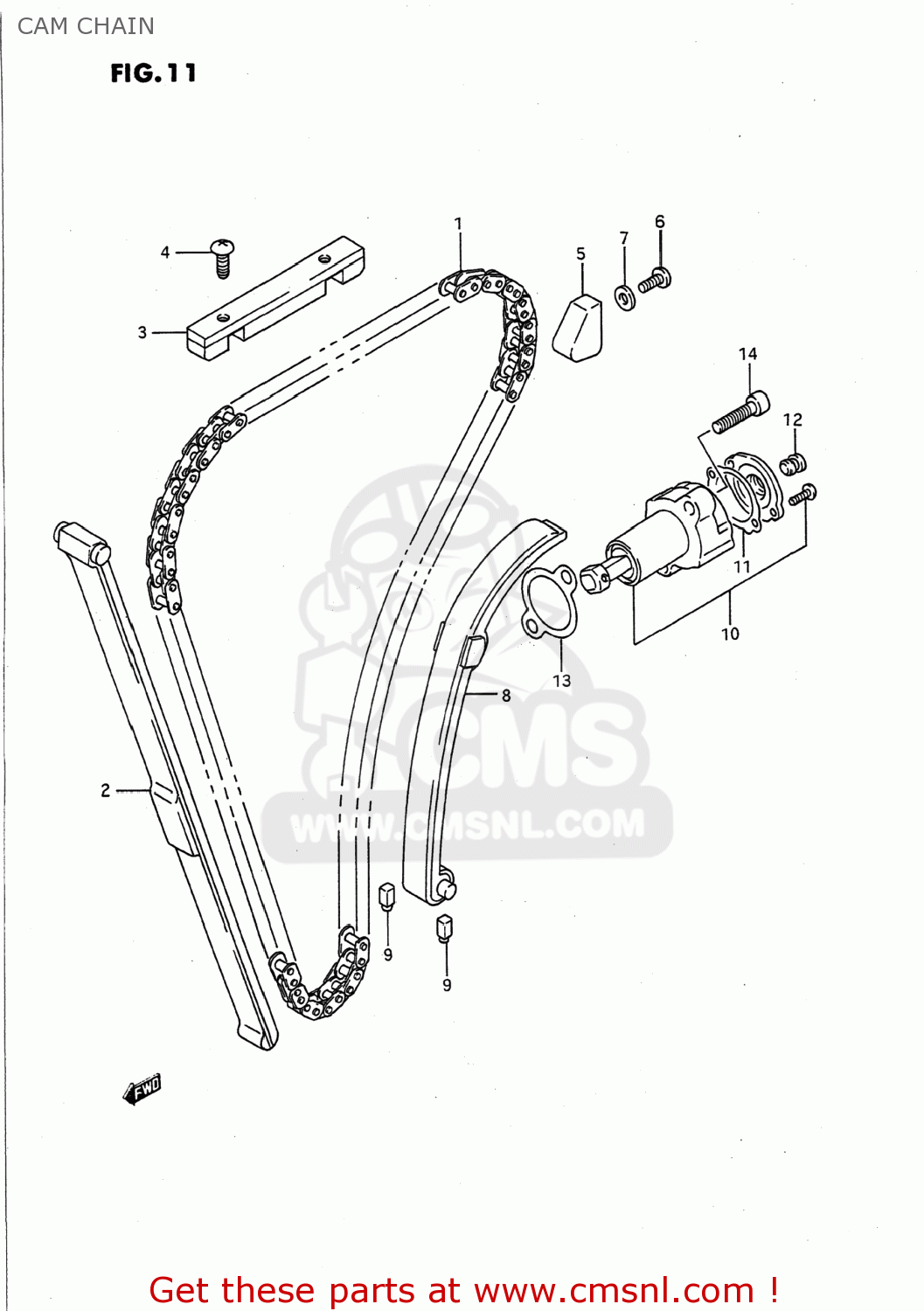

Cam chain diagram GS500E 1995 (S) USA (E03)

CAM CHAIN GS500E 1995 (S) USA (E03)
CAM CHAIN GS500E 1995 (S) USA (E03)
CAM CHAIN GS500E 1995 (S) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1276045040
ref: 1
CHAIN,CAMSHAFT DRIVE(120L)
€ 92.00

2
1277145052
ref: 2
GUIDE,CAM CHAIN NO.1
€ 26.00

3
1278249200
ref: 3
GUIDE,CAM CHAIN
€ 20.50

4-1
0211205107
ref: 4-1
SCREW
€ 1.50

4-2
0211205103
ref: 4-2

02112-0510A
SCREW
€ 1.50

5
1279145040
ref: 5
GUIDE,CAM CHAIN
€ 6.50

6-1
0151706125
ref: 6-1

01550-0612A
BOLT 6X12
€ 2.00

6-2
0155006123
ref: 6-2

01550-0612A
BOLT
€ 2.00

7
0916806023
ref: 7
GASKET(5.8X13X1.2) (NAS)
€ 2.00

8
1281001D00
ref: 8
TENSIONER,CAM CHAIN
€ 43.50

9
1281444101
ref: 9
CUSHION,CAM CHAIN TENSIONER
€ 3.00

10-1
1283001D01
ref: 10-1

12830-01D12
ADJUSTER ASSEMBLY,TENSIONER
€ 56.50

10-2
1283001D11
ref: 10-2

12830-01D12
ADJUSTER ASSEMBLY,TENSIONER
€ 56.50

11-1
1283838200
ref: 11-1

12838-38200-H17
GASKET,ADJUSTER CAP (MCA)
€ 2.00

11-2
1283838200H17
ref: 11-2
GASKET,ADJUSTER CAP (NAS)
€ 2.00

12
1283938200
ref: 12
PLUG,ADJUSTER
€ 1.50

13
1283724A10
ref: 13
GASKET,TENSIONER ADJUSTER (NAS)
€ 2.50

14-1
0711006255
ref: 14-1

07130-0625B
BOLT
€ 2.50

14-2
0713006253
ref: 14-2

07130-0625B
BOLT,CL.COVER
€ 2.50
