HEADLAMP (MODEL K/L/M/N/P)

GS500E 1995 (S) USA (E03)

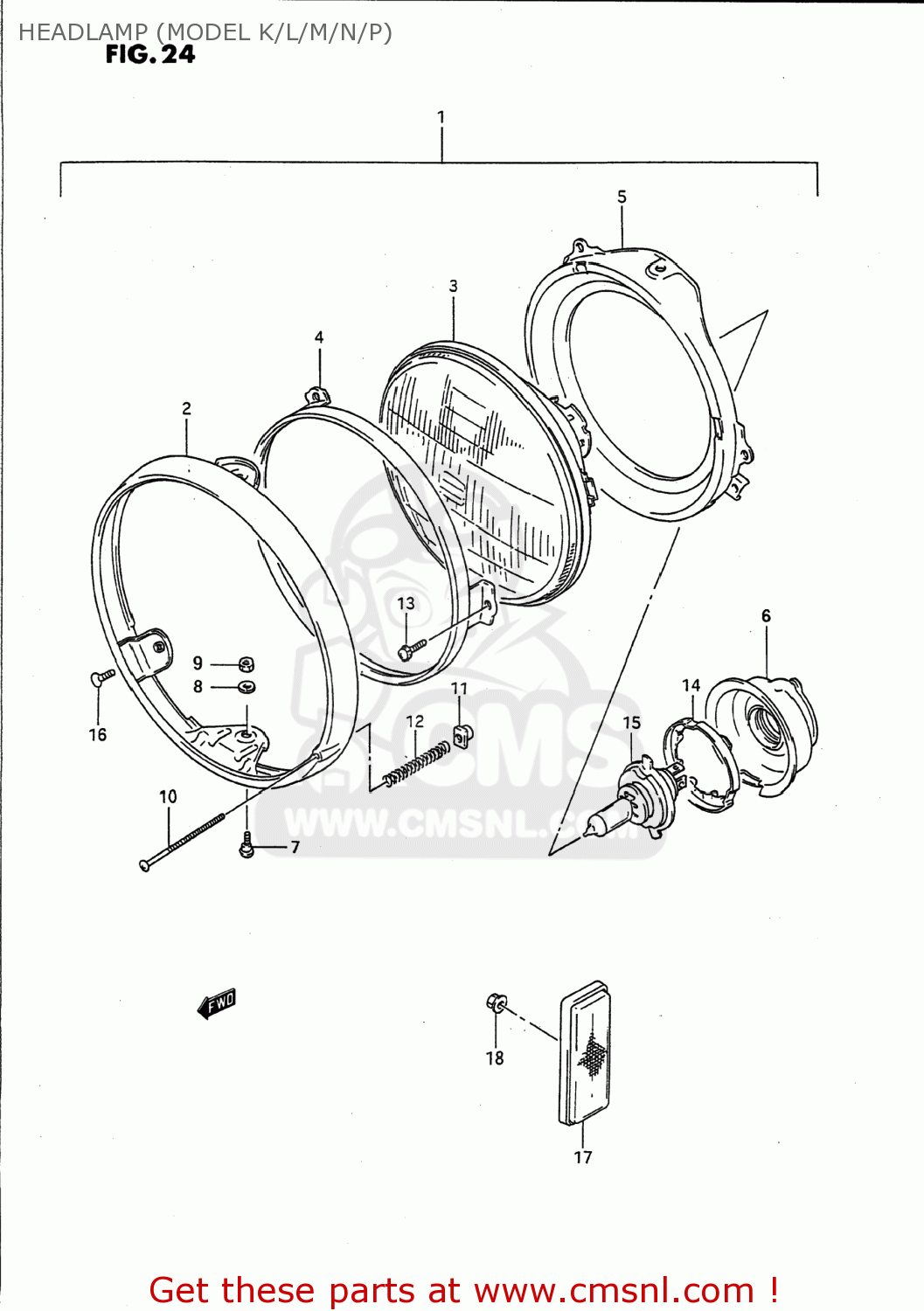

Headlamp (model k/l/m/n/p) diagram GS500E 1995 (S) USA (E03)

HEADLAMP (MODEL K/L/M/N/P) GS500E 1995 (S) USA (E03)
HEADLAMP (MODEL K/L/M/N/P) GS500E 1995 (S) USA (E03)
HEADLAMP (MODEL K/L/M/N/P) GS500E 1995 (S) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3510001D30
ref: 1
HEADLAMP ASSY
€ 232.50

2
3511101D20
ref: 2
RIM,HEADLAMP
€ 44.00

3
3512134430
ref: 3
LAMP UNIT
€ 101.50

4
3512745030
ref: 4
RETAINING RING
€ 11.00

5
3513045030
ref: 5
RING
€ 22.00

6
3517345000
ref: 6

35173-20A01
COVER,HEADLAMP SOCKET
€ 10.50

7
3518115611
ref: 7
H/LAMP LENS UNIT FITING SCRE
€ 2.00

8
0832121057
ref: 8

08321-0105A
LOCK WASHER
€ 1.50

9
0831011056
ref: 9

08310-0005A
NUT
€ 1.50

10
3515145030
ref: 10

35151-45900
SCREW,HEADLAMP ADJUST
€ 3.00

11
3515215611
ref: 11
NUT
€ 2.00

12
3515431900
ref: 12
SPRING,ADJUSTING
€ 3.00

13
0211204106
ref: 13

02112-0410A
SCREWM4X0.7X10
€ 1.00

14
3513634400
ref: 14
SETTING,BULB
€ 4.50

15
0947112060
ref: 15
BULB(12V60/55W,H4)
€ 7.00

16
0213205127
ref: 16

02122-05127
SCREW 5X12
€ 2.00

17
3595043431
ref: 17
REFLEX REFLECTOR,FR SIDE
€ 11.50

18
0831626055
ref: 18

08316-2005A
NUT
€ 1.50
