FRAME COVER (MODEL N)

GS500E 1995 (S) USA (E03)

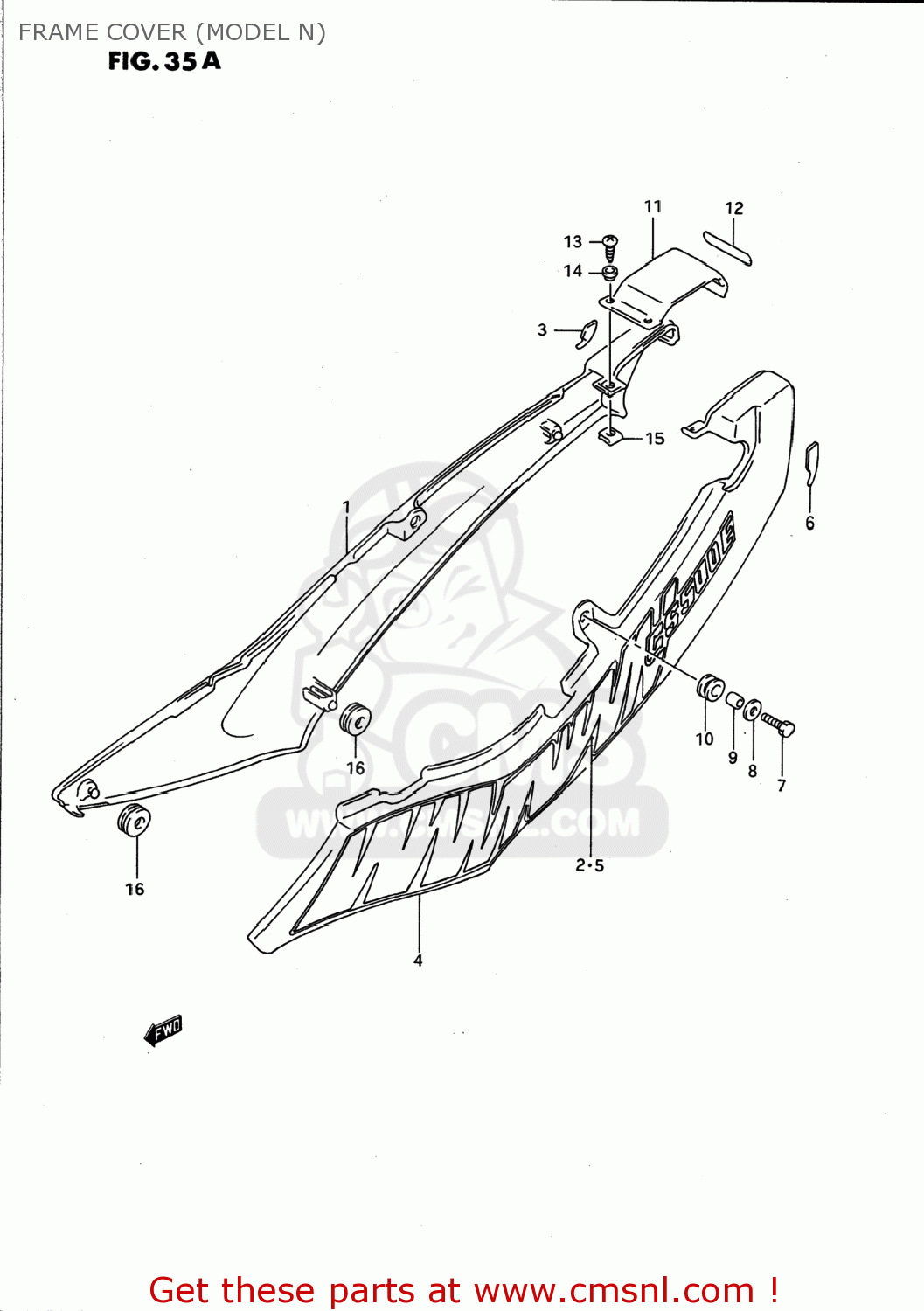

Frame cover (model n) diagram GS500E 1995 (S) USA (E03)

FRAME COVER (MODEL N) GS500E 1995 (S) USA (E03)
FRAME COVER (MODEL N) GS500E 1995 (S) USA (E03)
FRAME COVER (MODEL N) GS500E 1995 (S) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4711001D901HU
ref: 1-1
COVER COMP,FRAME,RIGHT
€ 135.00

1-2
4711001D9028V
ref: 1-2
COVER COMP,FRAME,RIGHT
€ 138.50

1-3
4711001D9033J
ref: 1-3
COVER COMP,FRAME,RIGHT
€ 150.50

2-1
6813001D70L32
ref: 2-1
TAPE SET,FRAME COVER STRIPE
€ 103.00

2-2
6813001D70L34
ref: 2-2
TAPE SET,FRAME COVER STRIPE
€ 63.00

2-3
6813001D70L33
ref: 2-3
TAPE SET,FRAME COVER STRIPE
€ 56.00

3
4711901D00
ref: 3
PROTECTOR,FRAME COVER,R
€ 5.00

4-1
4721001D901HU
ref: 4-1
COVER COMP,FRAME,LEFT
€ 138.50

4-2
4721001D9028V
ref: 4-2
COVER COMP,FRAME,LEFT
€ 0.00

4-3
4721001D9033J
ref: 4-3
COVER COMP,FRAME,LEFT
€ 134.50

5-1
6814001D70L32
ref: 5-1
TAPE SET,FRAME COVER STRIPE
€ 103.00

5-2
6814001D70L34
ref: 5-2
TAPE SET,FRAME COVER STRIPE
€ 0.00

5-3
6814001D70L33
ref: 5-3
TAPE SET,FRAME COVER STRIPE
€ 48.00

6
4721901D00
ref: 6
PROTECTOR,FRAME COVER,L
€ 5.00

7
0912806006
ref: 7

09128-06057
BOLT(6X20)
€ 1.50

8
0916006057
ref: 8

09160-06109
WASHER
€ 1.50

9
0918006011
ref: 9

09180-06263
SPACER (6.1X9X9)
€ 1.50

10
0932009016
ref: 10
CUSHION
€ 1.50

11-1
4731001D201HU
ref: 11-1
COVER,FRAME CTR
€ 40.00

11-2
4731001D2038X
ref: 11-2
COVER,FRAME,CENTER
€ 43.50

11-3
4731001D2036X
ref: 11-3

47310-01D20-33J
COVER,FRAME,CENTER
€ 40.50

12-1
6816601D000JW
ref: 12-1
EMBLEM,SUZUKI(WHITE)
€ 4.00

12-2
6816601D0013Z
ref: 12-2
EMBLEM,FRAME COVER,CENTER
€ 3.00

13
0324105125
ref: 13

03241-0512A
SCREW
€ 1.00

14
0916105017
ref: 14
WASHER(5.2X14X1.5)
€ 3.00

15
0914805013
ref: 15
NUT
€ 1.50

16
0932008018
ref: 16
CUSHION
€ 3.00
