CYLINDER HEAD

GS500E 1995 (S) USA (E03)

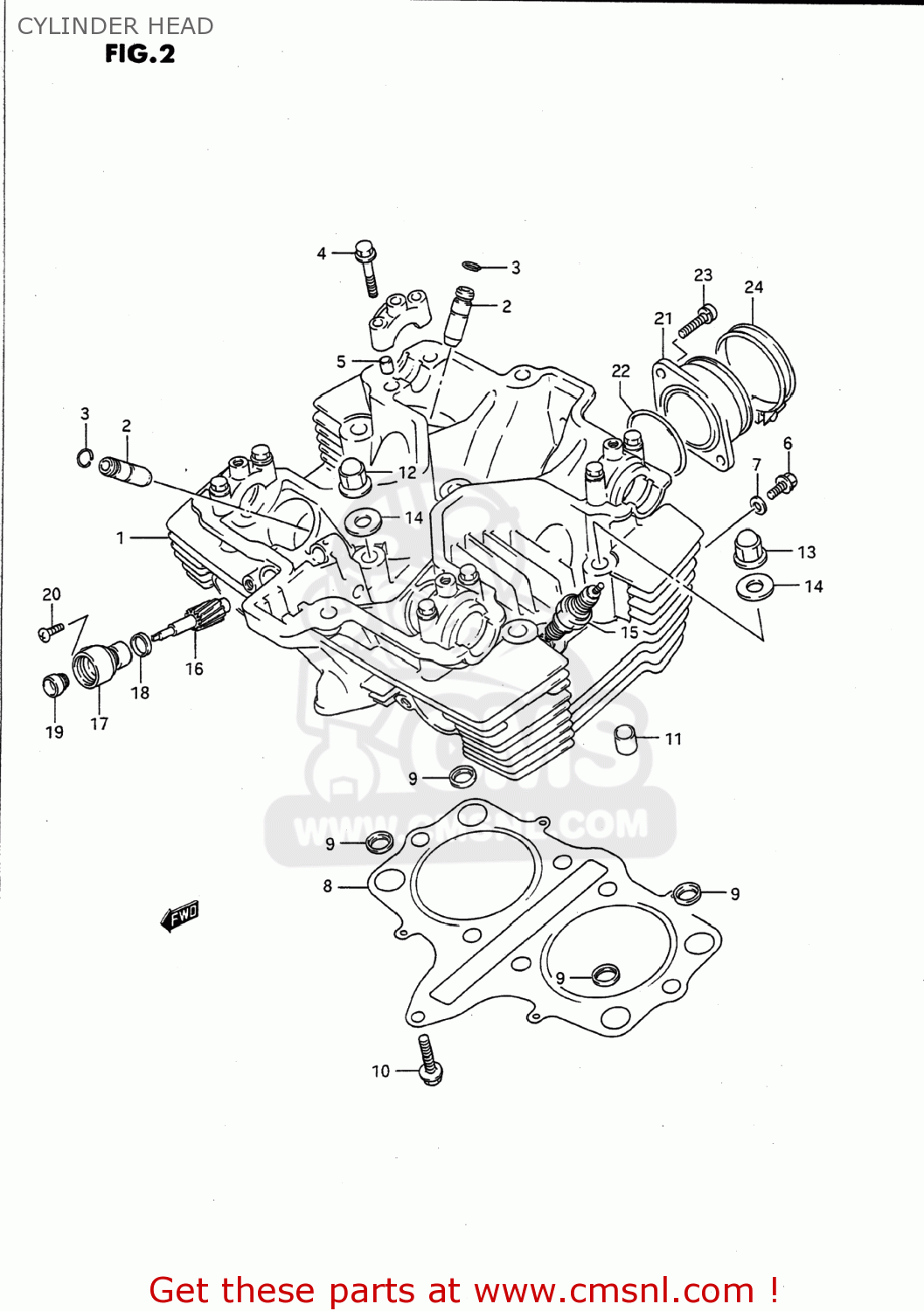

Cylinder head diagram GS500E 1995 (S) USA (E03)

CYLINDER HEAD GS500E 1995 (S) USA (E03)
CYLINDER HEAD GS500E 1995 (S) USA (E03)
CYLINDER HEAD GS500E 1995 (S) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1110001D01
ref: 1
HEAD ASSEMBLY,CYLINDER
€ 788.50

2
1111545740
ref: 2
GUIDE,INTAKE VALVE
€ 19.00

3
0938110003
ref: 3
RING,SNAP
€ 1.50

4
0910306071
ref: 4
BOLT(6X39)
€ 1.50

5
0920608001
ref: 5
PIN(6.2X8X11)
€ 1.50

6-1
0151706125
ref: 6-1

01550-0612A
BOLT 6X12
€ 2.00

6-2
0155006123
ref: 6-2

01550-0612A
BOLT
€ 2.00

7
0916806023
ref: 7
GASKET(5.8X13X1.2) (NAS)
€ 2.00

8-1
1114101D02
ref: 8-1

11141-01D11
GASKET,CYLINDER HEAD (NAS)
€ 26.50

8-2
1114101D10
ref: 8-2

11141-01D11
GASKET,CYLINDER HEAD (NAS)
€ 26.50

9
1114306B00
ref: 9
O RING,HEAD GASKET
€ 4.50

10-1
0151706305
ref: 10-1

01550-0630A
BOLT 6X30
€ 2.00

10-2
0155006303
ref: 10-2

01550-0630A
BOLT
€ 2.00

11
0421111189
ref: 11
PIN
€ 1.50

12-1
0915910026
ref: 12-1
NUT
€ 5.00

12-2
0915910069
ref: 12-2
NUT
€ 5.00

13-1
0915910033
ref: 13-1

09159-10026
NUT
€ 5.00

13-2
0915910026
ref: 13-2
NUT
€ 5.00

14-1
0916810017
ref: 14-1
GASKET(10.5X22X2) (NAS)
€ 2.50

14-2
0916810031
ref: 14-2
GASKET(10.2X20X2).3 (NAS)
€ 1.50

15-1
0948200334
ref: 15-1
PLUG,SPARK(DPR8EA-9)
€ 3.50

15-2
0948200335111
ref: 15-2

09482-00335
SPARK PLUG X24EPR-U9
€ 3.50

16
2643145002
ref: 16
GEAR,TACHOMETER DRIVEN
€ 27.50

17
2644149000
ref: 17
SLEEVE,TACHOMETER DRIVE GEAR
€ 19.50

18
2645145000A
ref: 18
SEAL,TACHOMETER DRIVEN
€ 3.50

19
0928905002
ref: 19
SEAL,OIL(5X12X8)
€ 6.00

20
0912805101
ref: 20
SCREW(5X12)
€ 1.00

21
1311001D00
ref: 21

13101-01D00
PIPE COMP,INTAKE
€ 25.00

22
0928040003
ref: 22

09280-40010
O-RING (D:2.4 ID:39.7)
€ 3.00

23-1
0211236205
ref: 23-1

02112-3620A
SCREW
€ 1.50

23-2
0211236203
ref: 23-2

02112-3620A
SCREW
€ 1.50

23-3
0211216163
ref: 23-3

02112-1616A
SCREW
€ 1.50

24-1
0940254207
ref: 24-1

09402-54208
CLAMP
€ 4.00

24-2
0940254208
ref: 24-2
CLAMP
€ 4.00
