HEADLAMP HOUSING (MODEL K/L/M/N/P)
GS500E 1995 (S) USA (E03)

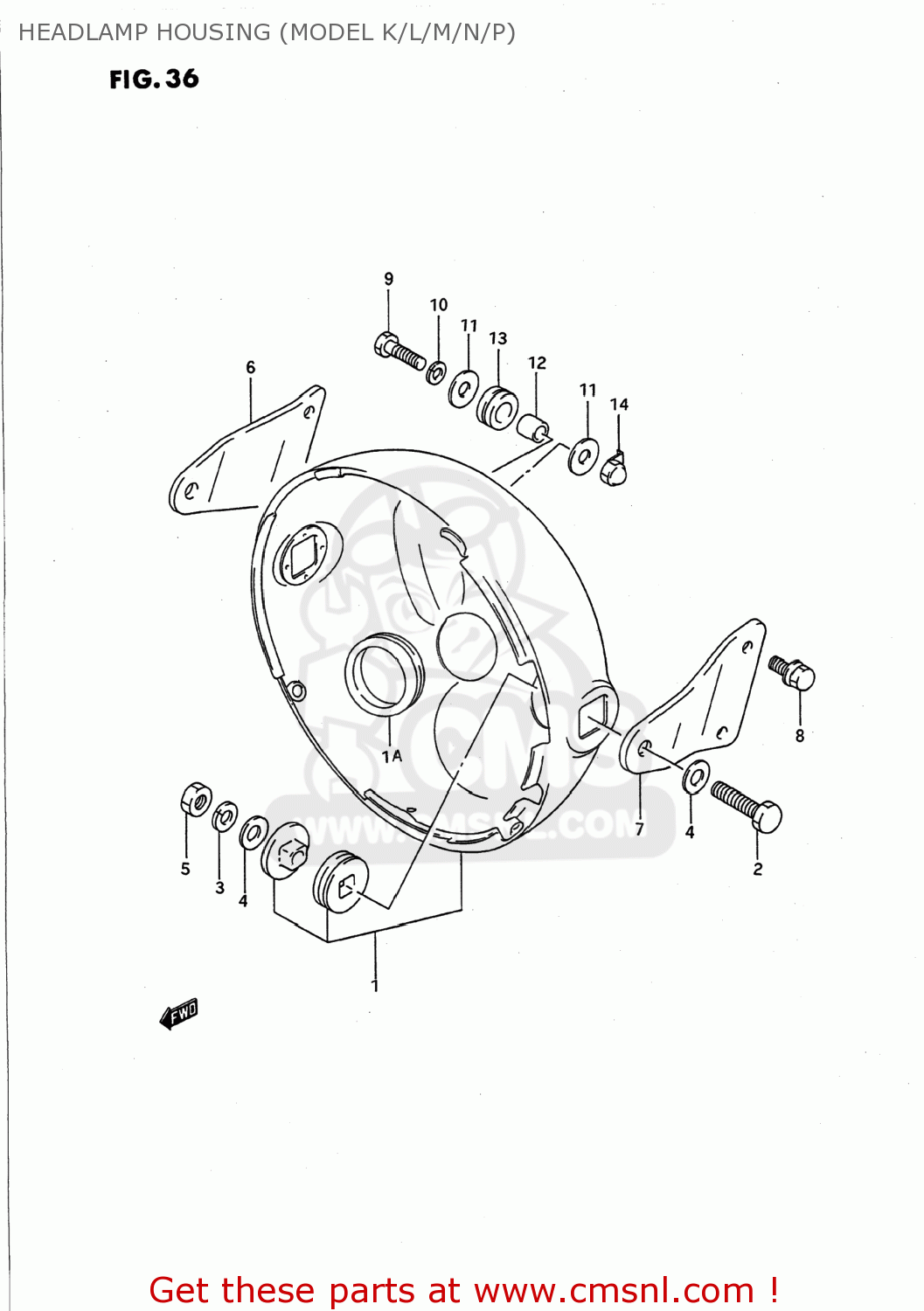

Headlamp housing (model k/l/m/n/p) diagram GS500E 1995 (S) USA (E03)
HEADLAMP HOUSING (MODEL K/L/M/N/P) GS500E 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1A
5181701D00
ref: 1A
51817-01D01
GROMMET
€ 4.50
1-1
5181001D01
ref: 1-1
HOUSING,HEADLAMP
€ 110.50
1-2
5181001D11
ref: 1-2
HOUSING,HEADLAMP
€ 124.00
1-3
5181001D30
ref: 1-3
51810-01D31
HOUSING COMP,HEADLAMP
€ 100.50
1-4
5181001D31
ref: 1-4
HOUSING,HEADLAMP
€ 100.50
2
0120408307
ref: 2
BOLT
€ 2.50
3
0832101087
ref: 3
WASHER,LOCK
€ 2.00
4
0832201087
ref: 4
WASHER
€ 2.00
5
0831000087
ref: 5
NUT
€ 2.00
6-1
5185101D00
ref: 6-1
51011-0BE00
STAY,HEADLAMP HOUSING
€ 29.00
6-2
5185101D10
ref: 6-2
51011-0BE00
STAY,HEADLAMP HOUSING
€ 29.00
6-3
5185101D11
ref: 6-3
51011-0BE00
STAY,HEADLAMP HOUSING,R
€ 29.00
7-1
5186101D00
ref: 7-1
51011-0BE00
STAY,HEADLAMP HOUSING
€ 29.00
7-2
5186101D10
ref: 7-2
51011-0BE00
STAY,HEADLAMP HOUSING
€ 29.00
7-3
5186101D11
ref: 7-3
51011-0BE00
STAY,HEADLAMP HOUSING,L
€ 29.00
8
0121406127
ref: 8
BOLT
€ 2.00
9-1
0150006257
ref: 9-1
BOLT
€ 2.00
9-2
0157006257
ref: 9-2
BOLT
€ 2.50
10
0832101067
ref: 10
WASHER,LOCK
€ 2.50
11-1
0916006020
ref: 11-1
09160-06066
WASHER
€ 2.00
11-2
0916006006
ref: 11-2
09160-06084
WASHER
€ 2.00
12
0918007004
ref: 12
SPACER(6.5X10.5X12)
€ 2.50
13
0932010015
ref: 13
CUSHION
€ 2.50
14
5181506C00
ref: 14
PLATE,HEADLAMP
€ 5.00
