CLUTCH

GS500E 1995 (S) USA (E03)

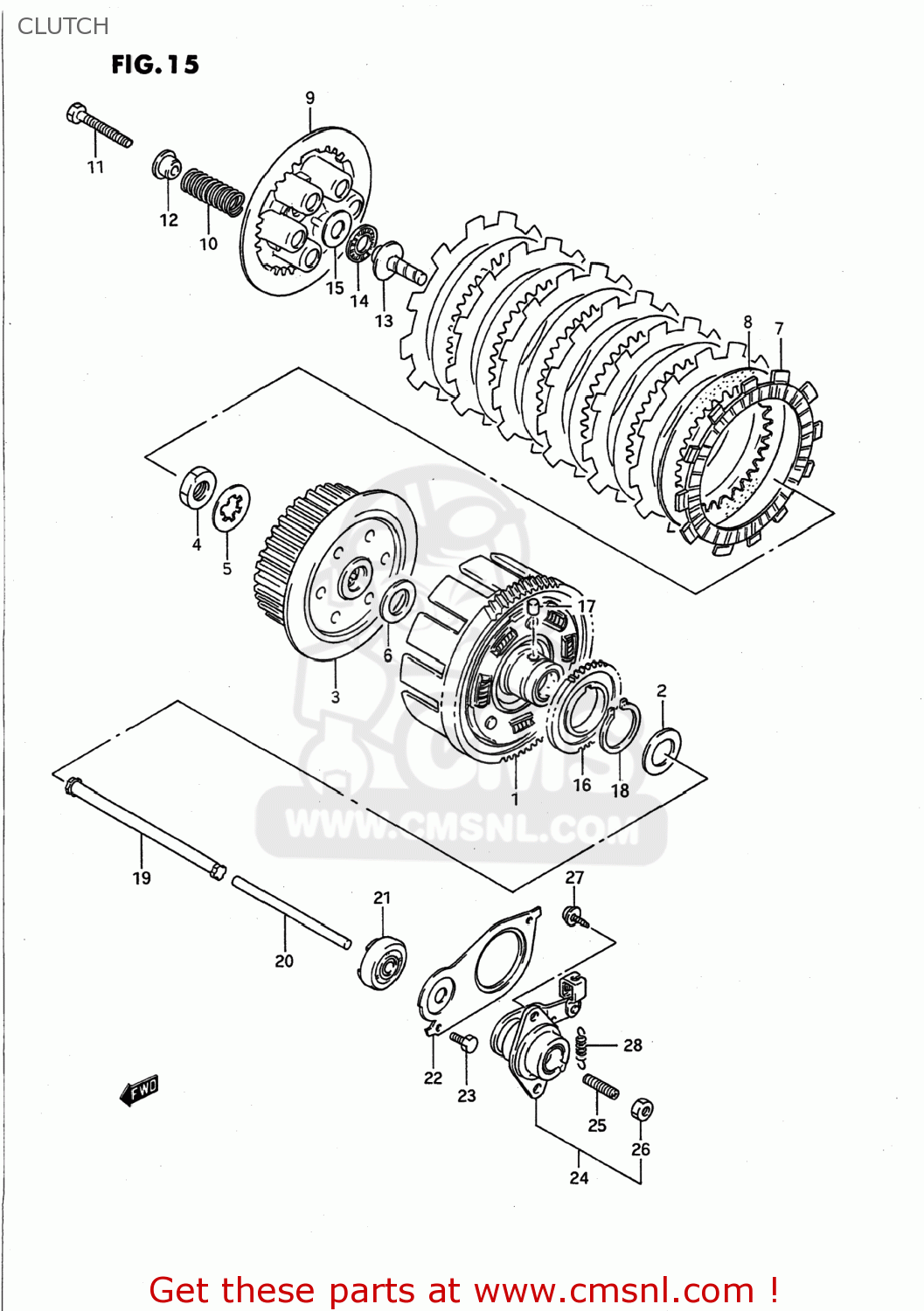

Clutch diagram GS500E 1995 (S) USA (E03)

CLUTCH GS500E 1995 (S) USA (E03)
CLUTCH GS500E 1995 (S) USA (E03)
CLUTCH GS500E 1995 (S) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
2120044101
ref: 1-1

21200-44102
GEAR ASSEMBLY,PRIMARY DRIVE
€ 243.00

1-2
2120044102
ref: 1-2
GEAR ASSY,PRI DRIVEN
€ 243.00

2
0821125381
ref: 2

09181-25223
WASHER
€ 2.50

3
2141144101
ref: 3
HUB,CLUTCH SLEEVE
€ 53.00

4
0914020002
ref: 4

09140-20001
NUT (20MM)
€ 2.50

5
0916720009
ref: 5
WASHER,LOCK
€ 2.00

6
0916020015
ref: 6
WASHER(20X44X3)
€ 3.50

7
2144137400
ref: 7
PLATE,CLUTCH DRIVE (NAS)
€ 14.50

8-1
2145145000
ref: 8-1

21451-28C31
PLATE,CLUTCH DRIVEN (NAS)
€ 7.50

8-2
2145128C30
ref: 8-2

21451-28C31
PLATE,CLUTCH DRIVEN T: (NAS)
€ 7.50

9-1
2146216501
ref: 9-1

21462-14301
DISC,CLUTCH PRESSURE
€ 40.00

9-2
2146214301
ref: 9-2
DISC,CLUTCH PRESSURE
€ 40.00

10
0944020019
ref: 10
SPRING
€ 5.00

11
0910006145
ref: 11
BOLT(6X40)
€ 1.50

12
2141401D00
ref: 12
SPACER,CLUTCH SLEEVE HUB
€ 4.50

13
2312144100
ref: 13
PIECE,CLUTCH PUSH
€ 16.00

14
0926315003
ref: 14
BEARING(15X28X2)
€ 7.00

15-1
0916015015
ref: 15-1

09160-15045
WASHER
€ 3.00

15-2
0916015045
ref: 15-2
WASHER(15.5X28X1)
€ 3.00

16-1
1632101D00
ref: 16-1

16321-01D10
GEAR,OIL PUMP DRIVE
€ 38.50

16-2
1632101D10
ref: 16-2
GEAR,OIL PUMP DRIVE(NT:39)
€ 38.50

17
0926106002
ref: 17
PIN(6X6)
€ 1.50

18
0833131383
ref: 18
CIRCLIP
€ 2.00

19
2311044111
ref: 19
ROD,PUSH,R
€ 12.50

20
2311124A01
ref: 20
ROD,CLUTCH PUSH,L
€ 10.50

21
0928506011
ref: 21
SEAL,OIL(6X34X10)
€ 6.00

22-1
2311744101
ref: 22-1

23117-44102
PLATE,CLUTCH PUSH ROD
€ 4.50

22-2
2311744102
ref: 22-2
RETAINER,PUSH ROD OIL SEAL
€ 4.50

23-1
0110706127
ref: 23-1

01500-06127
BOLT
€ 1.50

23-2
0150006123
ref: 23-2

01500-0612A
BOLT
€ 2.00

24
2320001D00
ref: 24
SCREW ASSY,CLUTCH RELEASE
€ 57.00

25
0913406010
ref: 25
SCREW(6X25)
€ 2.50

26
0831022067
ref: 26

08310-00067
NUT 6MM
€ 1.50

27-1
0311116168
ref: 27-1

03141-06163
SCREW
€ 1.50

27-2
0314106163
ref: 27-2
SCREW 6X16
€ 1.50

28
0944308001
ref: 28
SPRING
€ 1.50
