SPEEDOMETER - TACHOMETER

GS500E 1995 (S) USA (E03)

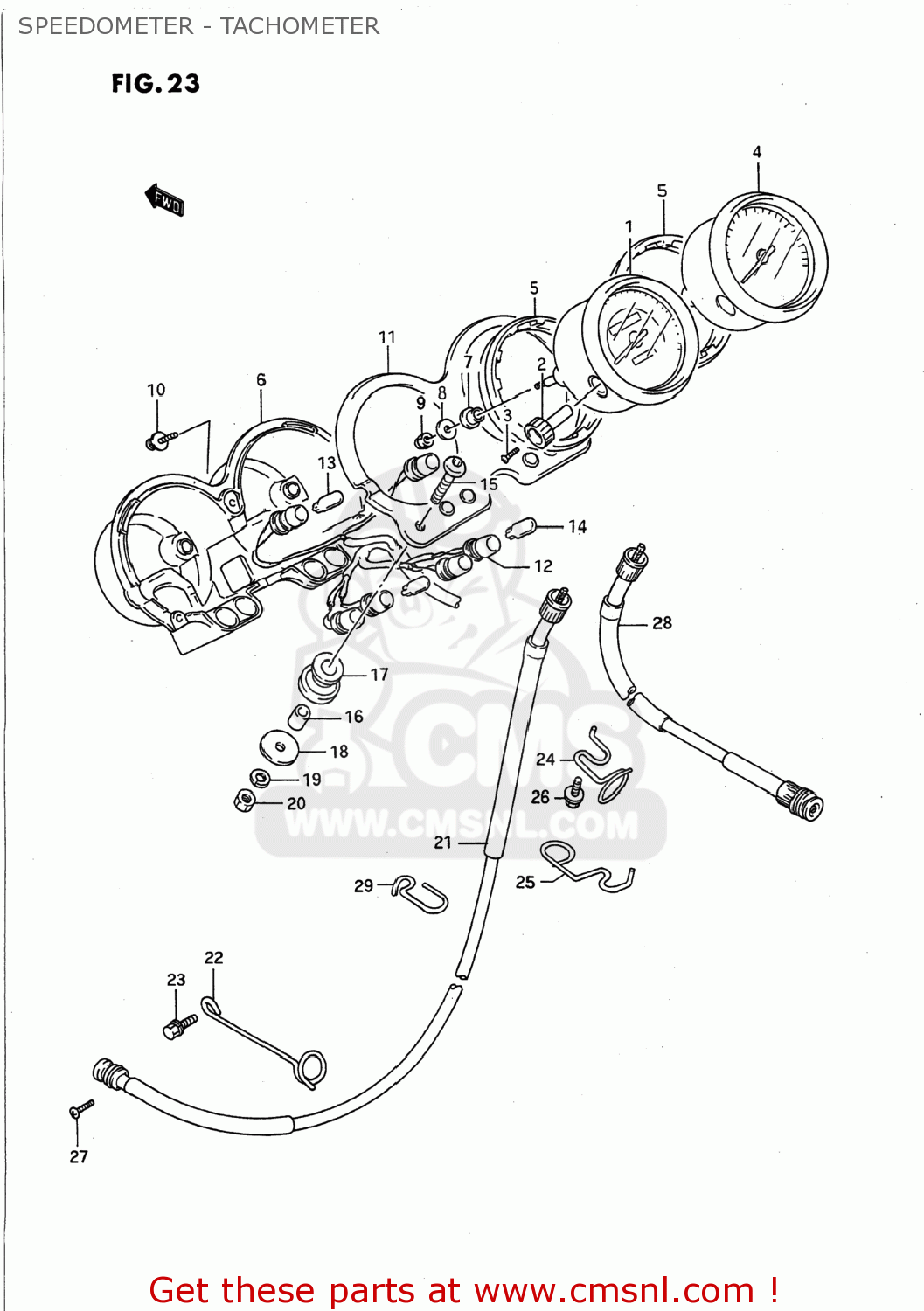

Speedometer - tachometer diagram GS500E 1995 (S) USA (E03)

SPEEDOMETER - TACHOMETER GS500E 1995 (S) USA (E03)
SPEEDOMETER - TACHOMETER GS500E 1995 (S) USA (E03)
SPEEDOMETER - TACHOMETER GS500E 1995 (S) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3411001D30
ref: 1
SPEEDOMETER(MILE/KILO)
€ 340.50

2-1
3412401D20
ref: 2-1

34124-30B00
KNOB
€ 6.00

2-2
3412430B00
ref: 2-2
KNOB,TRIP
€ 6.00

3-1
3498113A00
ref: 3-1

09139-02003
ROTOR,SPEED
€ 1.50

3-2
0913902003
ref: 3-2
SCREW(2X6)
€ 1.50

4
3421001D20
ref: 4
TACHOMETER
€ 307.50

5
3428801D20
ref: 5
DAMPER
€ 5.50

6
3419301D20
ref: 6
COVER
€ 54.50

7
3418901D20
ref: 7
CUSHION
€ 4.00

8-1
3418101D20
ref: 8-1

09160-05037
WASHER,METER
€ 1.50

8-2
0916005037
ref: 8-2
WASHER(5.5X16X1.2)
€ 1.50

9-1
0831311055
ref: 9-1

08313-1005B
NUT
€ 2.00

9-2
0831311057
ref: 9-2

08313-1005A
NUT
€ 1.50

9-3
3418501D20
ref: 9-3

08313-1005A
NUT
€ 1.50

9-4
0831310057
ref: 9-4

08313-1005A
NUT
€ 1.50

10-1
0211274085
ref: 10-1

02112-7408B
SCREW
€ 2.00

10-2
0211274088
ref: 10-2

02112-7408B
SCREW
€ 2.00

10-3
3414901D20
ref: 10-3

02112-3408A
SCREW
€ 1.50

10-4
0211234083
ref: 10-4

02112-3408A
SCREW
€ 1.50

11
3495001D30
ref: 11
BRACKET,METER
€ 138.00

12
3417001D20
ref: 12
SOCKET
€ 57.50

13
0947112028
ref: 13
BULB(12V3.4W,T10)
€ 1.00

14
0947112077
ref: 14
BULB(12V1.7W,T10,WB121)
€ 1.00

15
0910706003
ref: 15
BOLT(6X30)
€ 2.50

16
0918006209
ref: 16

09180-06294
SPACER (6.1X10X15.7)
€ 3.00

17
3495631001
ref: 17
CUSHION,METER BRACKET
€ 3.50

18
0916006030
ref: 18

09160-06136
WASHER (6.5X29X1.6)
€ 1.50

19-1
0832121066
ref: 19-1

08321-0106A
WASHER,LOCK
€ 1.50

19-2
0832101063
ref: 19-2

08321-0106A
LOCK WASHER
€ 1.50

20-1
0831012066
ref: 20-1

08310-0006A
NUT
€ 1.50

20-2
0831000063
ref: 20-2

08310-0006A
NUT 6MM
€ 1.50

21-1
3491001D00
ref: 21-1

34910-01D02
CABLE ASSEMBLY,SPEEDOMETER
€ 20.00

21-2
3491001D02
ref: 21-2
CABLE ASSY,SPEEDOMETER
€ 20.00

22
3493845100
ref: 22
CLAMP,SPEEDOMETER CABLE
€ 3.00

23-1
0111406168
ref: 23-1

01550-06167
BOLT
€ 2.00

23-2
0155006163
ref: 23-2

01550-0616A
BOLT
€ 2.00

24
3493801D00
ref: 24

34938-01D01
GUIDE,SPEEDOMETER CABLE
€ 5.50

25
3493801D01
ref: 25
GUIDE,SPEEDOMETER CABLE NO.2
€ 5.50

26-1
0151706125
ref: 26-1

01550-0612A
BOLT 6X12
€ 2.00

26-2
0155006123
ref: 26-2

01550-0612A
BOLT
€ 2.00

27-1
0211205164
ref: 27-1
SCREW
€ 1.50

27-2
0211205163
ref: 27-2

02112-0516A
SCREW
€ 1.50

28-1
3494001D01
ref: 28-1

34940-01D02
CABLE ASSEMBLY,TACHOMETER
€ 40.00

28-2
3494001D02
ref: 28-2
CABLE ASSY,TACHOMETER
€ 40.00

29
3493801D10
ref: 29
GUIDE,SPEEDOMETER CABLE NO.3
€ 4.00
