HANDLE LEVER (MODEL K)
GS500E 1995 (S) USA (E03)

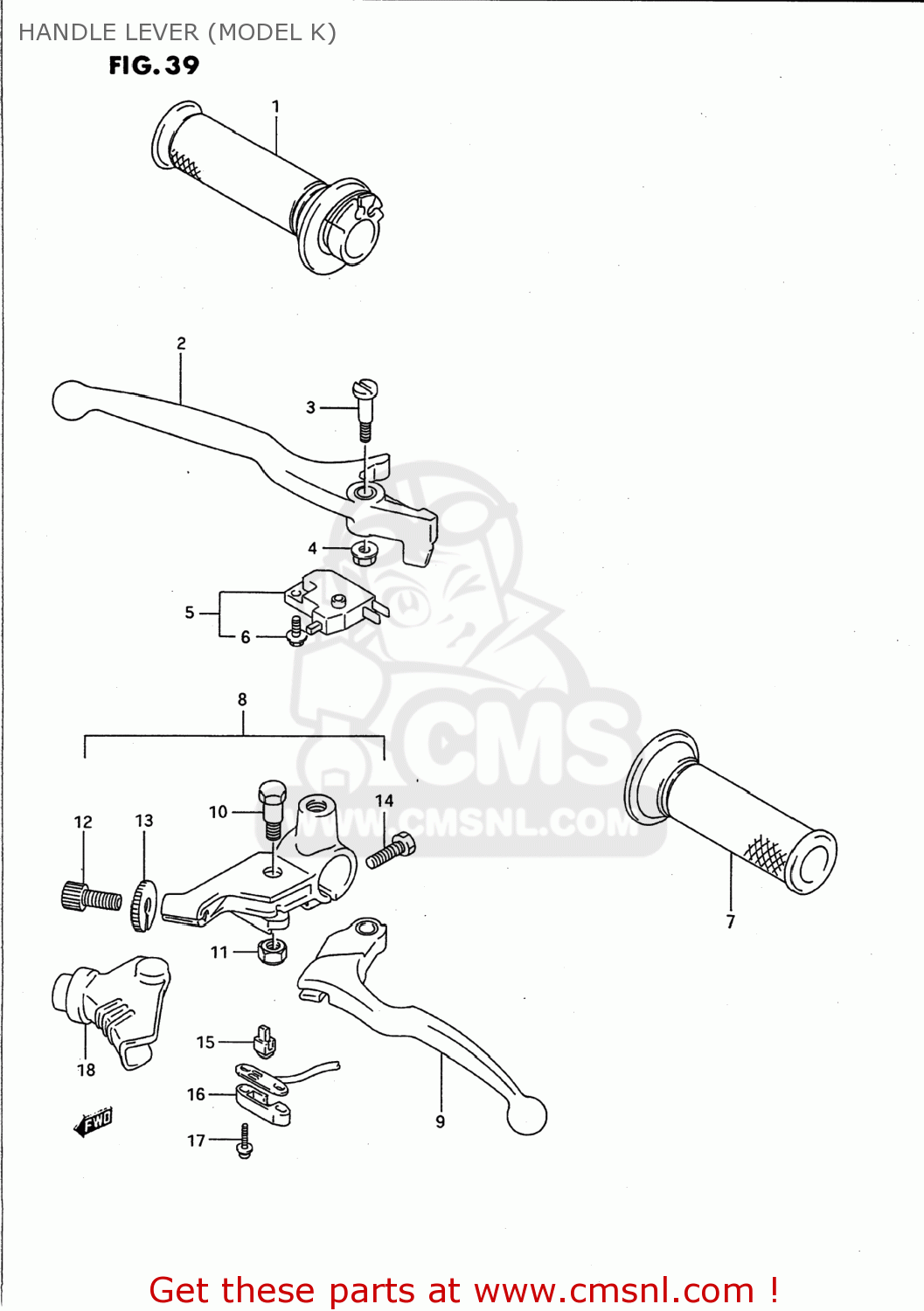

Handle lever (model k) diagram GS500E 1995 (S) USA (E03)
HANDLE LEVER (MODEL K) GS500E 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711005C01
ref: 1
GRIP,THROTTLE
€ 30.50
2
5742001D00
ref: 2
LEVER,BRAKE
€ 25.00
3
5743117C00
ref: 3
BOLT,LEVER PIVOT
€ 8.00
4
0831616064
ref: 4
08316-1006B
NUT 6MM
€ 2.50
5
5746017C00
ref: 5
57460-17C01
SWITCH ASSEMBLY,STOP
€ 32.50
6
5746517C00
ref: 6
SCREW
€ 1.50
7
5721105C00
ref: 7
GRIP,L
€ 21.00
8
5750033430
ref: 8
CLUTCH LEVER & SWITCH ASSY
€ 51.50
9
5762033410
ref: 9
LEVER,CLUTCH
€ 28.50
10
5743133450
ref: 10
57531-14A00
BOLT,LEVER
€ 8.50
11
0831921065
ref: 11
08319-2106B
NUT
€ 2.50
12
5744111010
ref: 12
ADJUSTER,CABLE
€ 8.00
13
5744211010
ref: 13
NUT,CABLE ADJUSTER
€ 4.00
14
0110706205
ref: 14
01500-0620A
BOLT
€ 2.00
15
5746518601
ref: 15
CONTACT,SWITCH
€ 4.50
16
5748133010
ref: 16
COVER,FR BK TERMINAL BASE
€ 19.50
17
5748449110
ref: 17
SCREW
€ 1.50
18
5766133400
ref: 18
COVER,CLUTCH LEVER
€ 7.50
