CRANKCASE COVER

GS500E 1999 (X) USA CANADA (E03) (E28)

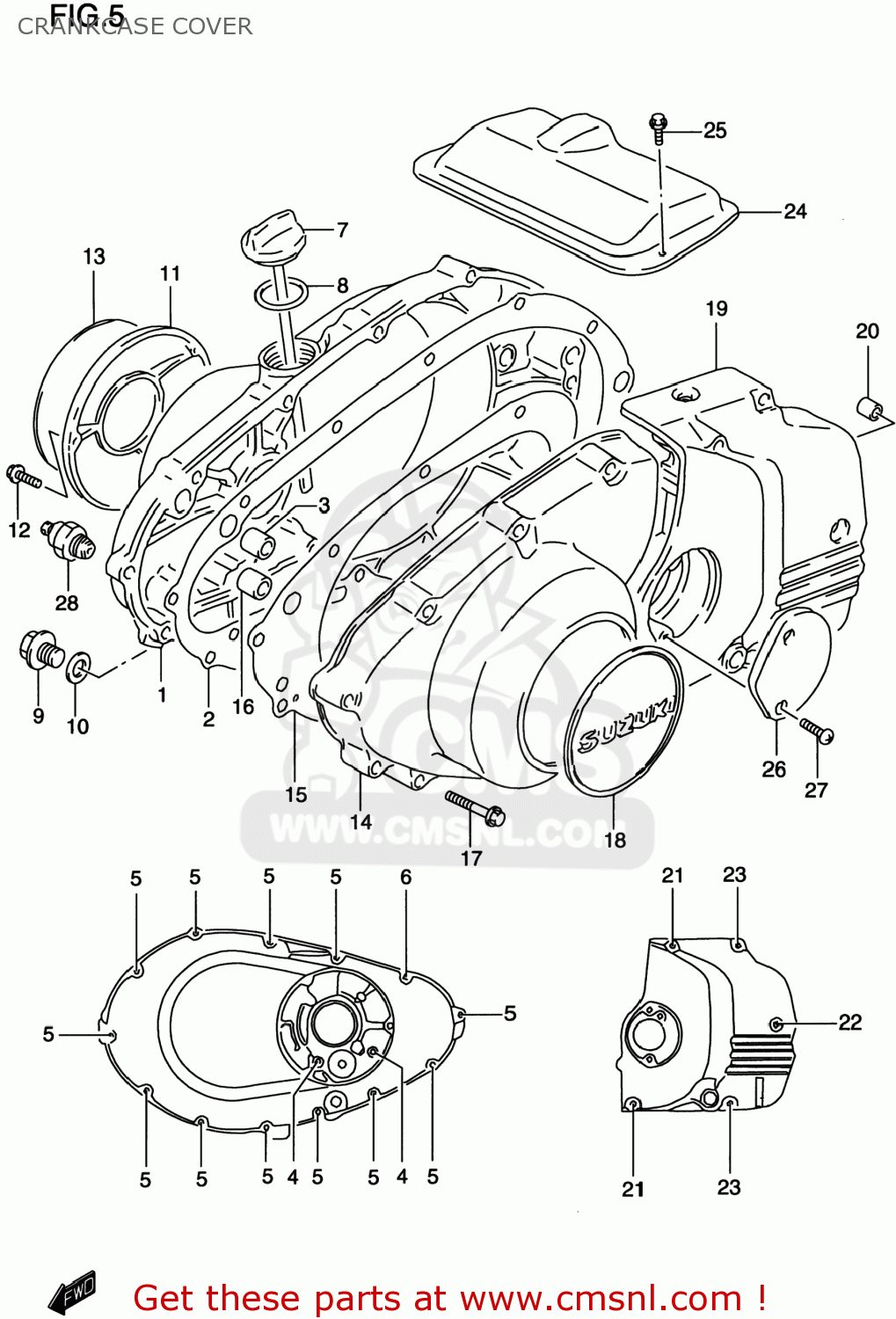

Crankcase cover diagram GS500E 1999 (X) USA CANADA (E03) (E28)

CRANKCASE COVER GS500E 1999 (X) USA CANADA (E03) (E28)
CRANKCASE COVER GS500E 1999 (X) USA CANADA (E03) (E28)
CRANKCASE COVER GS500E 1999 (X) USA CANADA (E03) (E28)
prices are in EUR
ref
part #
description
quantity
1
1134101D10
ref: 1
COVER,CLUTCH
1134101D10
€ 148.50
2
1148244110
ref: 2
GASKET,CLUTCH COVER (NAS)
1148244110
€ 17.50
3
0421113189
ref: 3
PIN
0421113189
€ 2.50
4
0154706557
ref: 4
BOLT
0154706557
€ 2.50
5
0154706357
ref: 5
BOLT
0154706357
€ 2.50
6
0154706257
ref: 6
BOLT
0154706257
€ 2.50
7
1197044110
ref: 7
GAUGE,OIL LEVEL
1197044110
€ 20.50
8
0928026006
ref: 8
O RING(D:3.1,ID:26.4)
0928026006
€ 3.00
9
0924714012
ref: 9
09247-14026
PLUG (14X12)
0924714012
€ 3.50
10
0916814002
ref: 10
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
11
1138101D10
ref: 11
COVER,CONTACT BREAKER
1138101D10
€ 41.00
12
0154705167
ref: 12
BOLT
0154705167
€ 2.00
13
6823301D00
ref: 13
EMBLEM,CONTACT BREAKER COVER
6823301D00
€ 21.00
14
1135101D10
ref: 14
COVER,MAGNETO
1135101D10
€ 150.00
15
1148344110
ref: 15
GASKET,MAGNETO COVER (NAS)
1148344110
€ 12.50
16
0421113189
ref: 16
PIN
0421113189
€ 2.50
17
0154706357
ref: 17
BOLT
0154706357
€ 2.50
18
6823301D00
ref: 18
EMBLEM,CONTACT BREAKER COVER
6823301D00
€ 21.00
19
1136101D10
ref: 19
COVER,ENGINE SPROCKET
€ 110.00
20
0421109129
ref: 20
PIN
0421109129
€ 2.00
21
0154706657
ref: 21
BOLT
0154706657
€ 2.00
22
0154706507
ref: 22
BOLT
0154706507
€ 2.50
23
0154706407
ref: 23
BOLT
0154706407
€ 2.50
24
1138244111
ref: 24
COVER,STARTER MOTOR
1138244111
€ 20.50
25
0154705083
ref: 25
01547-0508B
BOLT
0154705083
€ 2.50
26
1138701D10
ref: 26
CAP,CLUTCH RELEASE ADJUST
1138701D10
€ 30.50
27
0212205127
ref: 27
SCREW
0212205127
€ 2.50
28
3782033D00
ref: 28
37820-33D10
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
