SIGNAL GENERATOR

GS500E 1999 (X) USA CANADA (E03) (E28)

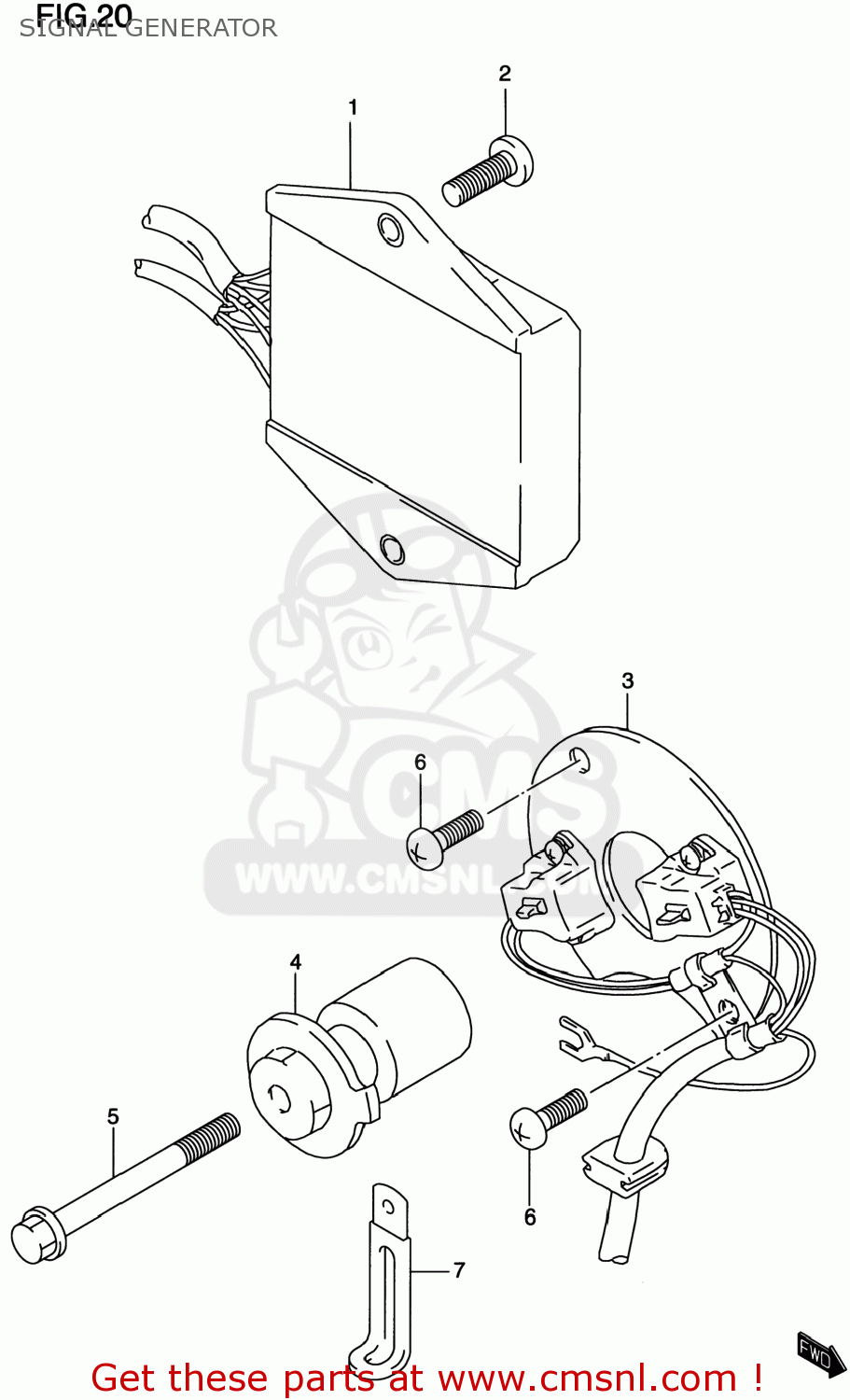

Signal generator diagram GS500E 1999 (X) USA CANADA (E03) (E28)

prices are in EUR

ref

part #

description

quantity

1-1

3290001D20
ref: 1-1

IGNITOR ASSY

€ 487.50

1-2

3290001D10
ref: 1-2

IGNITER ASSEMBLY

€ 369.50

0214206163
ref: 2
02142-0616A

SCREW

€ 2.50

3311044420
ref: 3

SIGNAL GENERATOR ASSY

€ 292.50

4-1

3312001D00
ref: 4-1

ROTOR,SIGNAL

€ 90.50

4-2

3312001D10
ref: 4-2

ROTOR,SIGNAL

€ 68.50

0910306064
ref: 5

BOLT(6X60)

€ 2.50

0211205103
ref: 6
02112-0510A

SCREW

€ 2.00

7-1

0940406429
ref: 7-1

CLAMP(L:45)

€ 2.50

7-2

0940406432
ref: 7-2

CLAMP(L:65)

€ 2.50

all assemblies
