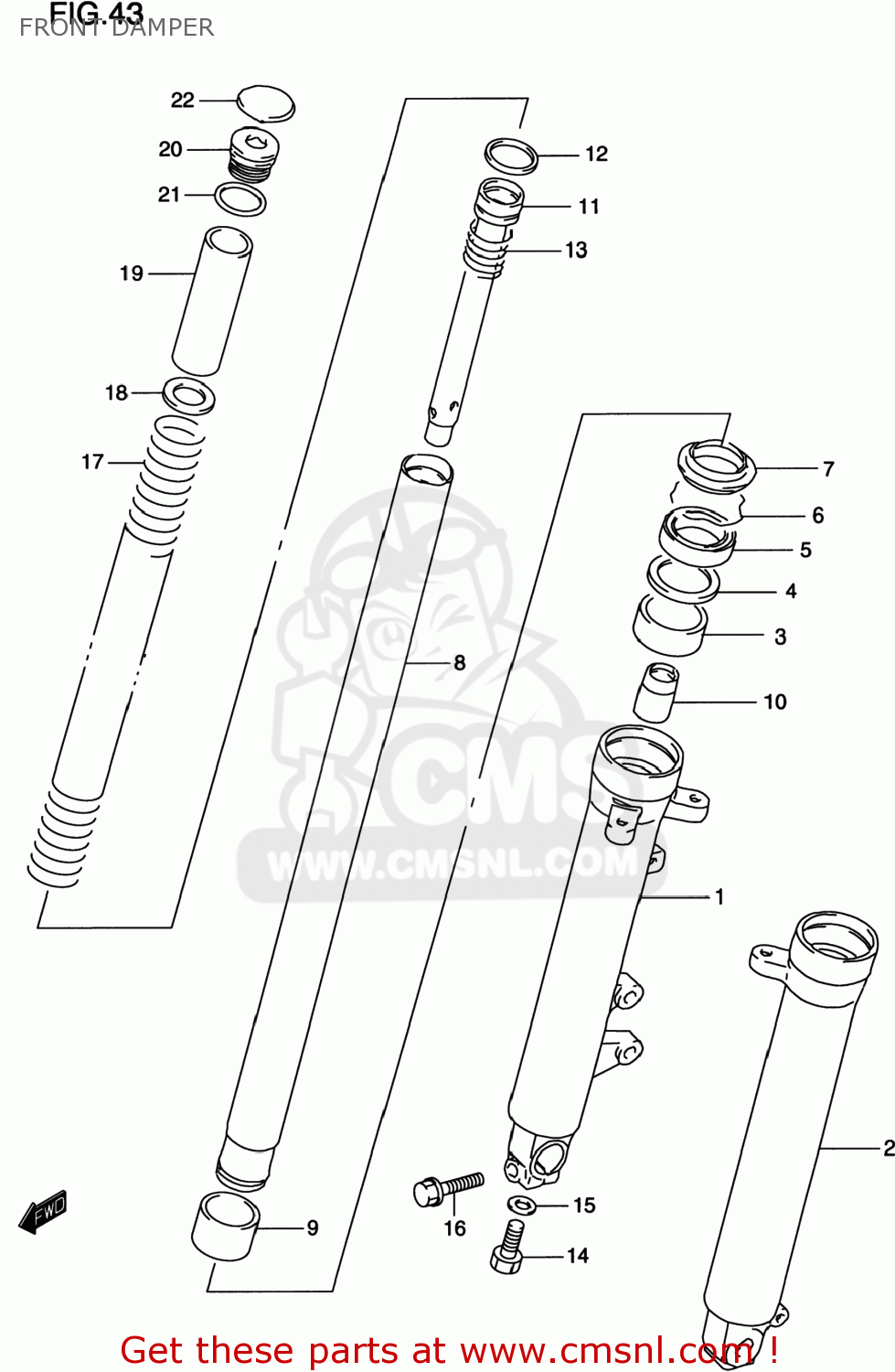

FRONT DAMPER

ref

part #

description

quantity

5110301D9013L
ref:

DAMPER ASSY,FR FORK,R

€ 287.00

5110301D9013L
ref:

DAMPER ASSY,FR FORK,R

€ 287.00

5110401D9013L
ref:

DAMPER ASSY,FR FORK,L

€ 692.50

5110401D9013L
ref:

DAMPER ASSY,FR FORK,L

€ 692.50

5110301D901UF
ref:

DAMPER ASSY,FR FORK,R

€ 415.00

5110301D901UF
ref:

DAMPER ASSY,FR FORK,R

€ 415.00

5110401D901UF
ref:

DAMPER ASSY,FR FORK,L

€ 415.00

5110401D901UF
ref:

DAMPER ASSY,FR FORK,L

€ 415.00

5110301D311UF
ref:

DAMPER ASSEMBLY,FRONT FORK

€ 345.50

5110301D311UF
ref:

DAMPER ASSEMBLY,FRONT FORK

€ 345.50

5110401D301UF
ref:

DAMPER ASSY,FR FORK,L

€ 388.00

5110401D301UF
ref:

DAMPER ASSY,FR FORK,L

€ 388.00

1-1

5113001D0113L
ref: 1-1

TUBE,OUTER,RIGHT (SILVER)

€ 239.50

2-1

5114001D0013L
ref: 2-1

TUBE,OUTER,L(SILVER)

€ 245.00

2-2

5113001D011UF
ref: 2-2

TUBE,OUTER,R

€ 304.50

2-2

5114001D001UF
ref: 2-2

TUBE,OUTER,L

€ 302.00

3

5116701D00
ref: 3

METAL,SLIDE

€ 10.50

4

5115849500
ref: 4

WASHER

€ 4.00

5

5115308C20
ref: 5

SEAL,OIL

€ 16.50

6

5115640301
ref: 6

RING,STOPPER

€ 4.50

7

5117308C20
ref: 7

SEAL,DUST

€ 15.00

8

5111001D00
ref: 8

TUBE,INNER

€ 372.00

9

5112101D00
ref: 9

PISTON

€ 11.50

10

5119501D00
ref: 10

PIECE,OIL LOCK

€ 16.50

11

5114601D00
ref: 11

CYLINDER

€ 102.50

12

5119613A10
ref: 12

RING,PISTON

€ 7.00

13

5117701D00
ref: 13

SPRING,REBOUND

€ 8.00

14

5114716510
ref: 14

BOLT,FORK CYLINDER(10X25)

€ 3.50

15

5114841310
ref: 15

GASKET (NAS)

€ 2.50

16

0155008407
ref: 16

BOLT

€ 3.50

17

5117101D00
ref: 17

SPRING

€ 64.00

18

5117201D00
ref: 18

WASHER

€ 5.00

19

5117601D00
ref: 19

SPACER

€ 11.50

20

5135101D30
ref: 20

BOLT,FORK

€ 37.00

21

5111740300
ref: 21

O RING

€ 2.50

22

5118930520
ref: 22

CAP,FR FORK

€ 11.50

all assemblies
