HEADLAMP
GS500E 1999 (X) USA CANADA (E03) (E28)

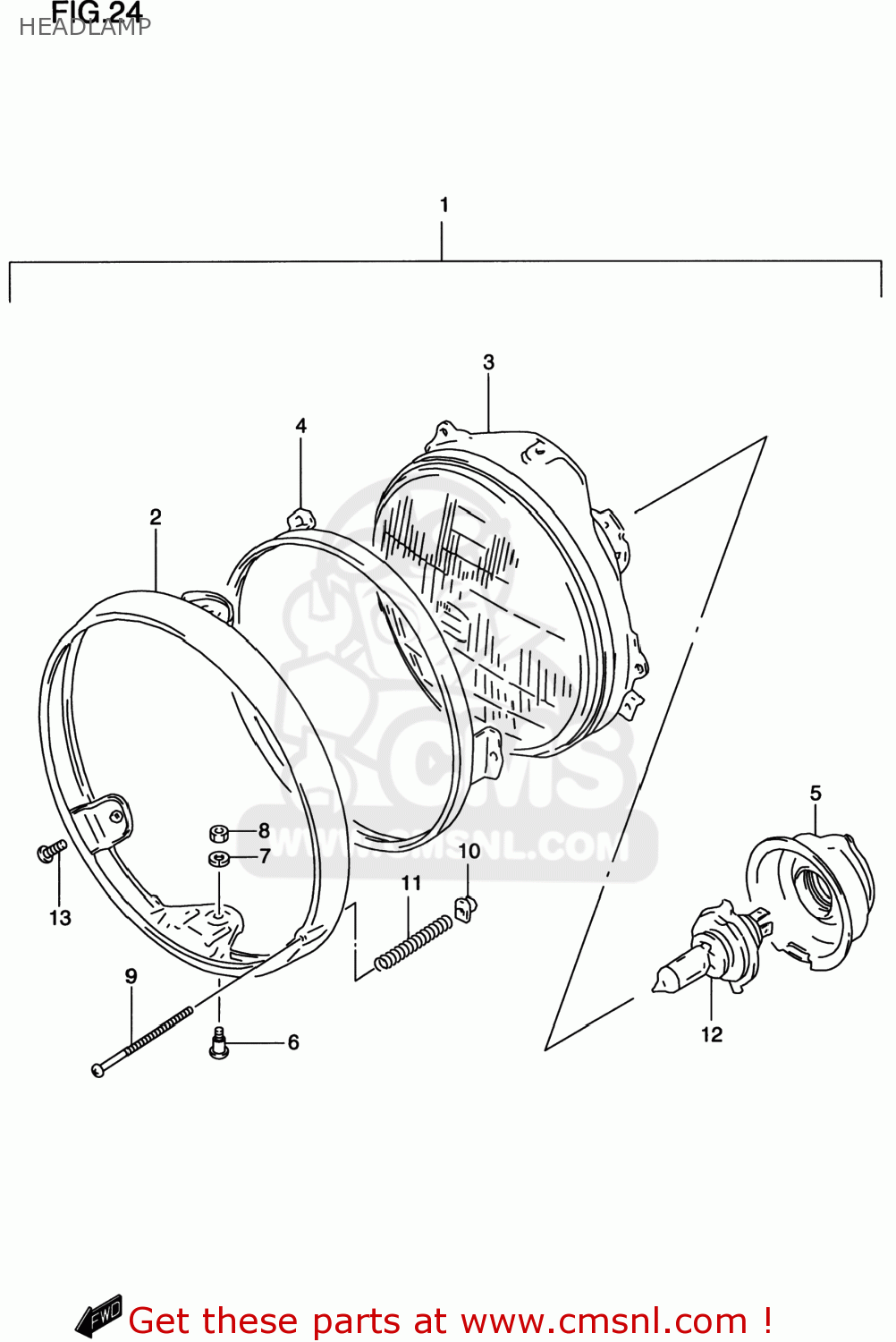

Headlamp diagram GS500E 1999 (X) USA CANADA (E03) (E28)
HEADLAMP GS500E 1999 (X) USA CANADA (E03) (E28)
×
prices are in EUR
ref
part #
description
quantity
1
3510010D70999
ref: 1
HEADLAMP ASSY
€ 244.00
2
3511101D20
ref: 2
RIM,HEADLAMP
€ 55.50
3
3512110D30
ref: 3
LAMP UNIT
€ 113.00
4
3512710D20
ref: 4
RING
€ 22.00
5
3517320A01
ref: 5
COVER,SOCKET
€ 14.50
6
3518115611
ref: 6
H/LAMP LENS UNIT FITING SCRE
€ 3.00
7
0832101057
ref: 7
08321-0105A
WASHER,LOCK
€ 2.00
8
0831000043
ref: 8
08310-0004A
NUT
€ 2.00
9
3515145900
ref: 9
SCREW
€ 4.00
10
3515215611
ref: 10
NUT
€ 3.50
11
3515431900
ref: 11
SPRING,ADJUSTING
€ 3.50
12
0947112060
ref: 12
BULB(12V60/55W,H4)
€ 8.00
13-1
0212205127
ref: 13-1
SCREW
€ 2.50
13-2
0912605003
ref: 13-2
SCREW(5X12)
€ 2.50
