CUSHION LEVER
GS500E 1999 (X) USA CANADA (E03) (E28)

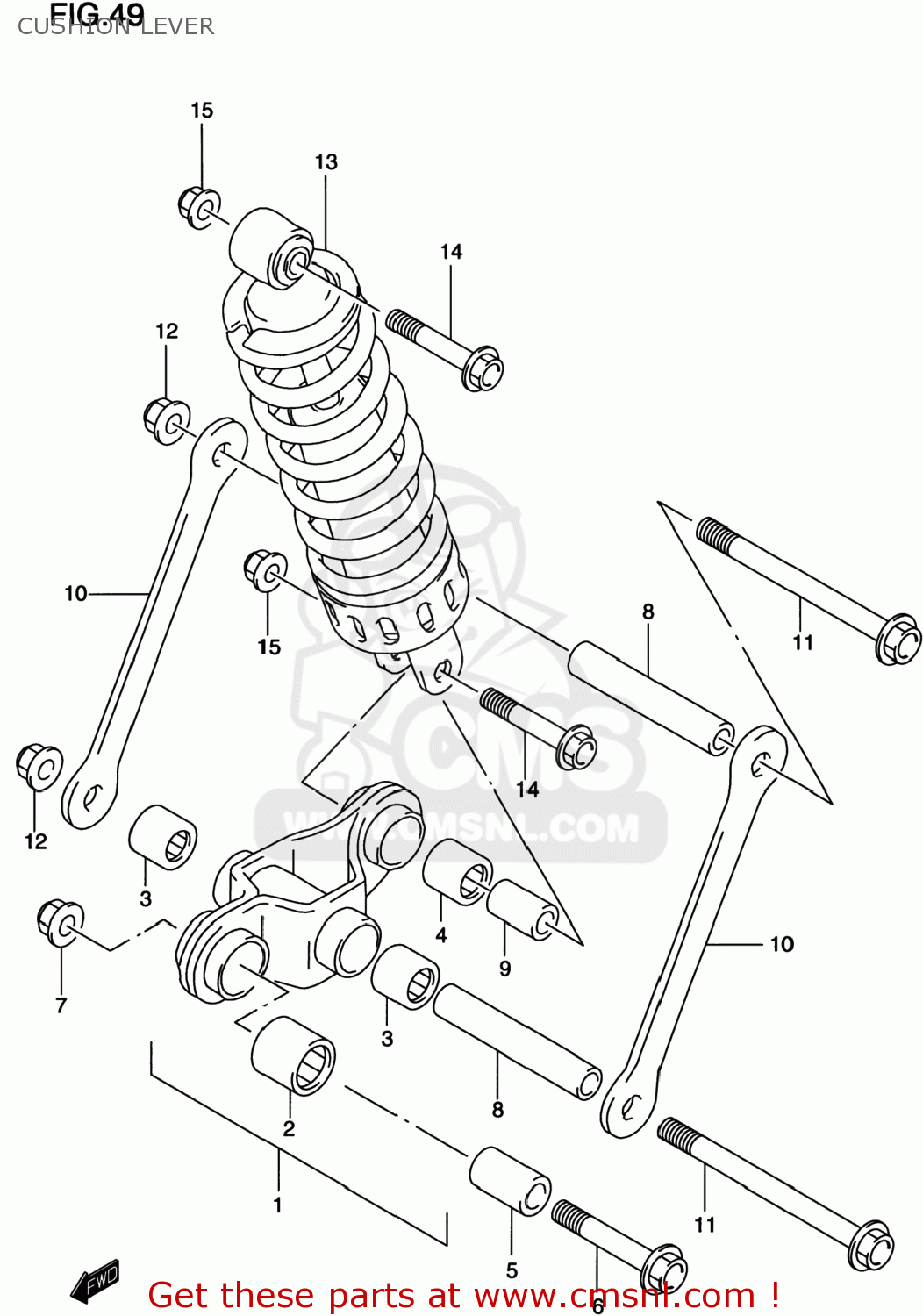

Cushion lever diagram GS500E 1999 (X) USA CANADA (E03) (E28)
CUSHION LEVER GS500E 1999 (X) USA CANADA (E03) (E28)
×
prices are in EUR
ref
part #
description
quantity
1
6260101821
ref: 1
LEVER SET,RR CUSHION
€ 193.00
2
0926320064
ref: 2
BEARING(20X27X26)
€ 20.00
3
0926317037
ref: 3
BEARING(17X24X25)
€ 19.00
4
0926317034
ref: 4
BEARING(17X24X26)
€ 21.50
5
6268401D00
ref: 5
SPACER,RR CUSHION LEVER FR
€ 17.00
6
0910312042
ref: 6
BOLT(12X57)
€ 6.00
7
0831931128
ref: 7
08319-3112A
NUT 12MM
€ 4.00
8
0918012128
ref: 8
09180-12125
SPACER (12X17X89)
€ 22.00
9
6268440A10
ref: 9
SPACER,RR CUSHION LEVER
€ 11.50
10
6264101D02
ref: 10
ROD,RR CUSHION LEVER
€ 22.00
11
0910312041
ref: 11
BOLT(12X118)
€ 11.50
12
0831931128
ref: 12
08319-3112A
NUT 12MM
€ 4.00
13
6210001D10
ref: 13
ABSORBER ASSY,RR SHOCK
€ 341.50
14
0910310213
ref: 14
BOLT(10X52)
€ 4.00
15
0831931107
ref: 15
NUT
€ 3.00
