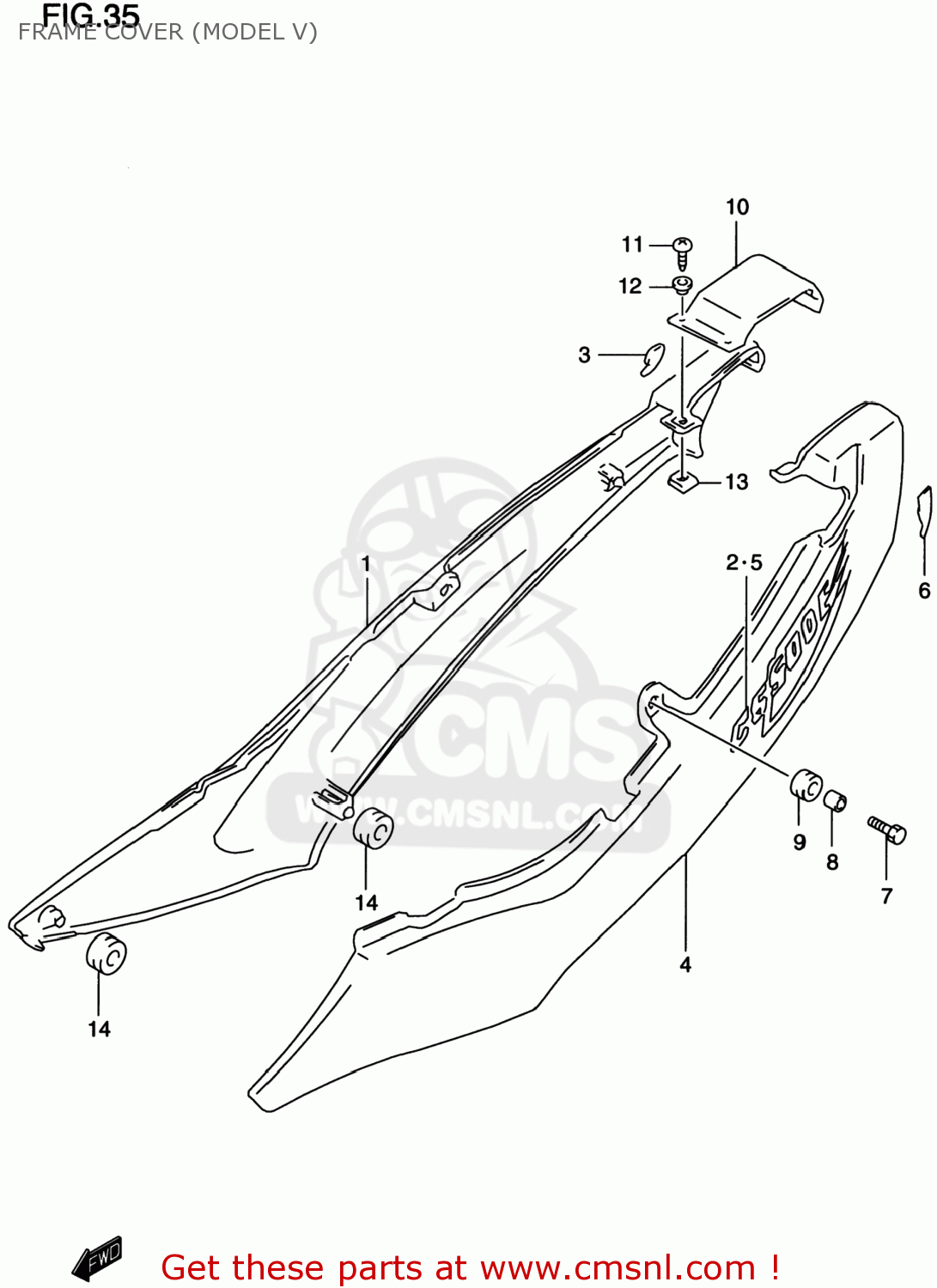

FRAME COVER (MODEL V)

ref

part #

description

quantity

1-1

4711001DF01LF
ref: 1-1

COVER,FRAME,R(BLUE)

€ 225.50

1-2

4711001DF033J
ref: 1-2

COVER COMP,FRAME,RIGHT

€ 232.50

2-1

6813501D10Y1S
ref: 2-1

TAPE,FRAME COVER,RIGHT

€ 36.50

2-2

6813501D10Y1P
ref: 2-2

TAPE,FRAME COVER,R

€ 37.00

3

4711901D00
ref: 3

PROTECTOR,FRAME COVER,R

€ 7.00

4-1

4721001DF01LF
ref: 4-1

COVER,FRAME,L(BLUE)

€ 225.50

4-2

4721001DF033J
ref: 4-2

COVER COMP,FRAME,LEFT

€ 207.50

5-1

6814501D10Y1S
ref: 5-1

TAPE,FRAME COVER,L

€ 37.00

5-2

6814501D10Y1P
ref: 5-2

TAPE,FRAME COVER,L

€ 37.00

6

4721901D00
ref: 6

PROTECTOR,FRAME COVER,L

€ 7.00

7

0911606010
ref: 7

BOLT(6X20)

€ 2.00

8

0918006263
ref: 8

SPACER(6.5X9X9)

€ 2.00

9

0932009016
ref: 9

CUSHION

€ 2.50

10-1

4721501D001LF
ref: 10-1
47215-01D00

COVER,FRAME,CENTER

€ 38.50

10-2

4721501D0033J
ref: 10-2

COVER,FRAME CTR

€ 36.50

11

0324205123
ref: 11
03241-0512A

SCREW

€ 1.50

12

0916105017
ref: 12

WASHER(5.2X14X1.5)

€ 3.00

13

0914805004
ref: 13
09148-05013

NUT

€ 1.50

14

0932008018
ref: 14

CUSHION

€ 4.00
