FOOTREST
GS500E 1999 (X) USA CANADA (E03) (E28)

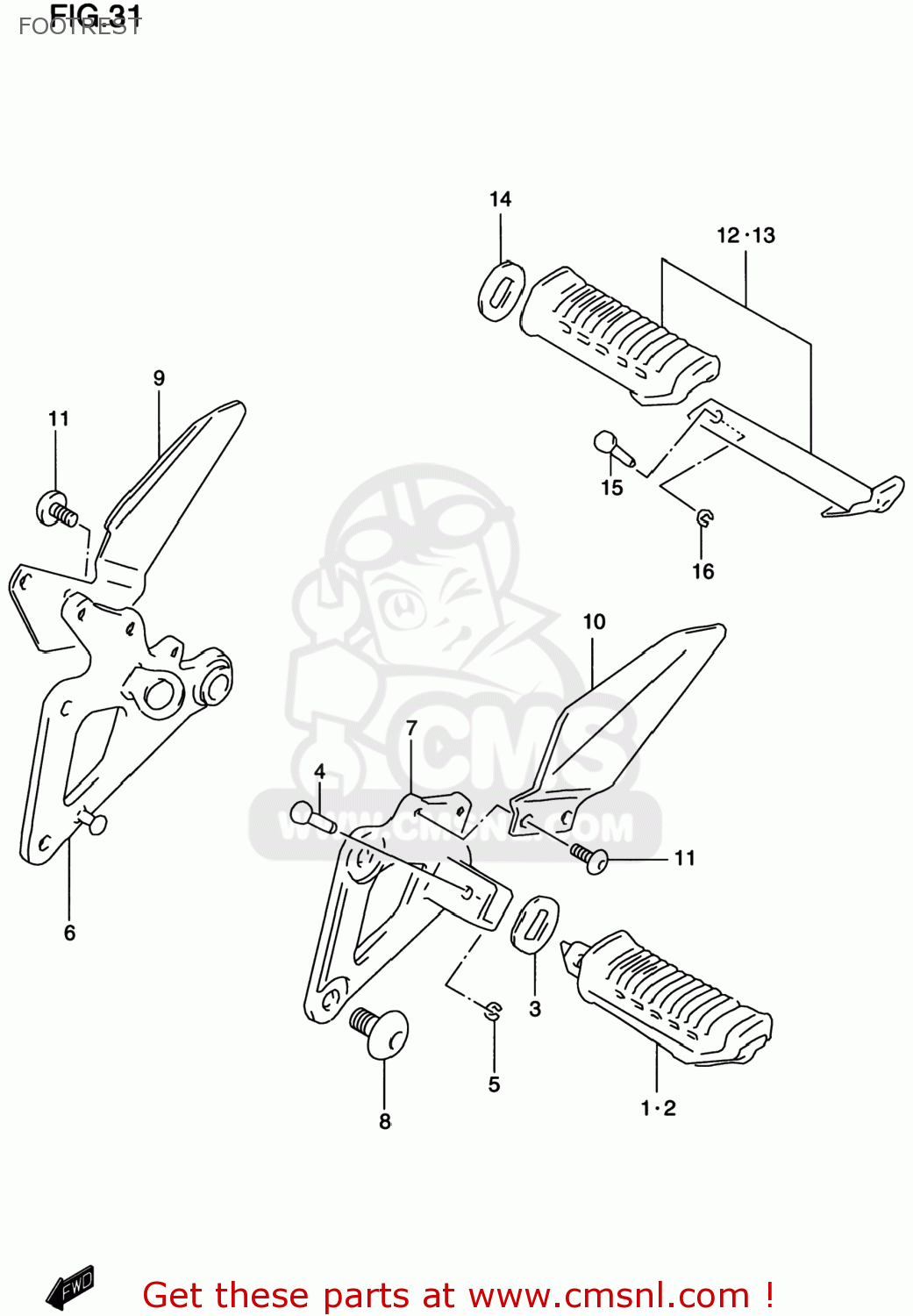

Footrest diagram GS500E 1999 (X) USA CANADA (E03) (E28)
FOOTREST GS500E 1999 (X) USA CANADA (E03) (E28)
×
prices are in EUR
ref
part #
description
quantity
1
4355001D00
ref: 1
RUBBER,FR FOOTREST,R
€ 32.00
2
4356001D00
ref: 2
RUBBER,FR FOOTREST,L
€ 31.50
3
4363134A01
ref: 3
WASHER,FOOTREST RUBBER
€ 6.50
4
0920806005
ref: 4
PIN
€ 3.00
5
0833211043
ref: 5
08332-1104A
E-RING
€ 2.00
6
4351001D0013L
ref: 6
BRACKET,FR FOOTREST,R
€ 111.00
6
4351001D0013L
ref: 6
BRACKET,FR FOOTREST,R
€ 111.00
7
4352001D0013L
ref: 7
BRACKET,FR FOOTREST,L
€ 52.00
7
4352001D0013L
ref: 7
BRACKET,FR FOOTREST,L
€ 52.00
8
0910608094
ref: 8
BOLT(8X20)
€ 8.00
9
4358601D10
ref: 9
GUARD,FR FOOTREST,R
€ 44.00
10
4359601D10
ref: 10
GUARD,FR FOOTREST,L
€ 44.00
11
0913906062
ref: 11
SCREW(6X12)
€ 3.00
12
4360012B00
ref: 12
FOOTREST ASSY,PILLION,R
€ 20.00
13
4370012B00
ref: 13
FOOTREST ASSY,PILLION,L
€ 22.00
14
4363134A01
ref: 14
WASHER,FOOTREST RUBBER
€ 6.50
15
0920806005
ref: 15
PIN
€ 3.00
16
0833211043
ref: 16
08332-1104A
E-RING
€ 2.00
