TRANSMISSION
GS500E 1999 (X) USA CANADA (E03) (E28)

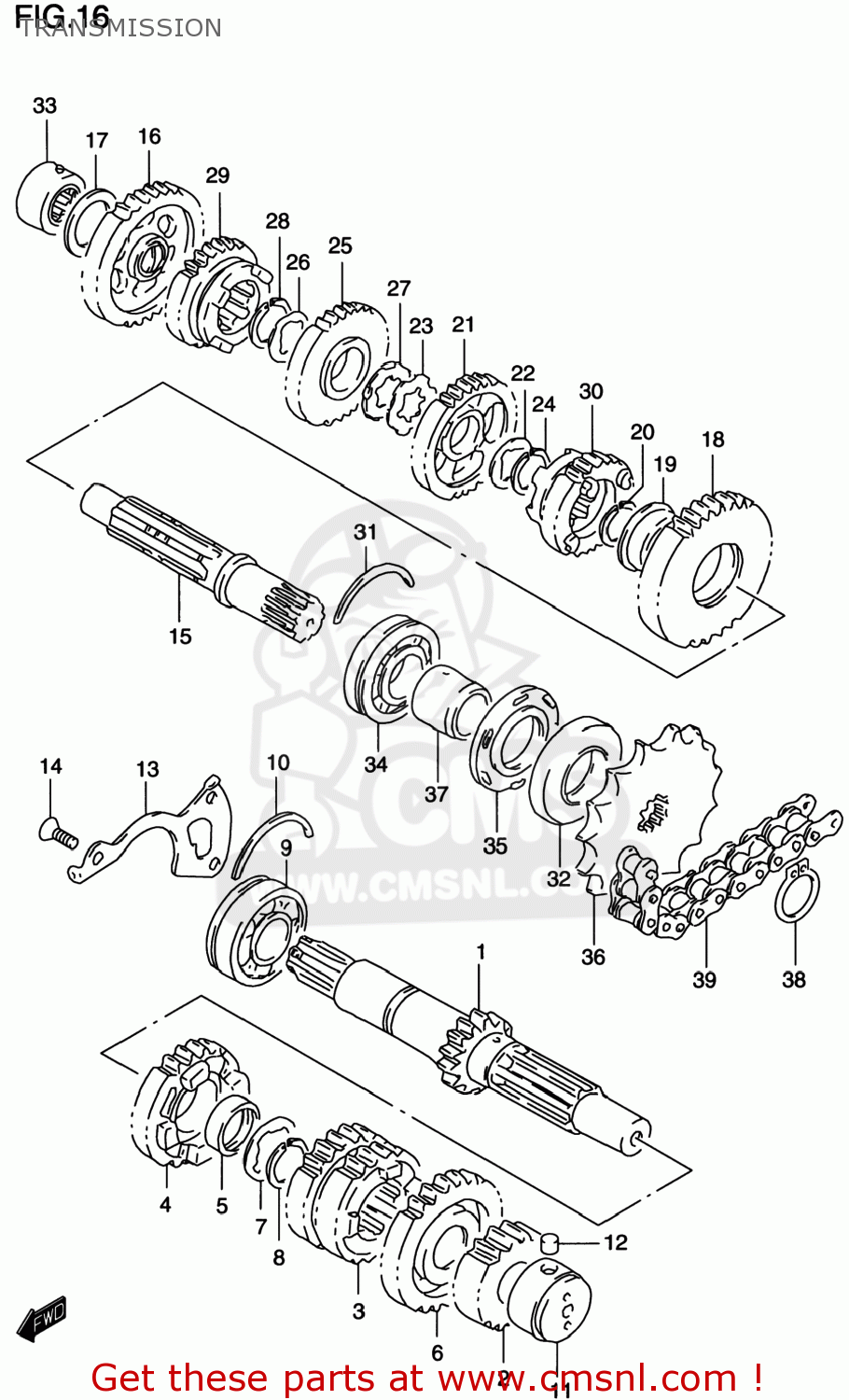

Transmission diagram GS500E 1999 (X) USA CANADA (E03) (E28)
TRANSMISSION GS500E 1999 (X) USA CANADA (E03) (E28)
×
prices are in EUR
ref
part #
description
quantity
1-1
2412101D00
ref: 1-1
24121-01D01
SHAFT,COUNTER (NT:13)
€ 234.00
1-2
2412101D01
ref: 1-2
SHAFT,COUNTER
€ 234.00
2
2422144001
ref: 2
GEAR,2ND DRIVE(NT:18)
€ 83.00
3-1
2423101D00
ref: 3-1
24231-20F10
GEAR,THIRD DRIVE (NT:21/2
€ 91.50
3-2
2423101D01
ref: 3-2
24231-20F10
GEAR,THIRD DRIVE
€ 91.50
3-3
2423101D11
ref: 3-3
24231-20F10
GEAR,THIRD/FOURTH DRIVE (NT:
€ 91.50
4
2425101D00
ref: 4
24251-20F02
GEAR,FIFTH DRIVE (NT:26)
€ 78.50
5
0930025023
ref: 5
24252-19F00
BUSHING 25X29X10
€ 9.50
6-1
2426001D00
ref: 6-1
24260-01D01
GEAR,SIXTH DRIVE (NT:27)
€ 95.50
6-2
2426001D01
ref: 6-2
GEAR,6TH DRIVE
€ 95.50
7-1
0821125341
ref: 7-1
09181-25167
WASHER
€ 3.50
7-2
0918125167
ref: 7-2
SHIM(25X34X1)
€ 3.50
8
0938025010
ref: 8
CIRCLIP
€ 3.00
9
0926225051
ref: 9
09262-25105
BEARING(25X62X17)
€ 59.50
10
0939062012
ref: 10
C RING
€ 5.00
11
0926320025
ref: 11
BEARING(20X34X20)
€ 37.00
12
0422107129
ref: 12
PIN
€ 1.50
13
2474144102
ref: 13
PLATE,COUNTERSHAFT BEARING
€ 10.50
14-1
0212206163
ref: 14-1
02122-0616A
SCREW ,6X16
€ 2.00
14-2
0912606014
ref: 14-2
SCREW(6X16)
€ 2.00
15
2413101D00
ref: 15
SHAFT,DRIVE
€ 207.00
16-1
2431044000
ref: 16-1
24310-44001
GEAR,FIRST DRIVEN
€ 98.50
16-2
2431044001
ref: 16-2
GEAR,1ST DRIVEN
€ 98.50
17-1
0821120341
ref: 17-1
WASHER
€ 2.00
17-2
0918120251
ref: 17-2
SHIM(20X34X1)
€ 3.00
18-1
2432144004
ref: 18-1
24321-20F01
GEAR,SECOND DRIVEN
€ 98.50
18-2
2432144005
ref: 18-2
24321-20F01
GEAR,SECOND DRIVEN (NT:32)
€ 98.50
19
0930125001
ref: 19
24322-19F00
BUSHING
€ 12.50
20
0938025010
ref: 20
CIRCLIP
€ 3.00
21-1
2433144002
ref: 21-1
24331-44003
GEAR,THIRD DRIVEN
€ 89.50
21-2
2433144003
ref: 21-2
GEAR,3RD DRIVEN
€ 89.50
22
0916725012
ref: 22
WASHER,LOCK
€ 3.50
23
0916725013
ref: 23
WASHER,LOCK
€ 2.50
24
0938025010
ref: 24
CIRCLIP
€ 3.00
25-1
2434144002
ref: 25-1
24341-44003
GEAR,FOURTH DRIVEN
€ 82.50
25-2
2434144003
ref: 25-2
GEAR,4TH DRIVEN
€ 82.50
26
0916725012
ref: 26
WASHER,LOCK
€ 3.50
27
0916925001
ref: 27
WASHER
€ 2.00
28
0938025010
ref: 28
CIRCLIP
€ 3.00
29
2435144001
ref: 29
GEAR,5TH DRIVEN(NT:25)
€ 108.00
30-1
2436144002
ref: 30-1
24361-44010
GEAR,SIXTH DRIVEN
€ 121.00
30-2
2436144003
ref: 30-2
24361-44010
GEAR,SIXTH DRIVEN
€ 121.00
30-3
2436144010
ref: 30-3
GEAR,6TH DRIVEN(NT:23)
€ 121.00
31
0939062012
ref: 31
C RING
€ 5.00
32
0928332015
ref: 32
SEAL,OIL(32X62X7)
€ 15.50
33
0926320027
ref: 33
BEARING(20X34X17)
€ 34.00
34
0926225105
ref: 34
BEARING(25X62X17)
€ 59.50
35
0928232002
ref: 35
SEAL,OIL(32X62X5.5)
€ 11.50
36
2751101D01
ref: 36
SPROCKET,ENGINE(16T)
€ 27.50
37
2753101D10
ref: 37
SPACER,ENGINE SPROCKET
€ 20.00
38
0833131256
ref: 38
08331-3125A
CIRCLIP
€ 2.00
39
2760001C10110
ref: 39
CHAIN(DID520VM,110L)
€ 134.50
