AIR CLEANER

GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)

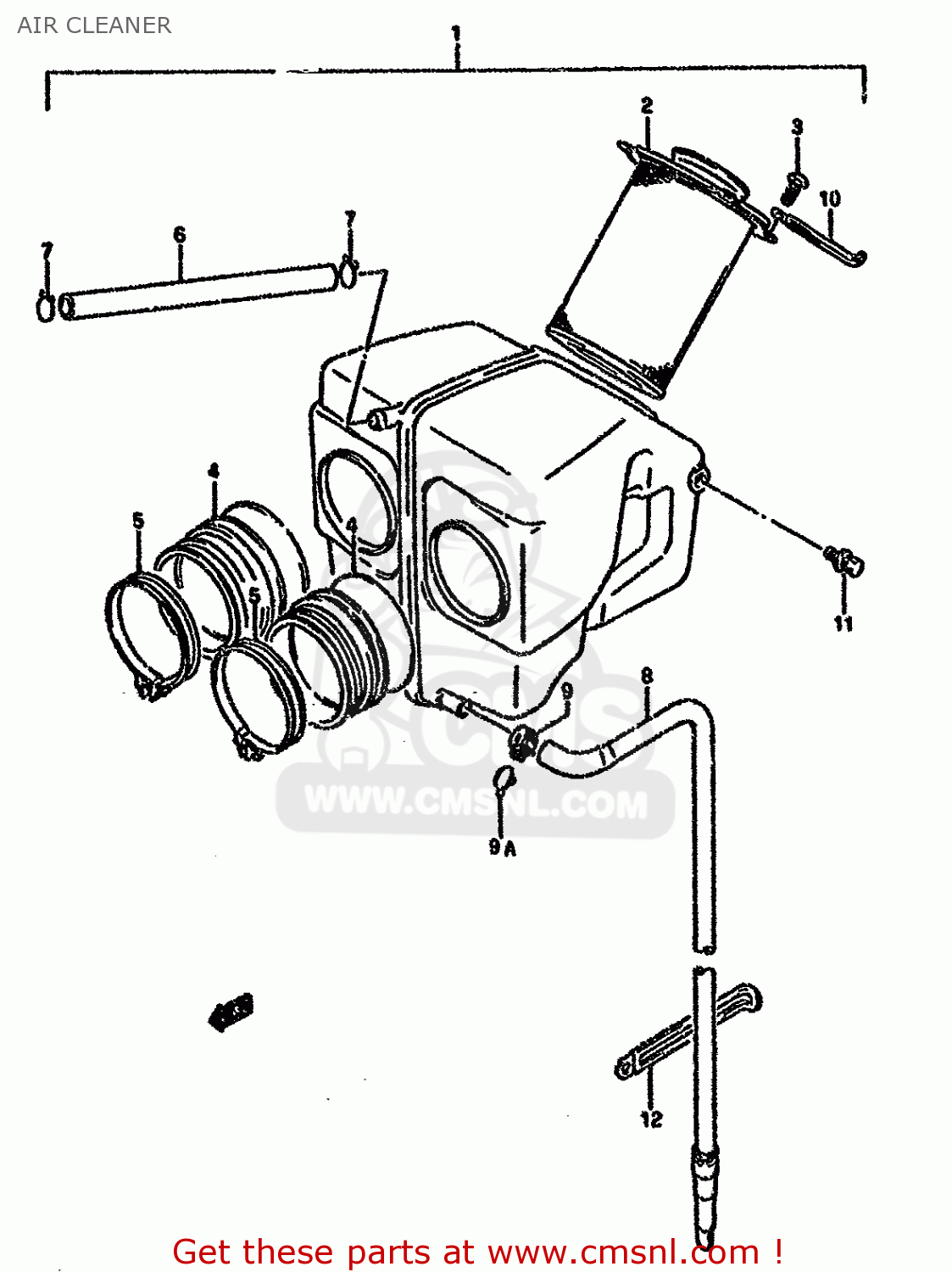

Air cleaner diagram GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)

AIR CLEANER GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)
AIR CLEANER GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)
AIR CLEANER GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
1370001D01
ref: 1-1
MODEL K/L/M/N/P/R/S
CLEANER ASSEMBLY,AIR
€ 138.00
1-2
1370001D50
ref: 1-2
MODEL T
CLEANER ASSY, AIR
€ 138.50
1-3
1370001D01
ref: 1-3
MODEL T E24,E37
CLEANER ASSEMBLY,AIR
€ 138.00
1-4
1370001D10
ref: 1-4
MODEL K/L E39
CLEANER ASSY,AIR
€ 154.50
1-5
1370001D11
ref: 1-5
MODEL M E39
CLEANER ASSY,AIR
€ 154.50
1-6
1370001D40
ref: 1-6
MODEL N/P/R/S/T E18,
CLEANER ASSY, AIR
€ 154.50
2-1
1378001D00
ref: 2-1
MODEL K/L/M/N/P/R/S
FILTER ASSY
1378001D00
€ 30.50
2-2
1378001D50
ref: 2-2
MODEL T
FILTER,AIR
1378001D50
€ 36.00
2-3
1378001D00
ref: 2-3
MODEL T E24,E37
FILTER ASSY
1378001D00
€ 30.50
2-4
1378001D10
ref: 2-4
MODEL K/L/M E39
FILTER ASSY
1378001D10
€ 31.00
2-5
1378001D40
ref: 2-5
MODEL N/P/R/S/T E18,
FILTER ASSY,AIR
1378001D40
€ 38.00
3
0214205087
ref: 3
SCREW
0214205087
€ 2.00
4
1388101D00
ref: 4
TUBE,OUTLET
1388101D00
€ 20.00
5
0940268208
ref: 5
CLAMP
0940268208
€ 6.00
6
0935211153600
ref: 6
HOSE(11X15X600)
0935211153600
€ 13.50
7
0940114301
ref: 7
CLIP
0940114301
€ 2.00
8-1
1387021411
ref: 8-1
MODEL K/L
DRAIN TUBE
€ 23.50
8-2
1387021628
ref: 8-2
MODEL M/N/P/R/S
TUBE,DRAIN
1387021628
€ 23.50
8-3
1387021458
ref: 8-3
MODEL T
TUBE,DRAIN
1387021458
€ 23.50
9
1382738B00
ref: 9
MODEL K/L
CLAMP
€ 2.50
9A
0940113409
ref: 9A
MODEL M/N/P/R/S/T
CLIP
0940113409
€ 2.50
10
0940406413
ref: 10
CLAMP
0940406413
€ 2.50
11-1
0911806088
ref: 11-1
MODEL K/L
BOLT 6X16
€ 0.00
11-2
0211276165
ref: 11-2
MODEL M/N/P
VIS
€ 2.00
11-3
0211276163
ref: 11-3
MODEL R/S/T
SCREW
0211276163
€ 2.00
12-1
0940406426
ref: 12-1
MODEL K/L/M/N/P/R/S
CLAMP
0940406426
€ 3.00
12-2
0940406433
ref: 12-2
MODEL T
CLAMP(L:80)
0940406433
€ 3.00
