STARTING MOTOR

GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)

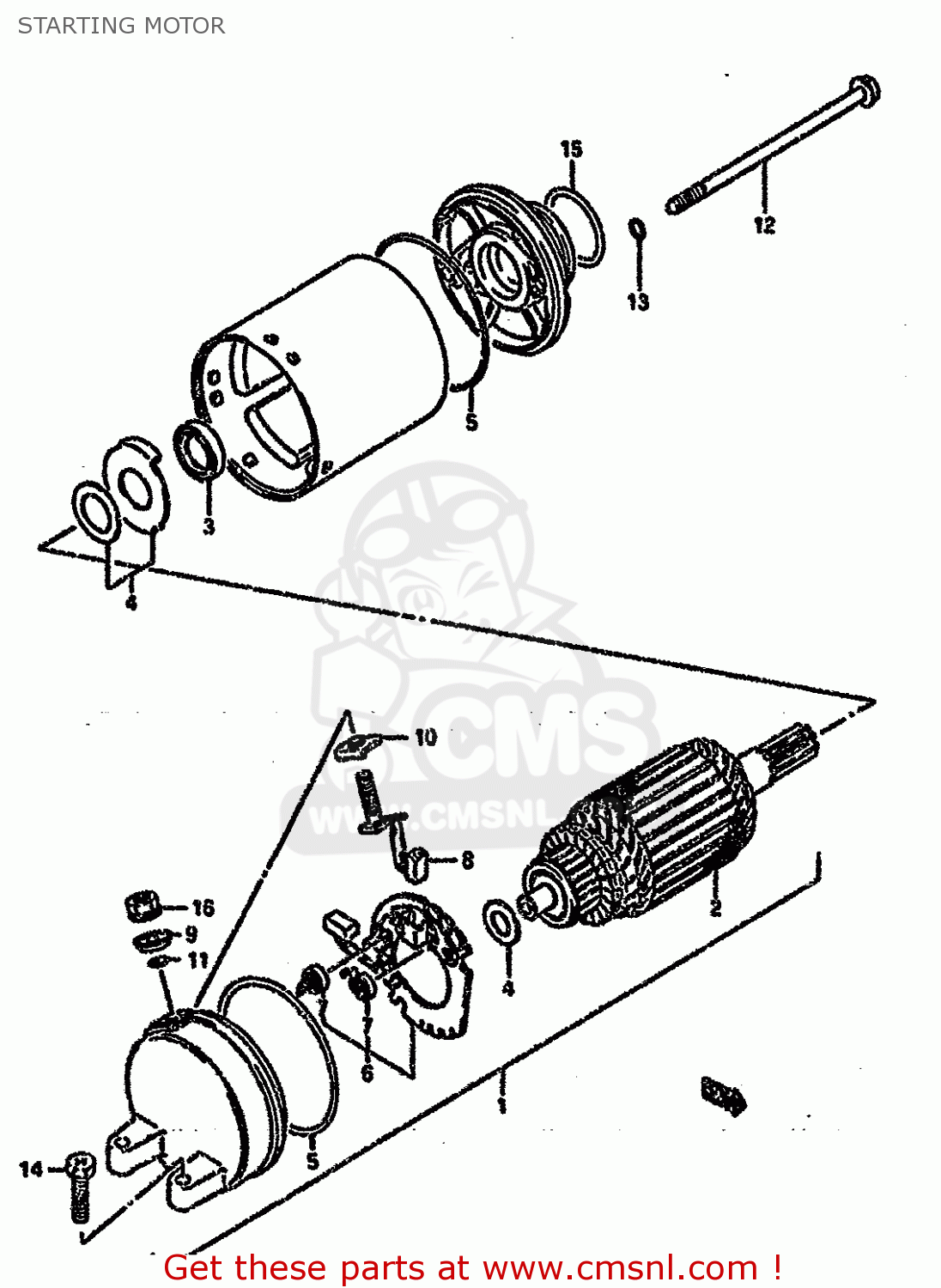

Starting motor diagram GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)

STARTING MOTOR GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)
STARTING MOTOR GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)
STARTING MOTOR GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
3110027A01H17
ref: 1-1
MODEL K/L/M/N/P
MOTOR ASSEMBLY,STARTING
€ 530.00
1-2
3110020C00
ref: 1-2
MODEL R/S/T
MOTOR ASSEMBLY,STARTING
€ 530.00
2
3131027A01H17
ref: 2
ARMATURE
€ 222.00
3
3115343400
ref: 3
SEAL,OIL
3115343400
€ 19.50
4
3117043400
ref: 4
SHIM SET,STARTING MOTOR
3117043400
€ 3.50
5
3126444110
ref: 5
O RING
3126444110
€ 8.00
6
3113227A01
ref: 6
HOLDER,BRUSH
3113227A01
€ 47.00
7
3113565010
ref: 7
SPRING
3113565010
€ 3.00
8
3113038300
ref: 8
BRUSH SUB ASSY,STARTING MOTOR
3113038300
€ 12.50
9
3117238300
ref: 9
BUSHING
3117238300
€ 4.00
10
3117138300
ref: 10
BUSH,B
3117138300
€ 5.50
11
3114338300
ref: 11
O RING
3114338300
€ 3.50
12
3128188C00
ref: 12
BOLT
3128188C00
€ 8.50
13
3115638300
ref: 13
O RING
3115638300
€ 3.00
14
0912806024
ref: 14
SCREW (6X25)
0912806024
€ 2.50
15
0928024003
ref: 15
O RING(D:3,ID:24.5)
0928024003
€ 2.00
16
0836135066
ref: 16
NUT
€ 2.00
