STARTER CLUTCH

GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)

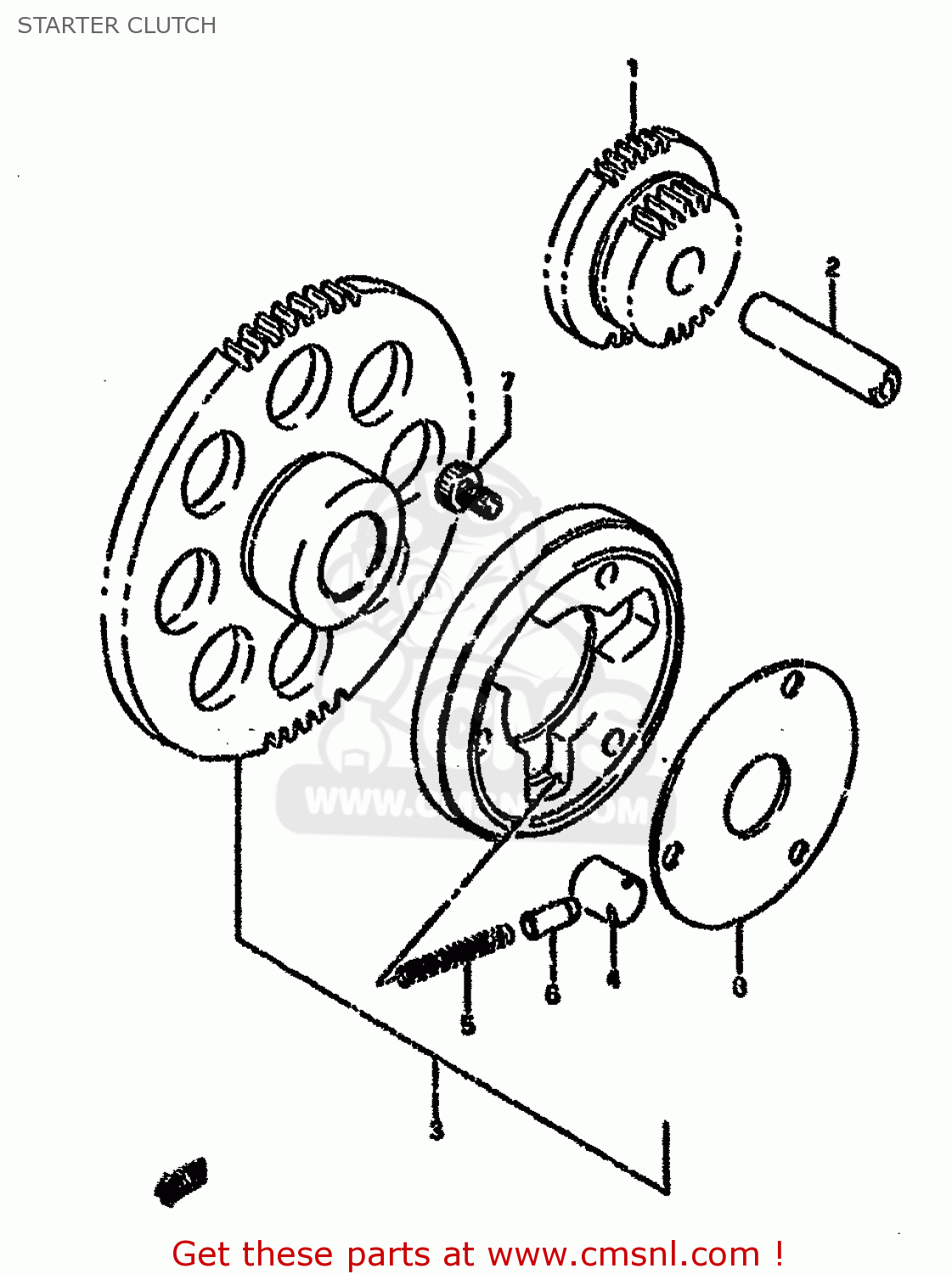

Starter clutch diagram GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)

prices are in EUR

ref

part #

description

quantity

1261101D00
ref: 1

GEAR,STARTER IDLE

€ 73.50

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3-1

1260044831
ref: 3-1
~F.NO.GM51A-108421~F

CLUTCH SET,STARTER

€ 313.00

3-2

1260044833
ref: 3-2
F.NO.GM51A-108422~F.

CLUTCH SET,STARTER

€ 313.00

0926115001
ref: 4

ROLLER(15X13)

€ 3.50

0944004015
ref: 5

SPRING

€ 2.50

1263331000
ref: 6

PIECE,PUSH

€ 9.00

0713008163
ref: 7

BOLT

€ 3.00

1264945000
ref: 8

SHIM,STARTER CLUTCH HUB

€ 7.00
