HEADLAMP (MODEL K/L/M/N)

GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)

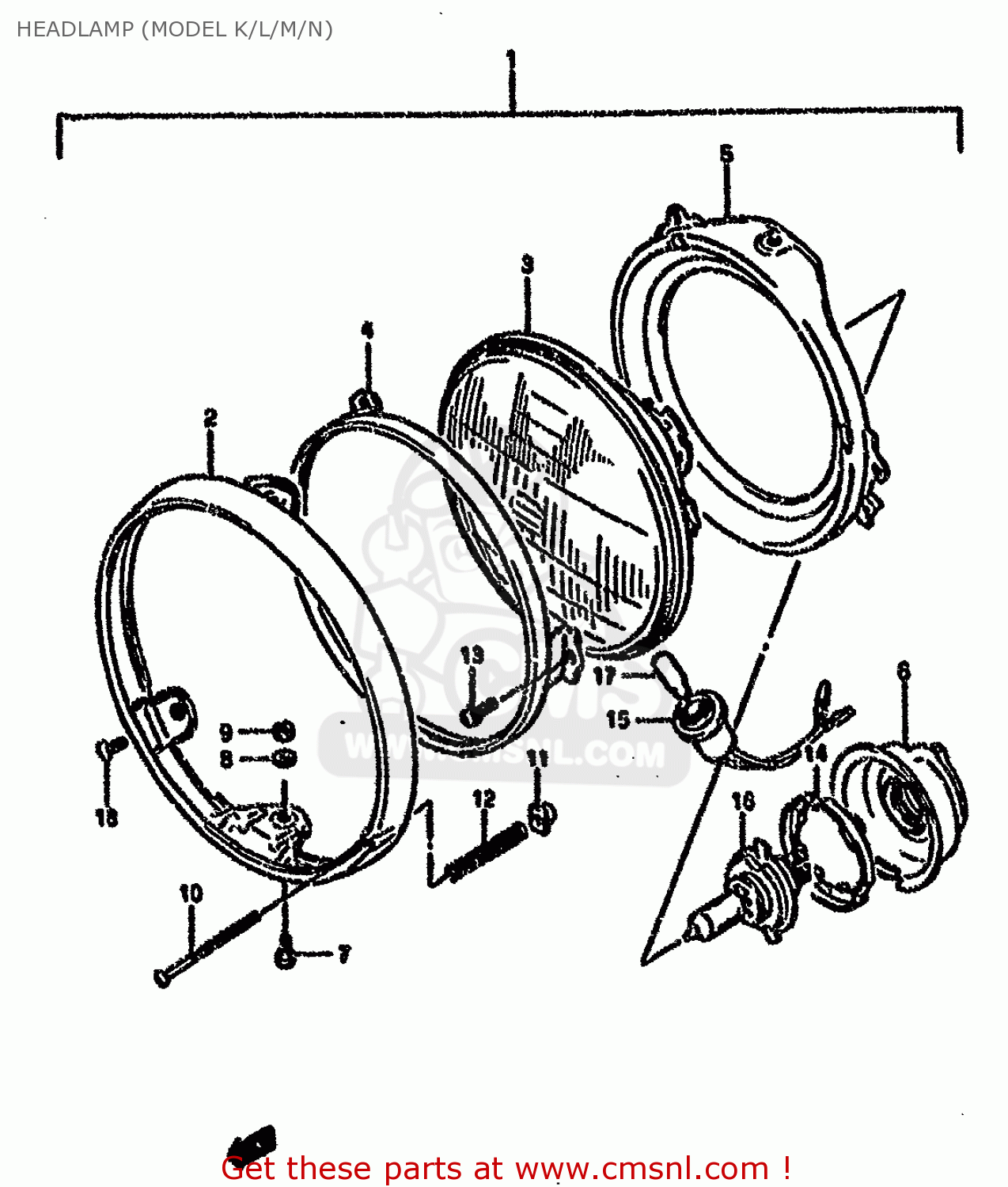

Headlamp (model k/l/m/n) diagram GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)

HEADLAMP (MODEL K/L/M/N) GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)
HEADLAMP (MODEL K/L/M/N) GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)
HEADLAMP (MODEL K/L/M/N) GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1
3510001D20
ref: 1
HEADLAMP ASSY
€ 234.00
2
3511101D20
ref: 2
RIM,HEADLAMP
3511101D20
€ 55.50
3
3512134300
ref: 3
LAMP UNIT
3512134300
€ 115.00
4
3512745030
ref: 4
RETAINING RING
3512745030
€ 19.50
5
3513045030
ref: 5
RING
3513045030
€ 29.50
6
3517345000
ref: 6
COVER,HEADLAMP SOCKET
3517345000
€ 14.50
7
3518115611
ref: 7
H/LAMP LENS UNIT FITING SCRE
3518115611
€ 3.00
8
0832101057
ref: 8
WASHER,LOCK
0832101057
€ 2.00
9
0831000053
ref: 9
NUT
€ 2.50
10
3515145900
ref: 10
-35151-45030
SCREW
3515145900
€ 4.00
11
3515215611
ref: 11
NUT
3515215611
€ 3.50
12
3515431900
ref: 12
SPRING,ADJUSTING
3515431900
€ 3.50
13
0211204103
ref: 13
SCREW
0211204103
€ 1.00
14
3513634400
ref: 14
SETTING,BULB
3513634400
€ 4.50
15
3611804A00
ref: 15
-36118-01D20
SOCKET
3611804A00
€ 11.50
16
0947112060
ref: 16
BULB(12V60/55W,H4)
0947112060
€ 8.00
17
0947112063
ref: 17
BULB(12V4W)
0947112063
€ 6.00
18
0212205127
ref: 18
SCREW
0212205127
€ 2.50
