Buy Suzuki GS Parts Online


CRANKSHAFT BALANCER

GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)

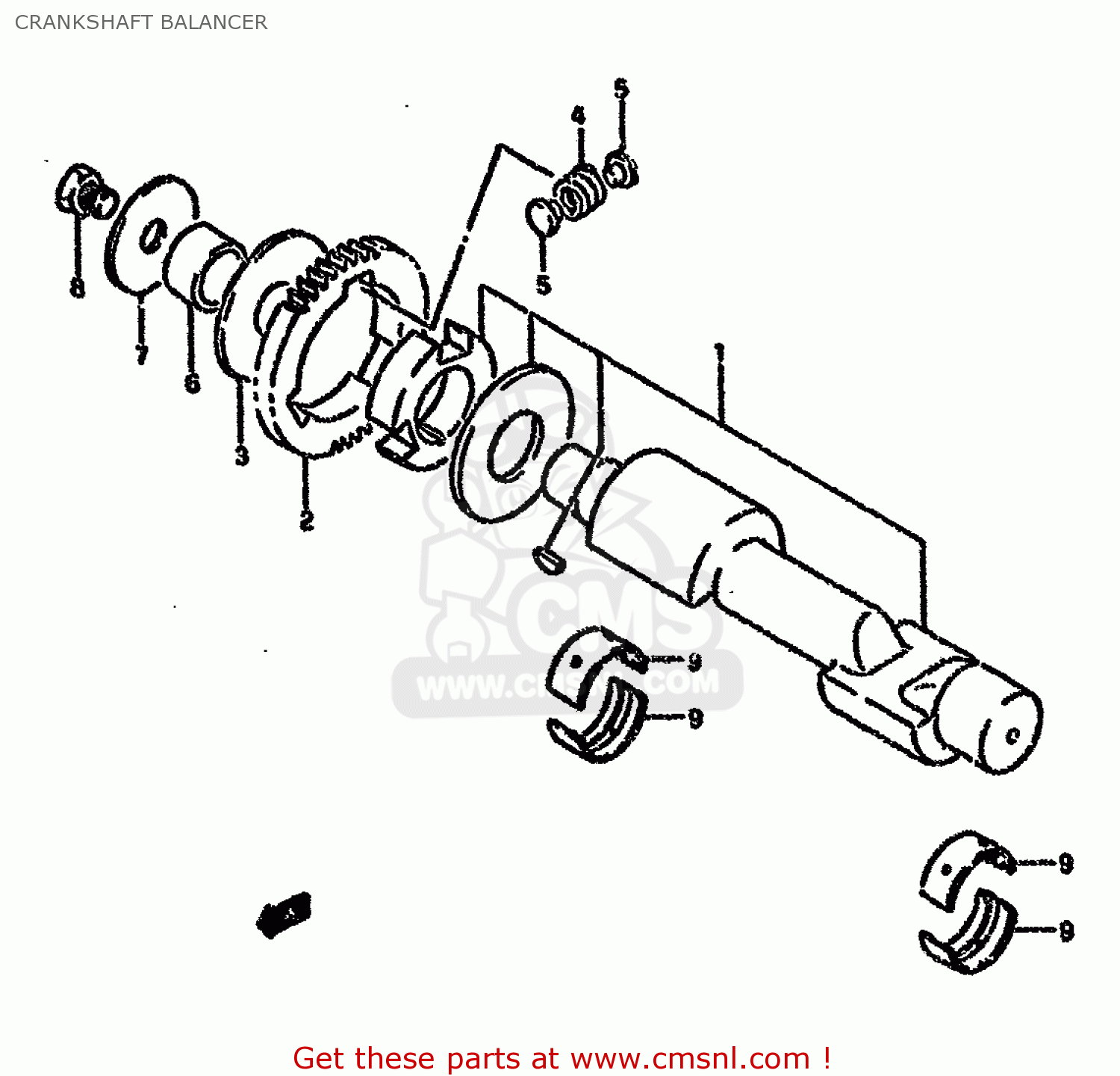

Crankshaft balancer diagram GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)

CRANKSHAFT BALANCER GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)
CRANKSHAFT BALANCER GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)
CRANKSHAFT BALANCER GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
1265044100
ref: 1-1
MODEL K/L-12650-01D0
BALANCER,CRANKSHAFT
€ 223.00
1-2
1265001D01
ref: 1-2
MODEL M/N/P/R/S/T
BALANCER,CRANK
1265001D01
€ 223.00
2
1266644000
ref: 2
GEAR,CRANK BALANCER DRIVE
1266644000
€ 128.00
3
0916024026
ref: 3
WASHER(24X70X3)
0916024026
€ 12.00
4
0944015007
ref: 4
SPRING
0944015007
€ 23.50
5
0920108001
ref: 5
PIN
0920108001
€ 3.50
6-1
0918024004
ref: 6-1
MODEL K/L/M/N/P
SPACER
€ 7.00
6-2
0918024006
ref: 6-2
MODEL K/L/M/N/P
SPACER
0918024006
€ 7.00
6-3
0918024009
ref: 6-3
MODEL R/S/T
SPACER(24X30.5X12.5)
0918024009
€ 7.00
7
0916012039
ref: 7
WASHER(12X50X3)
0916012039
€ 8.00
8
0150012203
ref: 8
BOLT
0150012203
€ 3.00
9-1
1222901D010A0
ref: 9-1
BEARING,CRANKSHAFT(GREEN)
1222901D010A0
€ 10.50
9-2
1222901D010B0
ref: 9-2
BEARING,CRANKSHAFT(BLACK)
1222901D010B0
€ 11.00
9-3
1222901D010C0
ref: 9-3
BEARING,CRANKSHAFT(BROWN)
1222901D010C0
€ 11.00
9-4
1222901D010D0
ref: 9-4
BEARING,CRANKSHAFT(YELLOW)
1222901D010D0
€ 11.00
