Buy Suzuki GS Parts Online


FRONT WHEEL

GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)

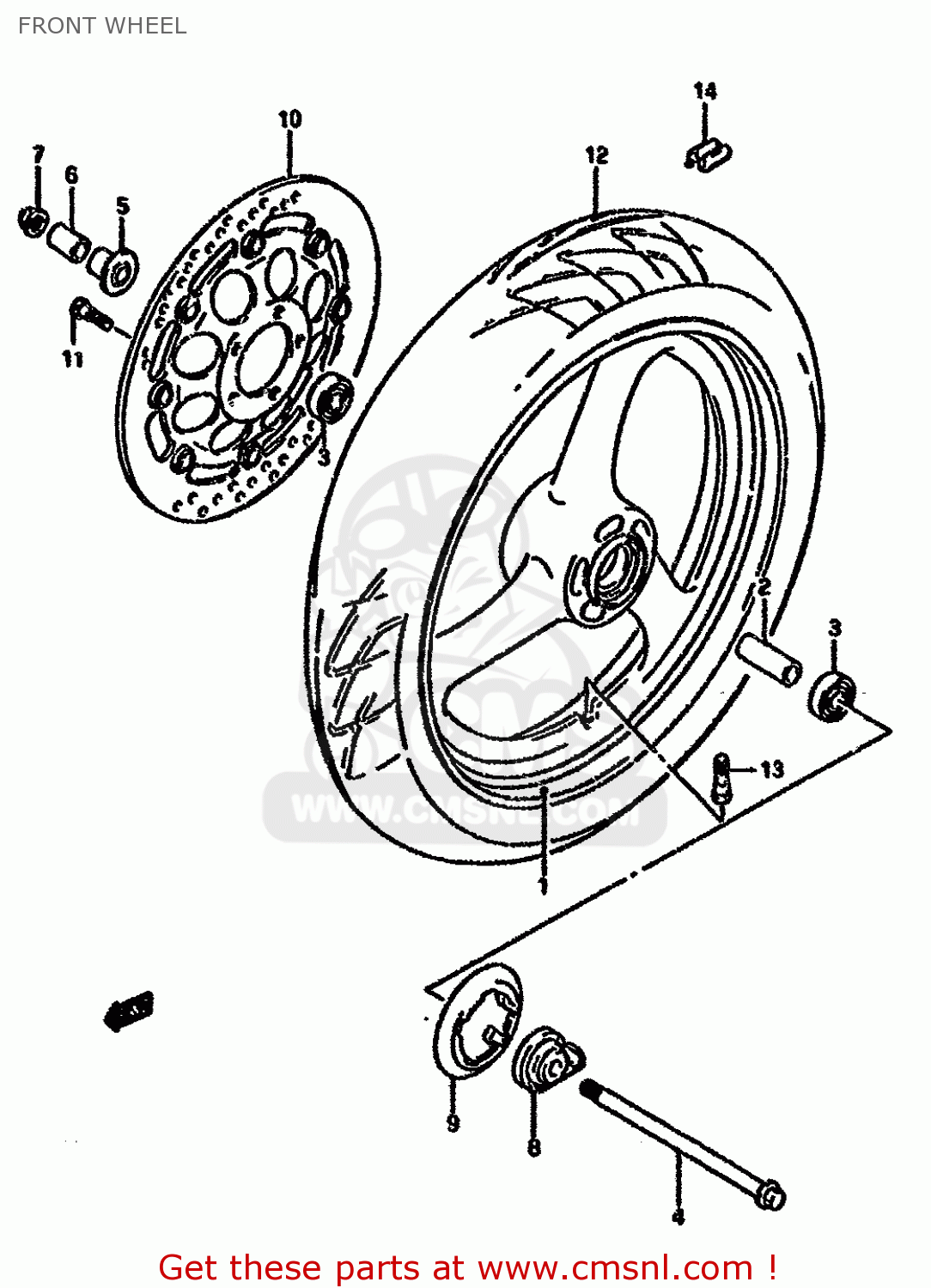

Front wheel diagram GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)

FRONT WHEEL GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)
FRONT WHEEL GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)
FRONT WHEEL GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
5411134C0028W
ref: 1-1
MODEL K/L/M/N/P/R/S
WHEEL,FRONT (MT3.00X17)
5411134C0028W
€ 480.50
1-2
5411134C0017U
ref: 1-2
MODEL T
WHEEL,FRONT (MT3.00X17)
€ 622.00
2
0918015011
ref: 2
SPACER(15.3X21.7X63)
0918015011
€ 7.50
3
0812363027
ref: 3
BEARING
0812363027
€ 19.00
4-1
5471101D10
ref: 4-1
-54711-01D00
AXLE FRONT
€ 38.50
4-2
5471101D00
ref: 4-2
AXLE,FR
5471101D00
€ 38.50
5
5474033410
ref: 5
SPACER,FR AXLE
5474033410
€ 15.50
6
5474101D00
ref: 6
SPACER,FR AXLE,R
5474101D00
€ 12.50
7
0915912028
ref: 7
NUT
0915912028
€ 4.50
8
5460001D01
ref: 8
BOX ASSY,SPEEDOMETER GEAR
5460001D01
€ 115.00
9-1
5487138C0030H
ref: 9-1
MODEL K/L/M/N/P/R/S
COVER,FR HUB,L
€ 18.00
9-2
5487138C000SR
ref: 9-2
MODEL T
COVER,FRONT HUB,LEFT
€ 9.50
10-1
5921001D00
ref: 10-1
MODEL K
DISC,BRAKE
€ 266.50
10-2
5921001D11
ref: 10-2
MODEL L/M/N
DISC,FR BRAKE,R
€ 266.50
10-3
5921001D30
ref: 10-3
MODEL P/R/S
DISC,FR BRAKE,R
€ 229.00
10-4
5921001D40
ref: 10-4
MODEL T
DISC,FR BRAKE,R
€ 367.50
11
0910608082
ref: 11
BOLT 8X33
0910608082
€ 6.00
12
5511001D00
ref: 12
TIRE,T/L(110/70-17 54H)
€ 234.00
13-1
4313075150
ref: 13-1
MODEL K/L/M-43130-78
VALVE,TIRE
€ 14.50
13-2
4313078030
ref: 13-2
VALVE,TIRE TR413 BS
4313078030
€ 14.50
13-3
4313024A00
ref: 13-3
MODEL N/P/R/S/T-4313
VALVE ASSY,WHEEL RIM(TR412)
4313024A00
€ 7.00
13-4
4313024A11
ref: 13-4
VALVE ASSEMBLY,WHEEL,TR412
€ 7.00
14-1
5541100A00
ref: 14-1
BALANCER,WHEEL (10G)
€ 6.50
14-2
5541200A01
ref: 14-2
BALANCER,WHEEL (20G)
€ 7.00
14-3
5541300A01
ref: 14-3
BALANCER,WHEEL
€ 4.00
