FRAME

GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)

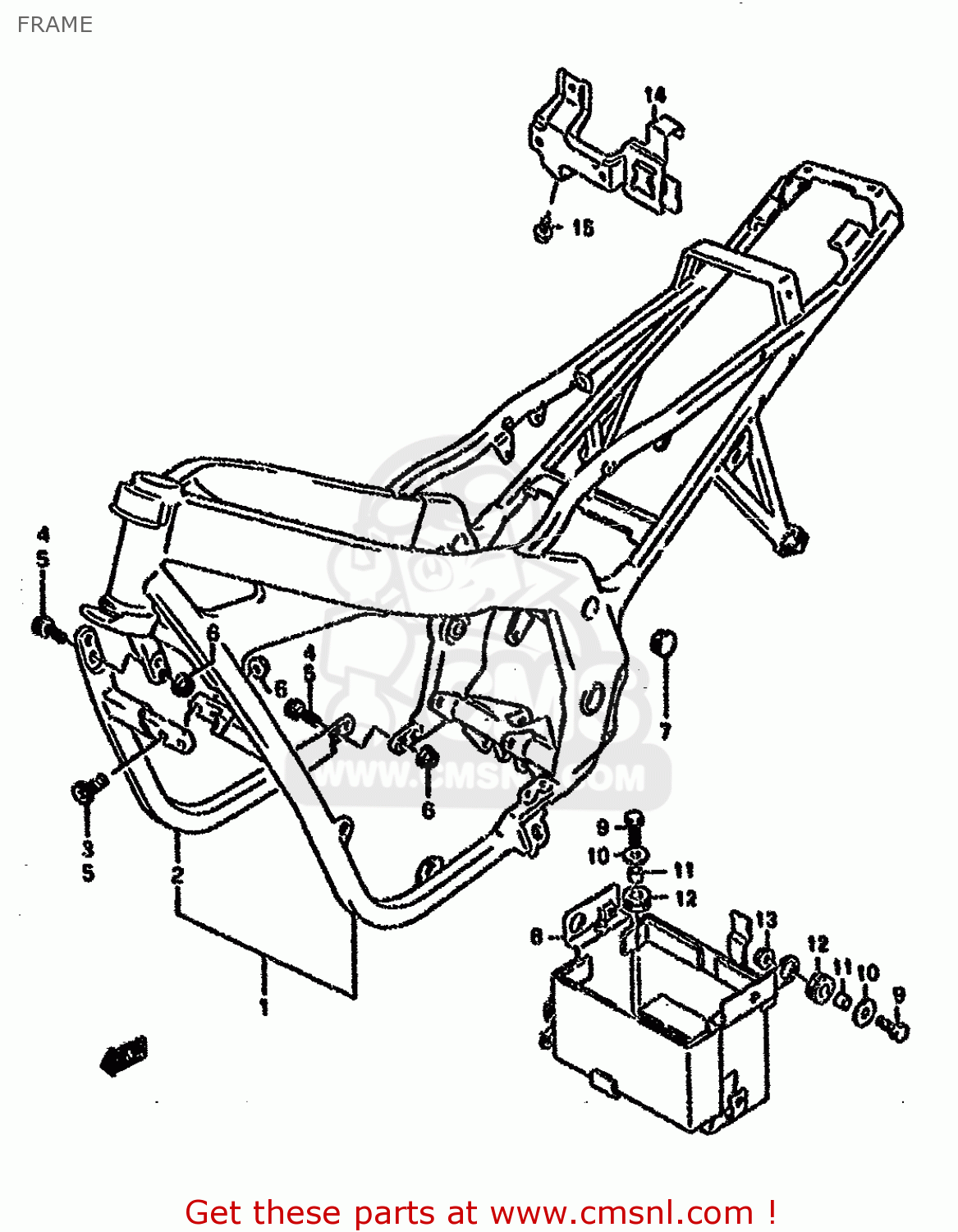

Frame diagram GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)

FRAME GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)
FRAME GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)
FRAME GS500EU 1996 (T) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
41102018200FP
ref: 1-1
MODEL K
FRAME
€ 1,171.00
1-2
41102018300FP
ref: 1-2
MODEL L
FRAME
€ 1,171.00
1-3
41102018400FP
ref: 1-3
MODEL M/N/P
FRAME
€ 1,171.00
1-4
411020185113L
ref: 1-4
MODEL R/S
FRAME
€ 1,349.50
1-5
41102018600FP
ref: 1-5
MODEL N/P E18,E39
FRAME SET
€ 1,171.00
1-6
411020187013L
ref: 1-6
MODEL R/S E18,E39
FRAME
€ 1,349.50
2
411020187117U
ref: 2
MODEL T
FRAME SET(GRAY)
€ 1,349.50
3
0713010357
ref: 3
MODEL K/L
BOLT
0713010357
€ 3.50
4
0713010307
ref: 4
MODEL K/L
BOLT
0713010307
€ 4.50
5-1
0153710358
ref: 5-1
MODEL M/N/P/R
BOLT
€ 3.50
5-2
0155010357
ref: 5-2
MODEL S/T
BOLT
0155010357
€ 3.50
6
0831931107
ref: 6
NUT
0831931107
€ 3.00
7
4358501D00
ref: 7
CAP,BODY FRAME
4358501D00
€ 5.00
8-1
4154001D00
ref: 8-1
MODEL K
HOLDER,BATTERY
€ 37.00
8-2
4154001D31
ref: 8-2
MODEL L/M/N/P/R/S/T
HOLDER,BATTERY
€ 77.50
9-1
0150006163
ref: 9-1
MODEL K/L/M/N/P/R/S
BOLT
0150006163
€ 2.00
9-2
0911606167
ref: 9-2
MODEL T
BOLT(6X20)
0911606167
€ 2.00
10
0916006059
ref: 10
MODEL K/L/M/N/P/R/S
WASHER,COVER,FRONT
€ 2.00
11-1
0918006103
ref: 11-1
MODEL K/L/M/N/P/R
SPACER(6.2X9X7.5)
0918006103
€ 1.50
11-2
0918006038
ref: 11-2
MODEL S/T
SPACER(6.1X9X7.5)
0918006038
€ 2.00
12
0932008021
ref: 12
CUSHION
0932008021
€ 4.00
13-1
0915906017
ref: 13-1
MODEL K/L/M/N/P
NUT
0915906017
€ 2.50
13-2
0831610063
ref: 13-2
MODEL R/S/T
NUT
0831610063
€ 2.50
14
4741001D00
ref: 14
HOLDER,ELECTRIC PARTS
€ 14.00
15-1
0155006167
ref: 15-1
MODEL K/L/M/N/P
BOLT
0155006167
€ 1.50
15-2
0155006163
ref: 15-2
MODEL R/S/T
BOLT
0155006163
€ 2.50
