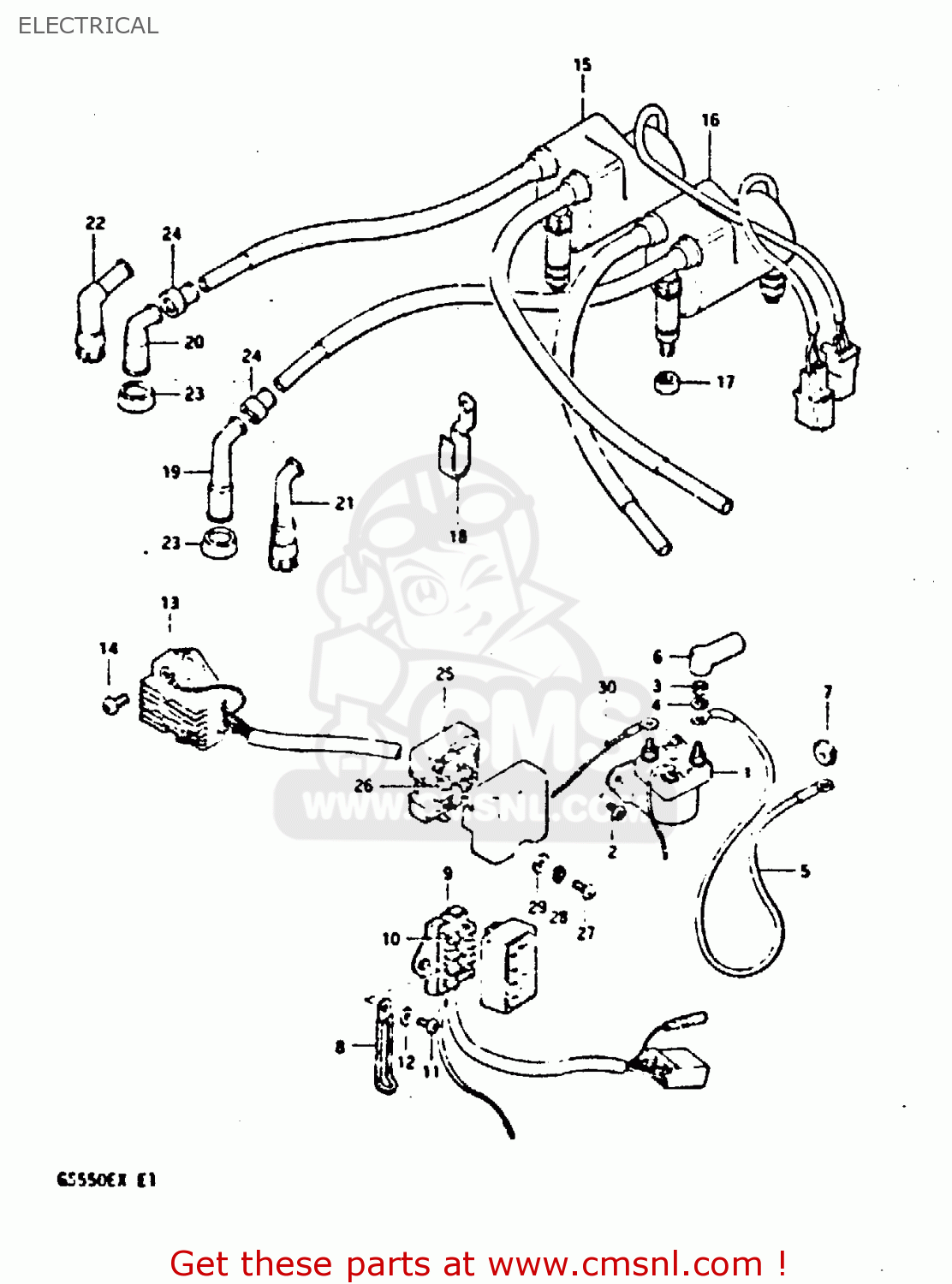

ELECTRICAL

ref

part #

description

quantity

1

3180037020
ref: 1

RELAY ASSY,STARTING MOTOR

€ 105.00

2

0211206088
ref: 2

SCREW

€ 2.00

3

0831022068
ref: 3

NUT 6MM

€ 2.50

4

0832121068
ref: 4

LOCK WASHER

€ 2.50

5

3385047020
ref: 5

WIRE,STARTER MOTOR LEAD

€ 50.00

6

3186135100
ref: 6

CAP,STARTER RELAY

€ 4.50

7

3148247000
ref: 7

GROMMET,STARTER CABLE

€ 2.00

8

0940406404
ref: 8

CLAMP

€ 3.00

9

3674034500
ref: 9

BOX ASSEMBLY,FUSE

€ 60.50

10-1

0948115001
ref: 10-1

FUSE(15A)

€ 3.00

10-2

0948110001
ref: 10-2

FUSE(10A)

€ 2.00

11

0211206128
ref: 11

SCREW 6X12

€ 2.00

12

0832221068
ref: 12

WASHER

€ 2.00

13

3280047020
ref: 13

RECTIFIER ASSEMBLY

€ 248.00

14

0211206168
ref: 14

SCREW

€ 2.50

15

3341047020
ref: 15

COIL ASSEMBLY,IGNITION

€ 584.00

16

3342047020
ref: 16

COIL ASSEMBLY,IGNITION

€ 584.00

17

0831011068
ref: 17

NUT

€ 2.50

18

0940306307
ref: 18

CLAMP

€ 4.50

19

NOTUSED
ref: 19

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

20

NOTUSED
ref: 20

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

21

3351045600
ref: 21
E2, E4, E18, E21, E2

CAP,SPARK PLUG

€ 47.00

22

3351044600
ref: 22
E2, E4, E18, E21, E2

CAP, SPARK PLUG (S)

€ 40.00

23

NOTUSED
ref: 23

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

24

3354298000
ref: 24

SEAL,SPARK PLU

€ 4.50

25

3885047000
ref: 25

TERMINAL ASSEMBLY,POWER SO

€ 94.00

26

0948110001
ref: 26

FUSE(10A)

€ 2.00

27

0211206168
ref: 27

SCREW

€ 2.50

28

0832121068
ref: 28

LOCK WASHER

€ 2.50

29

0832221068
ref: 29

WASHER

€ 2.00

30

3685134500
ref: 30

WIRE

€ 0.00
