STARTING MOTOR

GS550E 1981 (X) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

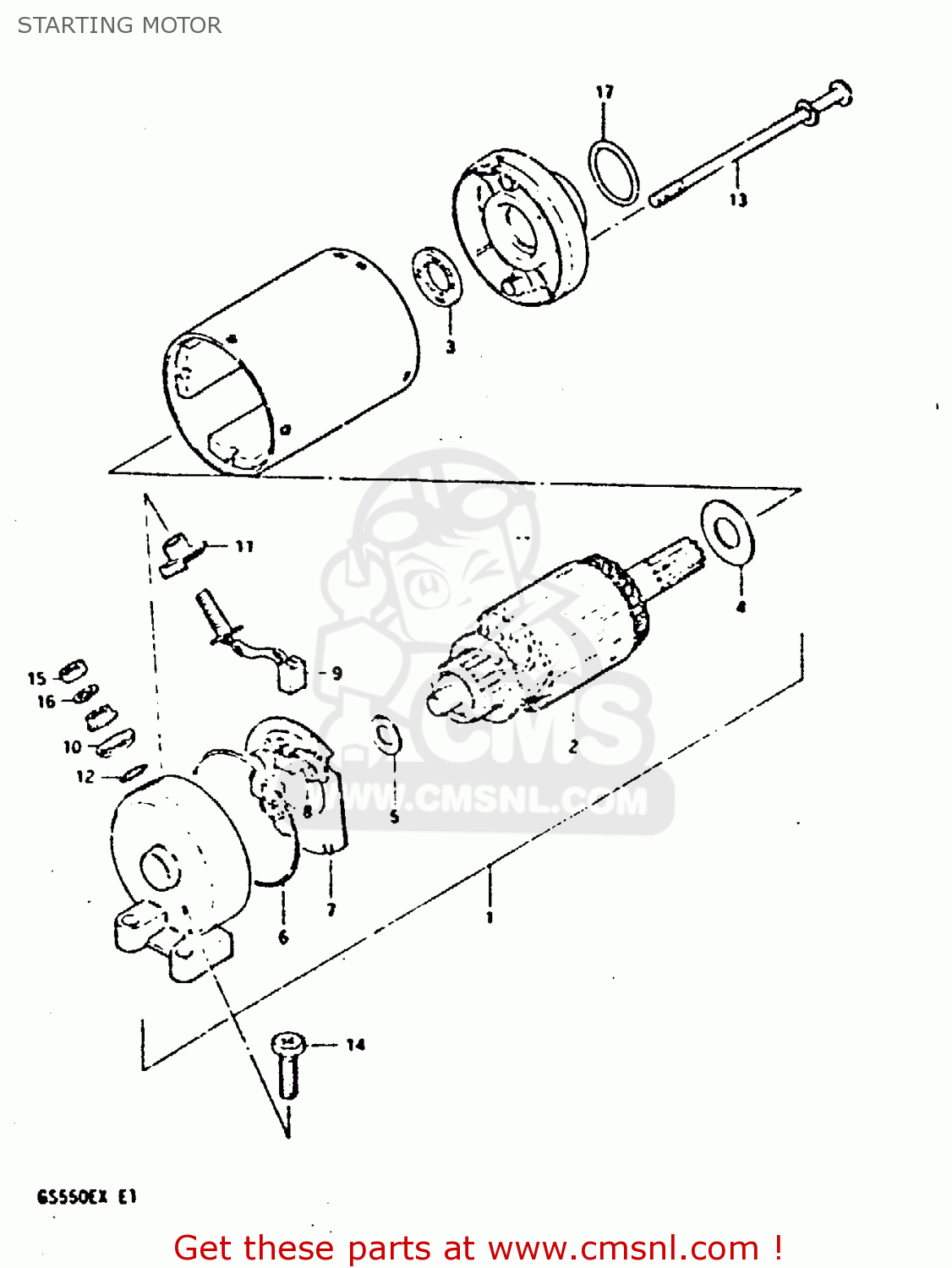

Starting motor diagram GS550E 1981 (X) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

prices are in EUR

ref

part #

description

quantity

3110047010
ref: 1

MOTOR ASSEMBLY,STARTING

€ 704.50

3131144110
ref: 2

ARMATURE

€ 255.00

3115345010
ref: 3

SEAL,OIL

€ 19.50

3136110200
ref: 4

RING,SNAP

€ 2.50

3136147010
ref: 5

SHIM,ARMATURE

€ 3.50

3126444110
ref: 6

O RING

€ 8.00

3113244110
ref: 7

HOLDER,BRUSH

€ 47.00

3113565010
ref: 8

SPRING

€ 3.00

3113044110
ref: 9

BRUSH (+)

€ 12.50

3117244110
ref: 10

BUSHING (1)

€ 6.00

3117144110
ref: 11

BUSH,NO.2

€ 8.00

3114344110
ref: 12

O-RING

€ 3.00

3128144110
ref: 13

BOLT,STARTING MOTOR HOUSING

€ 11.50

0912806024
ref: 14

SCREW (6X25)

€ 2.50

0831022068
ref: 15

NUT 6MM

€ 2.50

0832121068
ref: 16

LOCK WASHER

€ 2.50

0928024001
ref: 17

O RING(D:2,ID:24.5)

€ 2.00
