RIGHT HANDLE SWITCH

GS550E 1981 (X) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

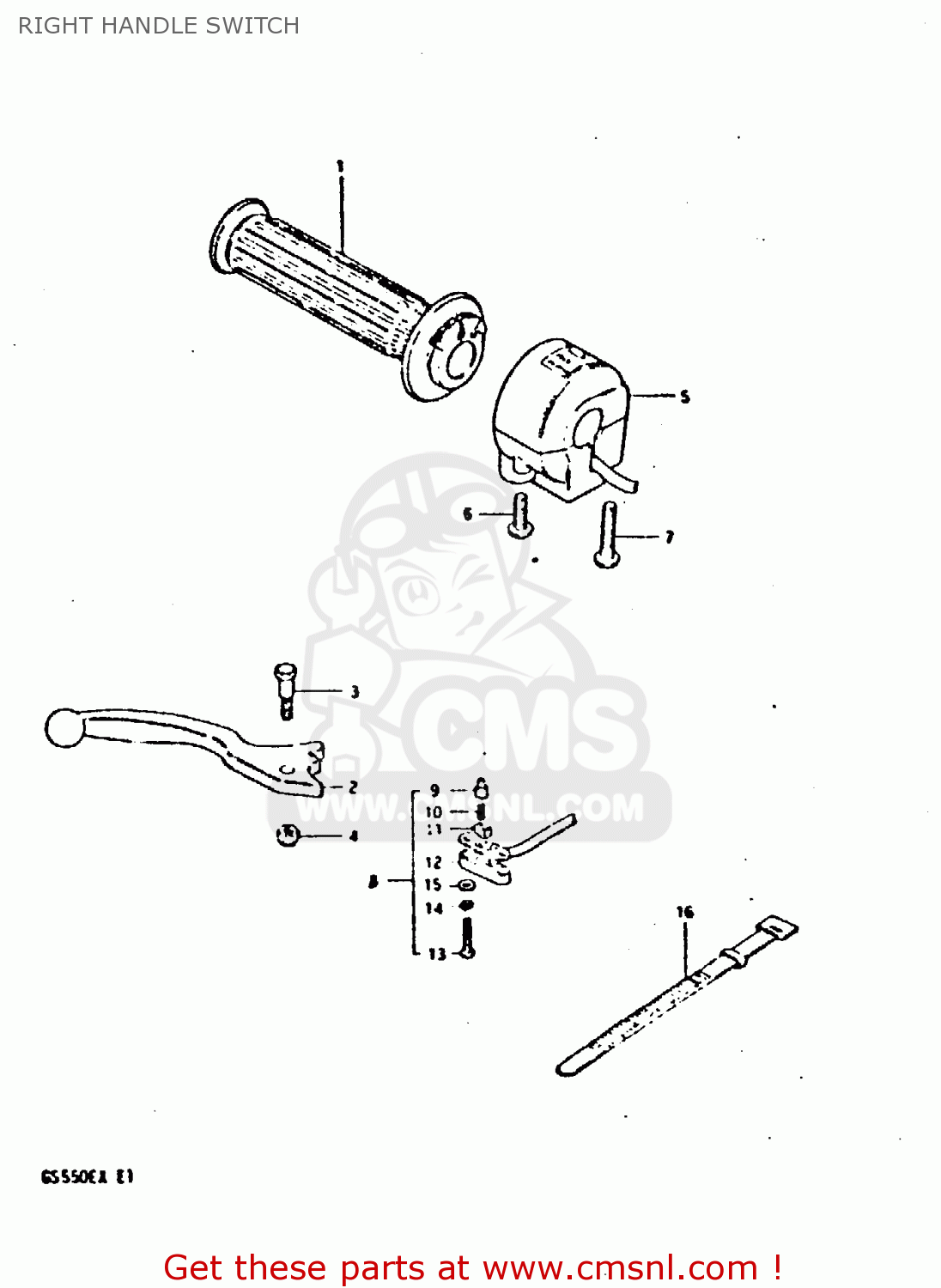

Right handle switch diagram GS550E 1981 (X) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

RIGHT HANDLE SWITCH GS550E 1981 (X) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

RIGHT HANDLE SWITCH GS550E 1981 (X) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

prices are in EUR

ref

part #

description

quantity

1

5711044011
ref: 1

GRIP,THROTTLE

€ 33.00

2

5742049101
ref: 2

LEVER,BRAKE

€ 36.50

3

5743118621
ref: 3

BOLT

€ 8.00

4

0831921068
ref: 4

NUT 6MM

€ 2.00

5-1

3720034210
ref: 5-1

SWITCH ASSY, HANDLE RH

€ 78.50

5-2

3720034410
ref: 5-2

SWITCH ASSY, HANDLE LH

€ 108.50

6

0211205258
ref: 6

SCREW

€ 2.00

7

0211205358
ref: 7

SCREW

€ 1.50

8

NOTUSED
ref: 8

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

9

NOTUSED
ref: 9

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

10

NOTUSED
ref: 10

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11

NOTUSED
ref: 11

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

12

NOTUSED
ref: 12

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

13

NOTUSED
ref: 13

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

14

NOTUSED
ref: 14

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

15

NOTUSED
ref: 15

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

16

0940712402
ref: 16

CLAMP(L:120)

€ 3.00
