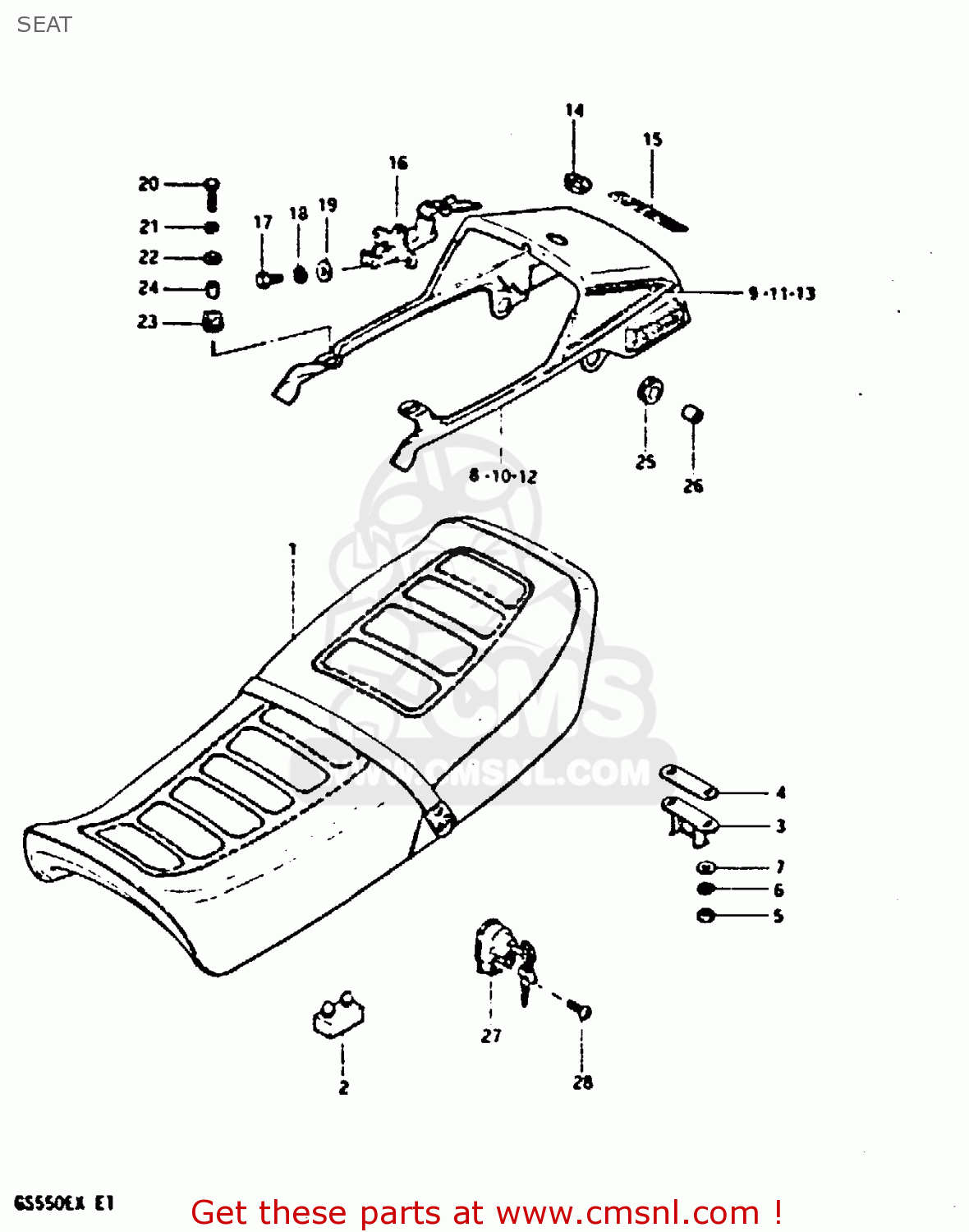

SEAT

ref

part #

description

quantity

1

451003450041G
ref: 1

SEAT ASSEMBLY

€ 269.50

2

0932108008
ref: 2

CUSHION

€ 2.50

3

4521044101
ref: 3

STRIKER,SEAT LOCK

€ 32.50

4

4521744100
ref: 4

SHIM,SEAT LOCK STRIKER

€ 4.50

5

0831022068
ref: 5

NUT 6MM

€ 2.50

6

0832121068
ref: 6

LOCK WASHER

€ 2.50

7

0832221068
ref: 7

WASHER

€ 2.00

8

4550034520019
ref: 8

COVER, SEAT TAIL (BLACK)

€ 91.50

9

681604730076B
ref: 9

TAPE SET

€ 19.00

10

455003452000J
ref: 10

COVER, SEAT TAIL (RED)

€ 91.50

11

681604730066N
ref: 11

TAPE SET

€ 19.00

12

455003452005K
ref: 12

COVER, SEAT TAIL (BLUE)

€ 91.50

13

681604730073B
ref: 13

TAPE SET

€ 19.00

14

4552249200
ref: 14

GROMMET,SEAT LOCK HOLE

€ 5.50

15

6816649200538
ref: 15

EMBLEM,SEAT TAIL COVER

€ 5.00

16

9570049830
ref: 16

LOCK SET,SEAT

€ 81.50

17

0110706128
ref: 17

BOLT

€ 2.00

18

0832121068
ref: 18

LOCK WASHER

€ 2.50

19

0832221068
ref: 19

WASHER

€ 2.00

20

0110706208
ref: 20

BOLT

€ 2.00

21

0832121068
ref: 21

LOCK WASHER

€ 2.50

22

0916006012
ref: 22

WASHER(6,5X22X1.6)

€ 2.00

23

0932010011
ref: 23

CUSHION

€ 5.50

24

0918007004
ref: 24

SPACER(6.5X10.5X12)

€ 2.50

25

0932013007
ref: 25

CUSHION

€ 4.50

26

0918008083
ref: 26

SPACER

€ 4.50

27

9570034210
ref: 27

LOCK ASSY,HELMET

€ 59.00

28

0910605008
ref: 28

BOLT 5X25

€ 2.00

29

4631034500
ref: 29
NOT SHOWN. OPT

CARRIER

€ 39.50

all assemblies
