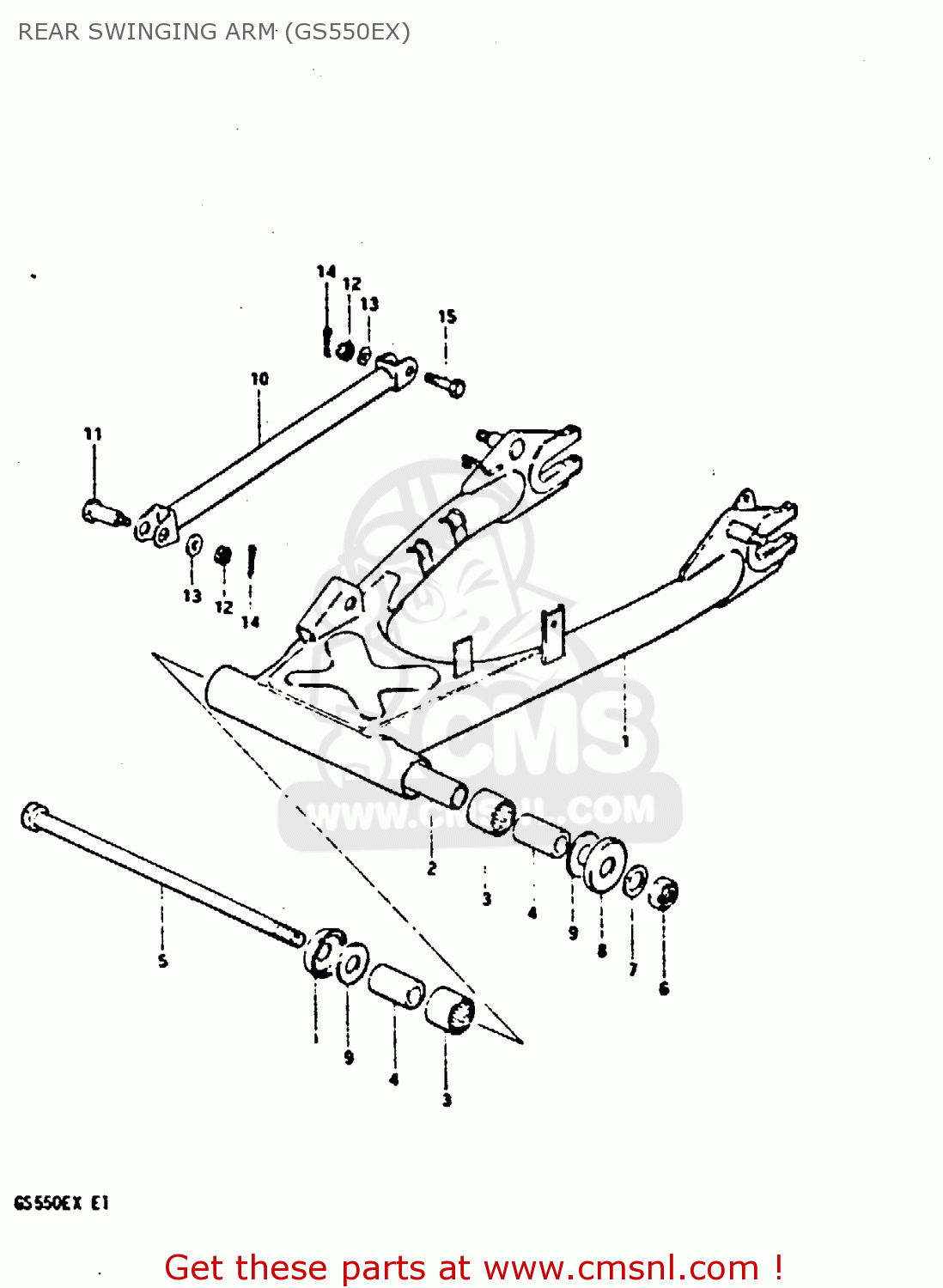

REAR SWINGING ARM (GS550EX)

GS550E 1981 (X) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

Rear swinging arm (gs550ex) diagram GS550E 1981 (X) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

prices are in EUR

ref

part #

description

quantity

6110034821019
ref: 1

SWING ARM ASSEMBLY,REAR

€ 205.00

6128145001
ref: 2

SPACER,RR SWGARM PIVOT CTR

€ 19.50

0926322017
ref: 3

BEARING(22X29X30)

€ 18.50

6125145001
ref: 4

SPACER,RR SWGARM PIVOT

€ 12.50

6121145400
ref: 5

SHAFT,REAR SWING ARM

€ 49.00

0831921148
ref: 6

NUT 14MM

€ 3.00

0832211148
ref: 7

WASHER

€ 2.00

6126245002
ref: 8

CVR,RR SWGARM DUST SEAL(OD:40)

€ 4.50

0916014020
ref: 9

WASHER(14.2X34X1)

€ 2.50

6431034501019
ref: 10

TORQUE LINK,REAR

€ 0.00

0911110011
ref: 11

BOLT

€ 8.00

0831441108
ref: 12

NUT

€ 2.50

0832211108
ref: 13

WASHER

€ 2.50

0411120208
ref: 14

PIN 20X20

€ 1.50

0910110017
ref: 15

BOLT(10X39)

€ 5.00
