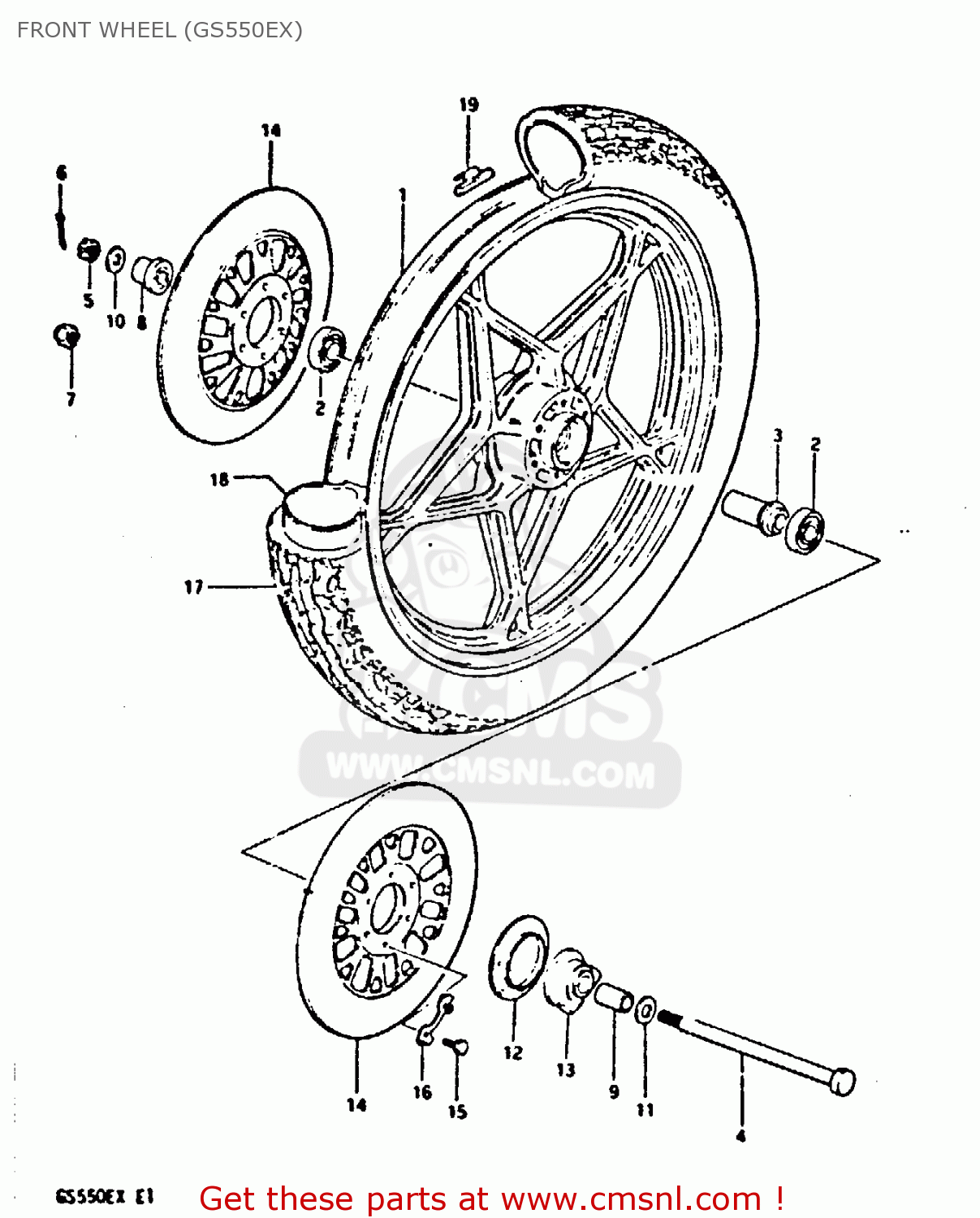

FRONT WHEEL (GS550EX)

GS550E 1981 (X) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

Front wheel (gs550ex) diagram GS550E 1981 (X) (E01 E02 E04 E18 E21 E22 E24 E25 E26 E30 E34)

prices are in EUR

ref

part #

description

quantity

5411147604
ref: 1

WHEEL, FRONT

€ 491.00

0812363027
ref: 2

BEARING

€ 19.00

5473018400
ref: 3

SPACER,FR HUB BEARING

€ 13.00

5471133002
ref: 4

AXLE,FRONT

€ 41.00

0831431128
ref: 5

NUT 12MM

€ 2.00

0411130308
ref: 6

COTTER PIN

€ 1.50

NOTUSED
ref: 7

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

5474018410
ref: 8

SPACER,FR HUB BEARING,R

€ 17.00

0918015034
ref: 9

SPACER(15X22X30)

€ 7.00

0832221128
ref: 10

WASHER

€ 2.00

NOTUSED
ref: 11

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

5487145010
ref: 12

DUST SEAL,SPEEDOMETER GEAR BOX

€ 21.00

5460018401
ref: 13

BOX ASSEMBLY,SPEEDOMETER GEAR

€ 90.50

5921115200
ref: 14

DISK, FRONT BRAKE

€ 0.00

0910008140
ref: 15

BOLT(8X25)

€ 2.00

0916908016
ref: 16

WASHER

€ 3.50

17-1

5510034550
ref: 17-1
DUN

TIRE,FRONT

€ 86.50

17-2

NOTUSED
ref: 17-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

5520015010
ref: 18

TUBE,INNER

€ 41.00

19-1

5541147001
ref: 19-1

BALANCER,WHEEL

€ 4.00

19-2

5541247001
ref: 19-2

BALANCER,WHEEL

€ 3.50
