BRAKE HOSE

GS550L 1979 (N) USA (E03)

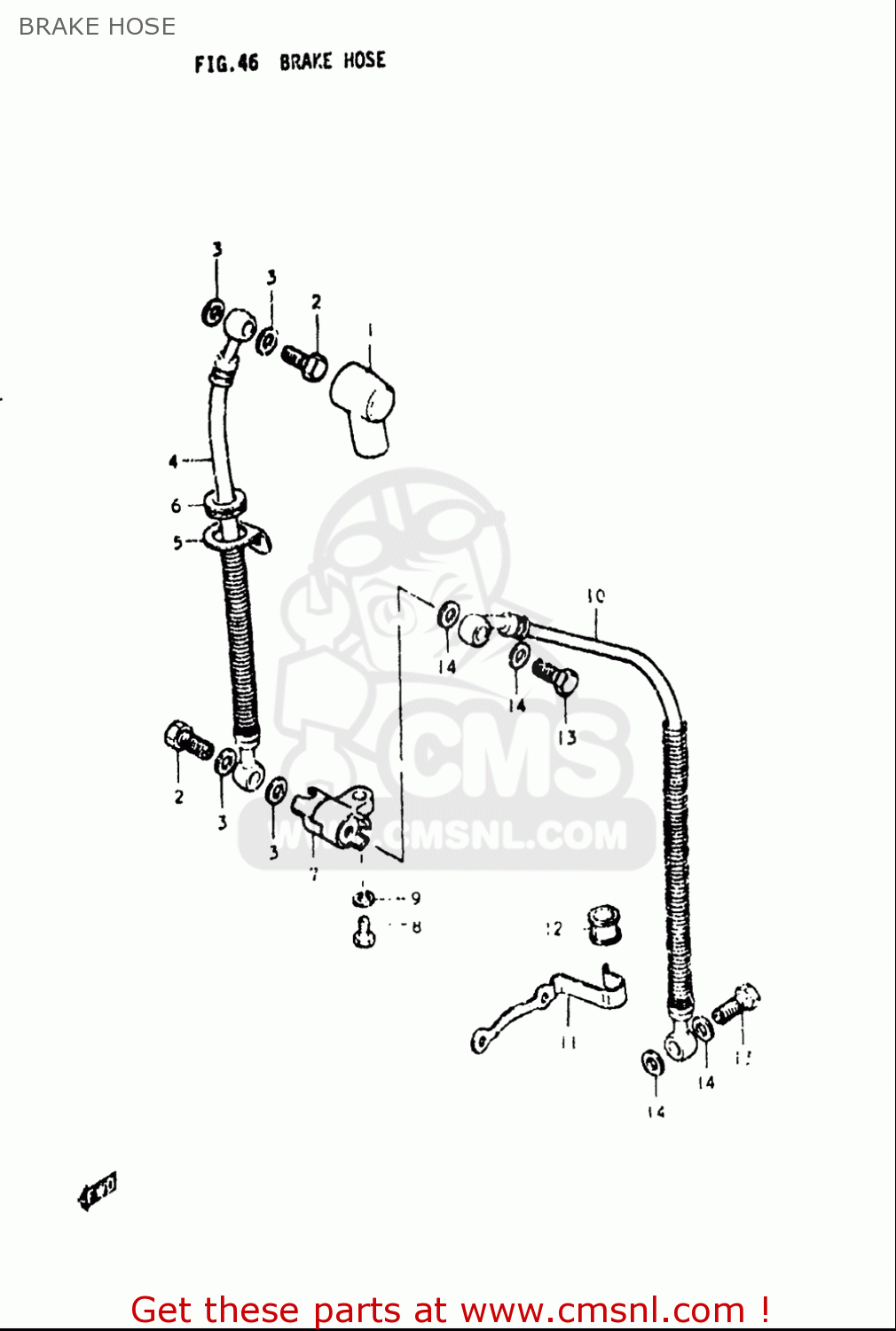

Brake hose diagram GS550L 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

5971149001
ref: 1

BOOT,MASTER CYLINDER

€ 8.50

0936010018
ref: 2

BOLT UNION

€ 7.00

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

5948047052
ref: 4

HOSE,FRONT BRAKE NO.1

€ 38.50

5924345010
ref: 5

GUIDE,BRAKE HOSE

€ 8.50

0930814007
ref: 6

GROMMET

€ 4.00

5949145001
ref: 7

JOINT,BRAKE HOSE

€ 29.00

0150006207
ref: 8

BOLT

€ 2.00

0832101067
ref: 9

WASHER,LOCK

€ 2.50

5924047051
ref: 10

HOSE,FR BRAKE NO.2,L

€ 59.50

5926849001
ref: 11

GUIDE,BRAKE HOSE NO.2

€ 7.00

5924449000
ref: 12

BUSH,BRAKE HOSE GUIDE,NO.2

€ 4.50

0936010017
ref: 13

BOLT UNION

€ 6.50

0916110009
ref: 14

WASHER(10X15X1.5)

€ 2.00
