CYLINDER

GS550L 1979 (N) USA (E03)

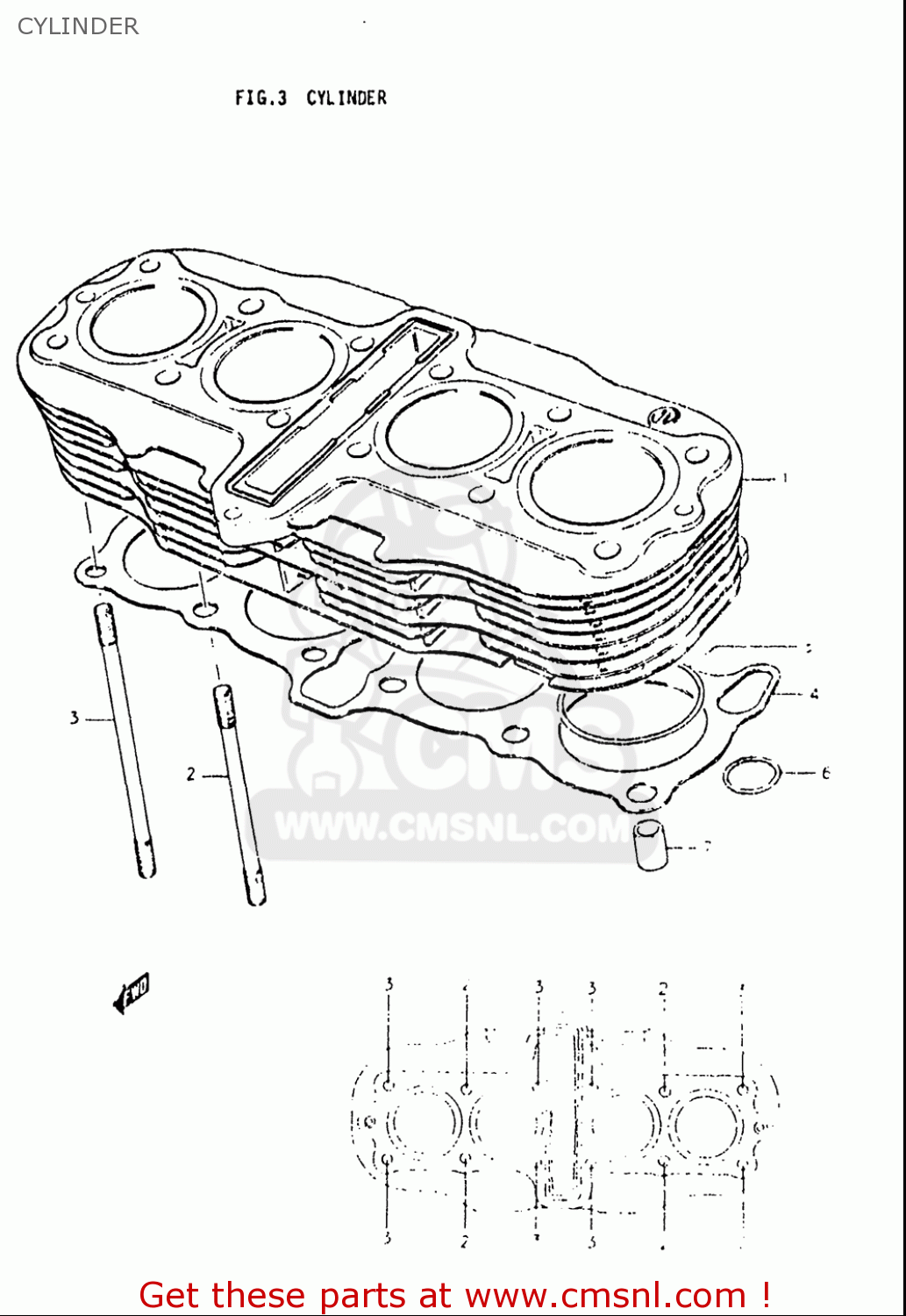

Cylinder diagram GS550L 1979 (N) USA (E03)

CYLINDER GS550L 1979 (N) USA (E03)

CYLINDER GS550L 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

0910808061
ref: 2

BOLT,STUD

€ 7.00

3

0910808062
ref: 3

BOLT,STUD

€ 4.50

4

1124147081H17
ref: 4

GASKET,CYLINDER (NAS)

€ 14.00

5

0928061001
ref: 5

O RING(D:2,ID:61)

€ 4.00

6

0928021005A
ref: 6

INVALID PARTNUMBER

€ 2.00

7

0421113189
ref: 7

PIN

€ 2.50
