CRANKCASE LH COVER
GS550L 1979 (N) USA (E03)

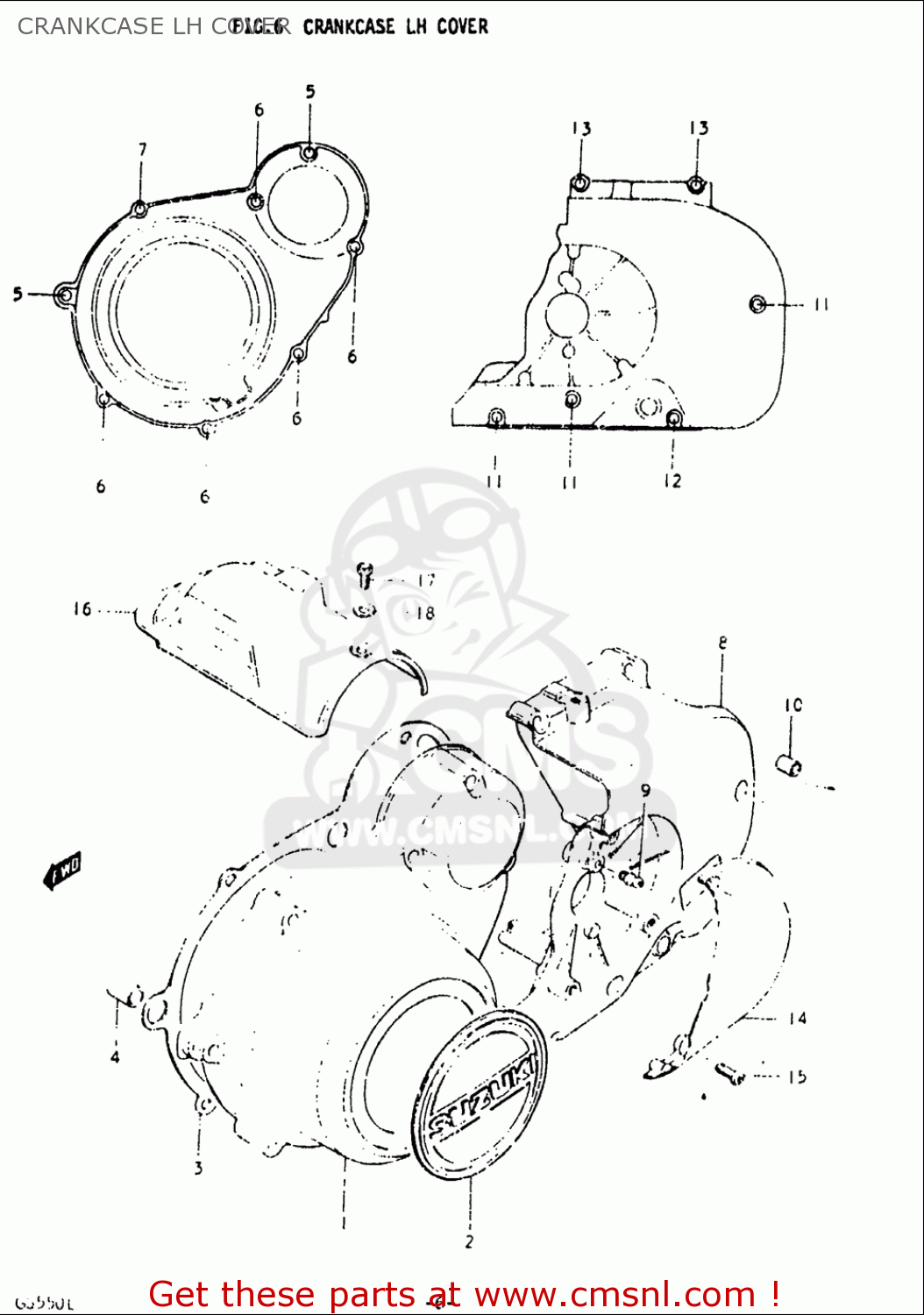

Crankcase lh cover diagram GS550L 1979 (N) USA (E03)
CRANKCASE LH COVER GS550L 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1135147001
ref: 1
COVER,MAGNETO
€ 174.50
2
6823345200
ref: 2
EMBLEM,MAGNETO COVER
€ 20.50
3
1148347000H17
ref: 3
GASKET,MAGNETO COVER (NAS)
€ 16.50
4
0421113189
ref: 4
PIN
€ 2.50
5
0211206457
ref: 5
SCREW
€ 2.00
6
0211206407
ref: 6
SCREW
€ 2.00
7
0211206357
ref: 7
SCREW
€ 2.50
8
1130047822
ref: 8
COVER SET,ENGINE SPROCKET
€ 104.50
9
0835111009
ref: 9
NIPPLE
€ 32.00
10
0421109129
ref: 10
PIN
€ 2.00
11
0211206907
ref: 11
SCREW
€ 3.00
12
0211206807
ref: 12
SCREW
€ 3.00
13
0211206307
ref: 13
SCREW
€ 2.50
15
0211205167
ref: 15
SCREW
€ 2.50
16
1138247001
ref: 16
COVER,STARTER MOTOR
€ 19.00
17
0150005103
ref: 17
BOLT
€ 1.50
18
0832201057
ref: 18
WASHER
€ 2.50
