REAR BRAKE HOSE

GS550L 1979 (N) USA (E03)

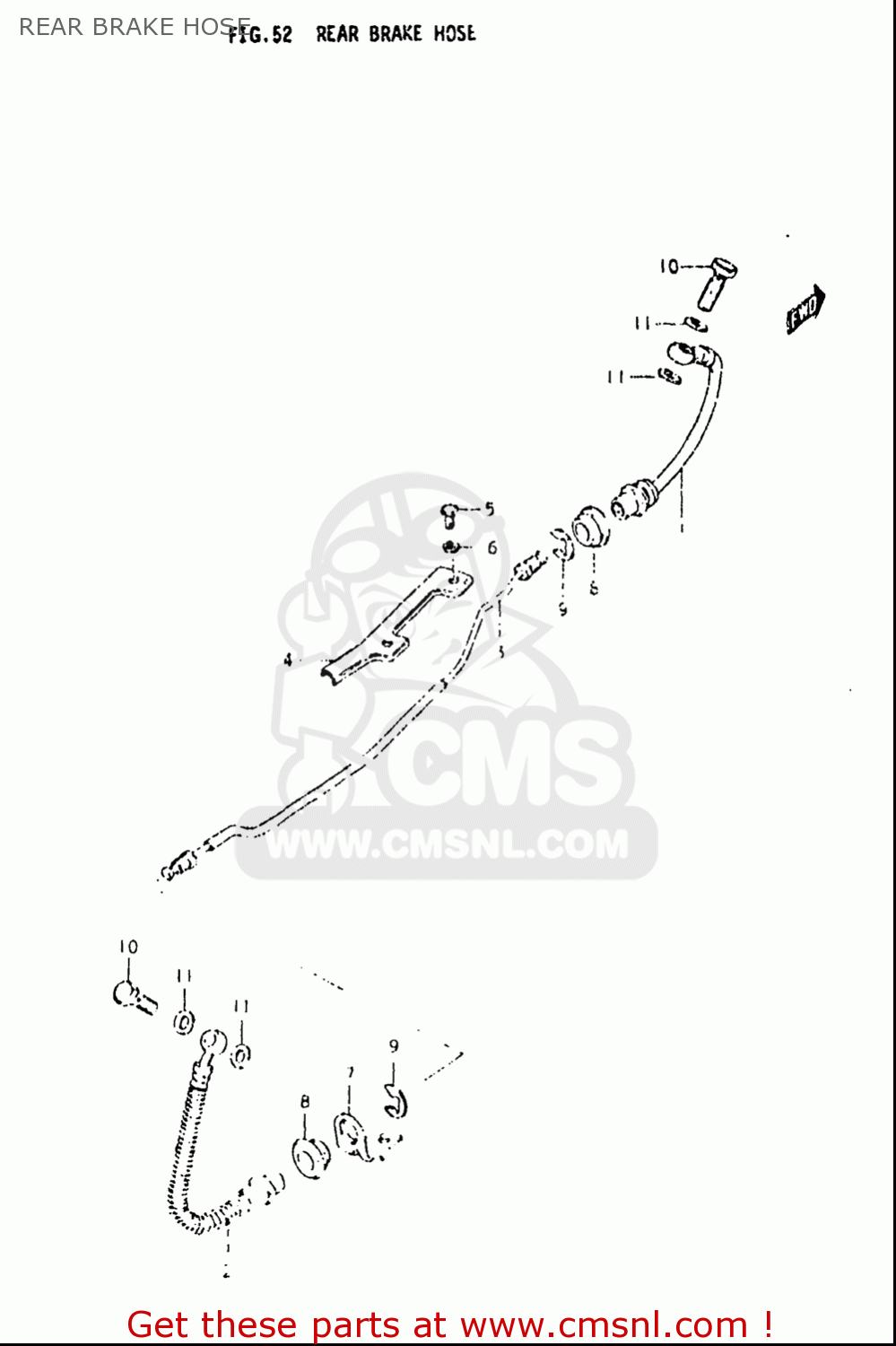

Rear brake hose diagram GS550L 1979 (N) USA (E03)

REAR BRAKE HOSE GS550L 1979 (N) USA (E03)

REAR BRAKE HOSE GS550L 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

6924045000
ref: 2

HOSE,RR BRAKE NO.2

€ 47.00

3

6925047000
ref: 3

PIPE,REAR BRAKE

€ 19.00

4

6924545000
ref: 4

COVER,REAR BRAKE PIPE

€ 10.50

5

0910006011
ref: 5

BOLT(6X8)

€ 2.50

6

0832331068
ref: 6

LOCK WASHER

€ 1.50

7

6924347000
ref: 7

GUIDE,BRAKE HOSE

€ 5.50

8

5924436200
ref: 8

GROMMET,BRAKE HOSE GUIDE

€ 4.00

9

0833211093
ref: 9

E RING

€ 1.50

10

0936010017
ref: 10

BOLT UNION

€ 6.50

11

0916110009
ref: 11

WASHER(10X15X1.5)

€ 2.00
