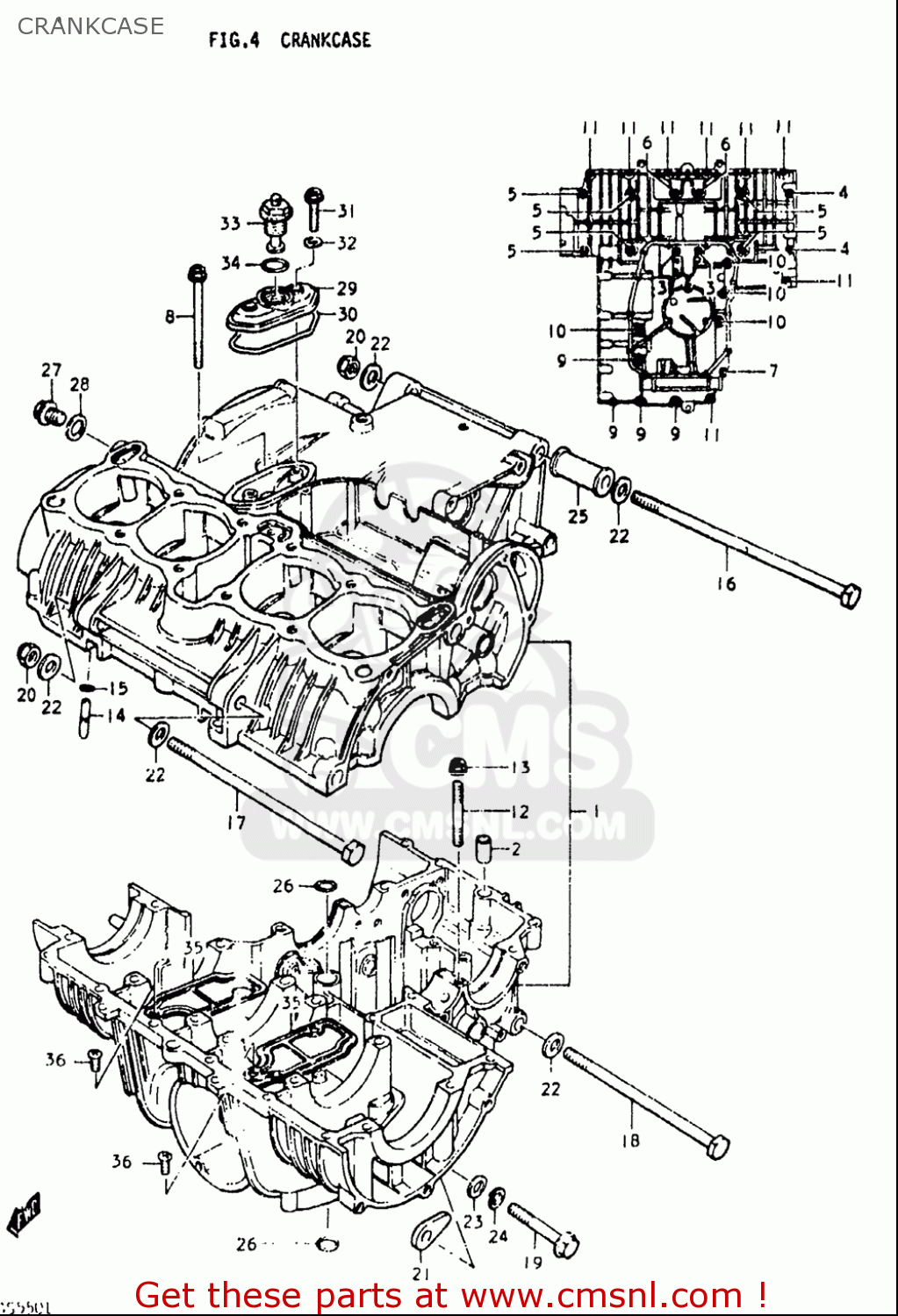

CRANKCASE

ref

part #

description

quantity

2

0421113189
ref: 2

PIN

€ 2.50

3

0910308109
ref: 3

BOLT(8X120)

€ 3.50

4

0155008907
ref: 4

BOLT

€ 3.50

5

0155008707
ref: 5

BOLT

€ 2.00

6

0155008557
ref: 6

BOLT

€ 3.00

7

0155008457
ref: 7

BOLT

€ 4.00

8

0155006907
ref: 8

BOLT

€ 2.00

9

0155006607
ref: 9

BOLT

€ 2.50

10

0155006507
ref: 10

BOLT

€ 2.00

11

0155006407
ref: 11

BOLT

€ 2.50

12

0142106408
ref: 12

STUD BOLT

€ 2.50

13

0831931067
ref: 13

NUT

€ 2.50

14

0936405005
ref: 14

UNION

€ 3.00

15

0928003003
ref: 15

O RING(D:1.05,ID:3.1)

€ 2.50

16

0910010074
ref: 16

BOLT 10X270

€ 15.50

17

0910310138
ref: 17

BOLT(10X200)

€ 11.50

18

0910010078
ref: 18

BOLT(10X165)

€ 10.50

19

0155010557
ref: 19

BOLT

€ 3.00

20

0915910011
ref: 20

NUT

€ 3.00

21

0915910020
ref: 21

NUT

€ 7.50

22

0832201107
ref: 22

WASHER

€ 2.50

23

0916010005
ref: 23

WASHER(10.5X20X3.2)

€ 2.00

24

0832101107
ref: 24

WASHER,LOCK

€ 2.00

25

1161044010
ref: 25

SPACER,ENGINE MOUNT(L:50)

€ 12.00

26

0928013001
ref: 26

O RING(D:3.2,ID:12.9)

€ 4.00

27

0924714026
ref: 27

PLUG(14X12)

€ 3.50

28

0916814004
ref: 28

GASKET(14X19.2X2) (NAS)

€ 2.50

29

1644545000
ref: 29

HOUSING,OIL PRESSURE SWITCH

€ 28.00

30

1644845000
ref: 30

O RING,PRESSURE SWITCH HOUSING

€ 10.50

31

0155006257
ref: 31

BOLT

€ 2.50

32

0916806023
ref: 32

GASKET(5.8X13X1.2) (NAS)

€ 2.00

33

3782045061
ref: 33

SWITCH ASSY,OIL PRESSURE

€ 30.00

34

0928019001
ref: 34

O RING(D:1.9,ID:18.8)

€ 1.50

36

0211206087
ref: 36

SCREW

€ 2.00

all assemblies
