CYLINDER

GS550L 1981 (X) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

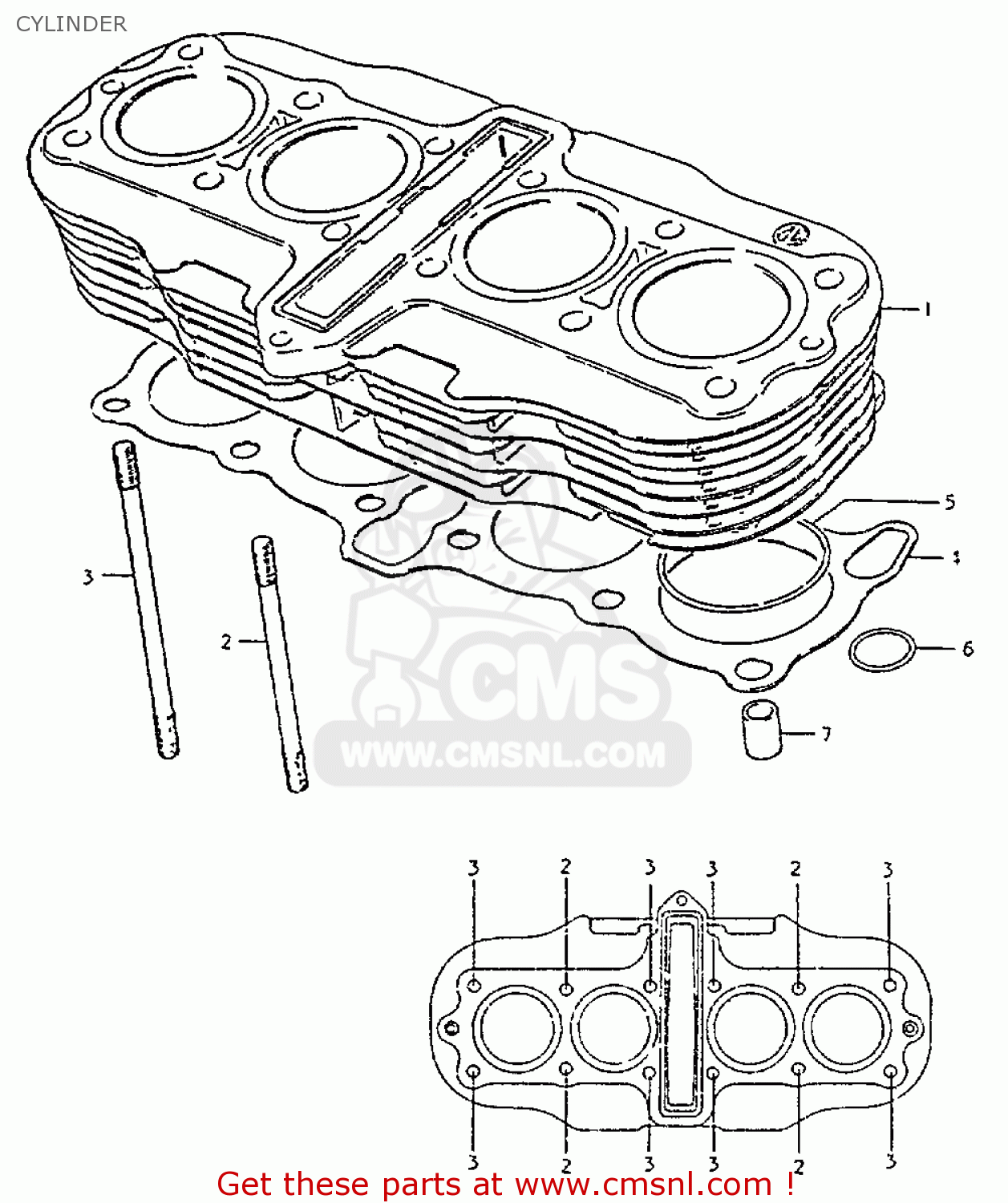

Cylinder diagram GS550L 1981 (X) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

CYLINDER GS550L 1981 (X) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

CYLINDER GS550L 1981 (X) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

1121047004
ref: 1

CYLINDER

€ 945.00

2

0910808061
ref: 2

BOLT,STUD

€ 7.00

3

0910808062
ref: 3

BOLT,STUD

€ 4.50

4

1124147081
ref: 4

GASKET,CYLINDER (MCA)

€ 14.00

5

0928061001
ref: 5

O RING(D:2,ID:61)

€ 4.00

6

0928021005A
ref: 6

INVALID PARTNUMBER

€ 2.00

7

0920613001
ref: 7

PIN

€ 2.50
