FRAME

GS550L 1981 (X) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

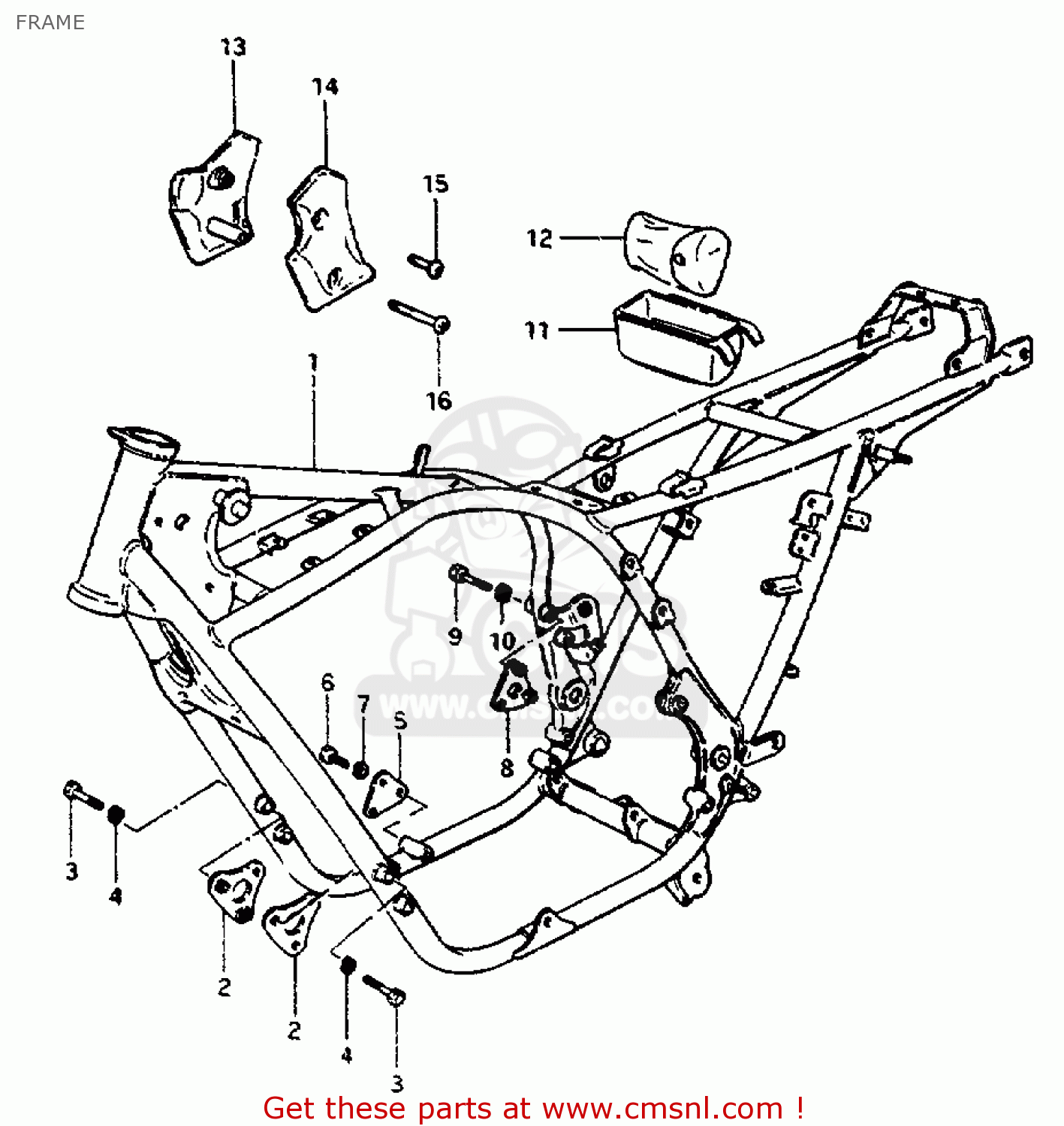

Frame diagram GS550L 1981 (X) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

4110047500019
ref: 1-1

FRAME

€ 0.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

4191047000019
ref: 2

PLATE,ENGINE MOUNTING

€ 8.50

0110708608
ref: 3

BOLT

€ 2.50

0832121088
ref: 4

LOCK WASHER

€ 2.00

4199347000019
ref: 5

PLATE,ENGINE MOUNTING

€ 7.50

0110708168
ref: 6

BOLT

€ 2.00

0832121088
ref: 7

LOCK WASHER

€ 2.00

4199047000019
ref: 8

PLATE,ENGINE MOUNTING

€ 8.00

0110708558
ref: 9

BOLT 8X55

€ 3.00

0832121088
ref: 10

LOCK WASHER

€ 2.00

4155147000
ref: 11

HOLDER,TOOL

€ 0.00

0980006800
ref: 12

TOOL SET

€ 52.00

5187634400
ref: 13

COVER,FRAME HEAD,RIGHT

€ 0.00

5188634400
ref: 14

COVER,FRAME HEAD,LEFT

€ 6.50

0214205205
ref: 15

SCREW

€ 2.00

0214205453
ref: 16

SCREW

€ 2.00
