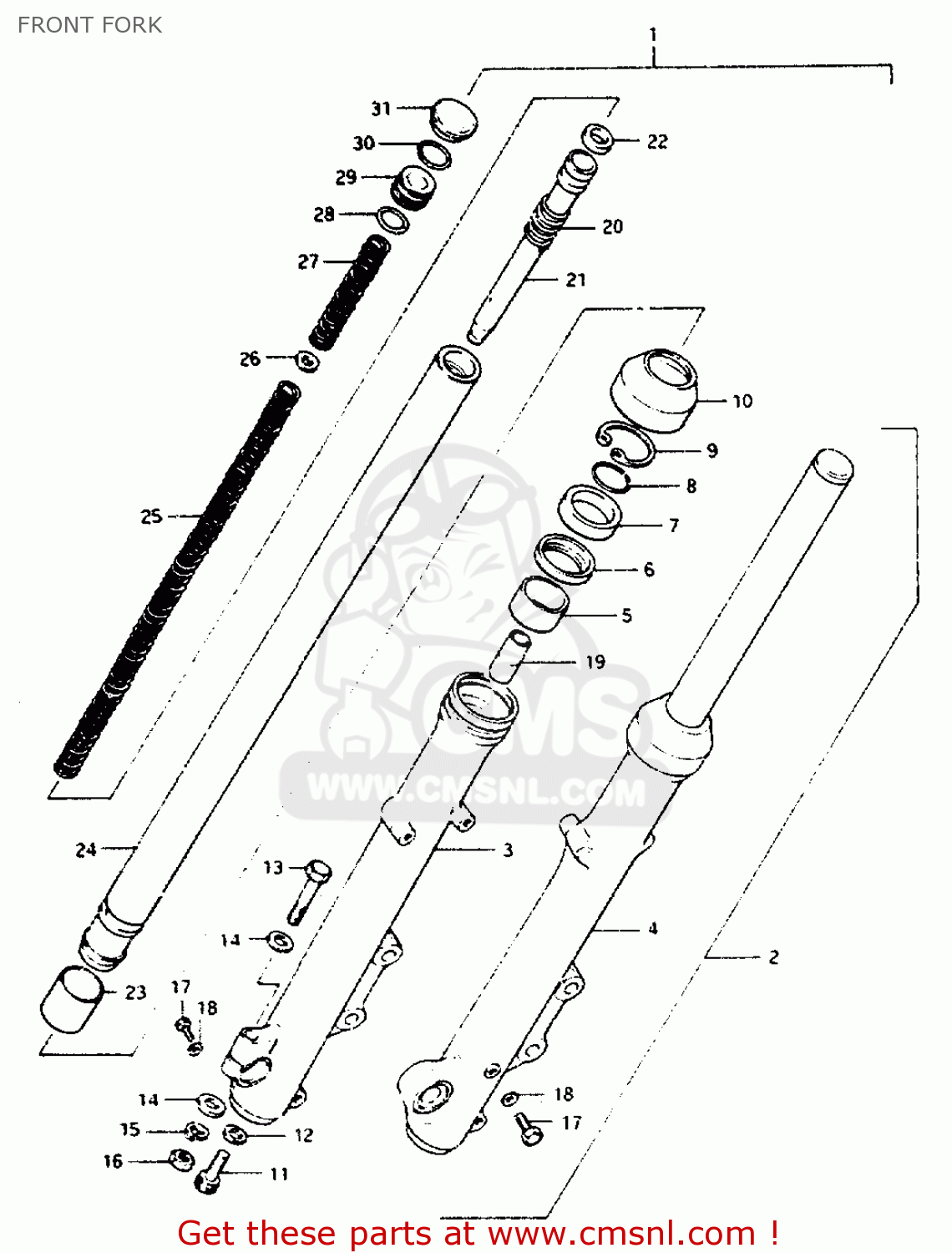

FRONT FORK

ref

part #

description

quantity

1

5110347510
ref: 1

DUMPER ASSY, RH

€ 332.00

2

5110447510
ref: 2

DUMPER ASSY, LH

€ 332.00

3

5113045440
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 188.50

4

5114045440
ref: 4

TUBE,FORK,LEFT,OUTER

€ 0.00

5

5115245400
ref: 5

BUSH,GUIDE

€ 14.00

6

5116845031
ref: 6

SPACER,SEAL

€ 5.00

7

5115334200
ref: 7

OIL SEAL,FRONT FORK

€ 14.00

8

5115845440
ref: 8

RING,FR FORK

€ 3.00

9

5115645440
ref: 9

CIRCLIP,FORK OIL SEAL

€ 3.50

10

5157134200
ref: 10

BOOT

€ 19.50

11

5114748130
ref: 11

BOLT(8X27)

€ 3.50

12

5114831030
ref: 12

GASKET (NAS)

€ 4.00

13

0110708508
ref: 13

BOLT 8X50

€ 3.00

14

0832221088
ref: 14

WASHER

€ 2.00

15

0832121088
ref: 15

LOCK WASHER

€ 2.00

16

0831012088
ref: 16

NUT

€ 2.00

17

0910006011
ref: 17

BOLT(6X8)

€ 2.50

18

5118331030
ref: 18

GASKET,DRAIN,PLUG (NAS)

€ 4.00

19

5119545030
ref: 19

PIECE,OIL LOCK

€ 16.00

20

5117745030
ref: 20

SPRING,FORK REBOUND

€ 4.00

21

5114645230
ref: 21

CYLINDER,FRONT FORK

€ 23.50

22

5119631230
ref: 22

RING

€ 7.50

23

5112145400
ref: 23

PISTON

€ 22.00

24

5111047510
ref: 24

TUBE,FORK,INNER

€ 199.50

25

5118447510
ref: 25

SPRING B

€ 25.00

26

5119247200
ref: 26

WASHER,SPRING

€ 2.50

27

5117145030
ref: 27

SPRING,FRONT FORK,UPPER

€ 9.50

28

5111731030
ref: 28

O-RING

€ 3.50

29

5117547400
ref: 29

SPRING SEAT B

€ 5.50

30

5116947400
ref: 30

RING,STOPPER

€ 2.50

31

5118931230
ref: 31

CAP

€ 6.50
