ELECTRICAL

GS550L 1981 (X) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

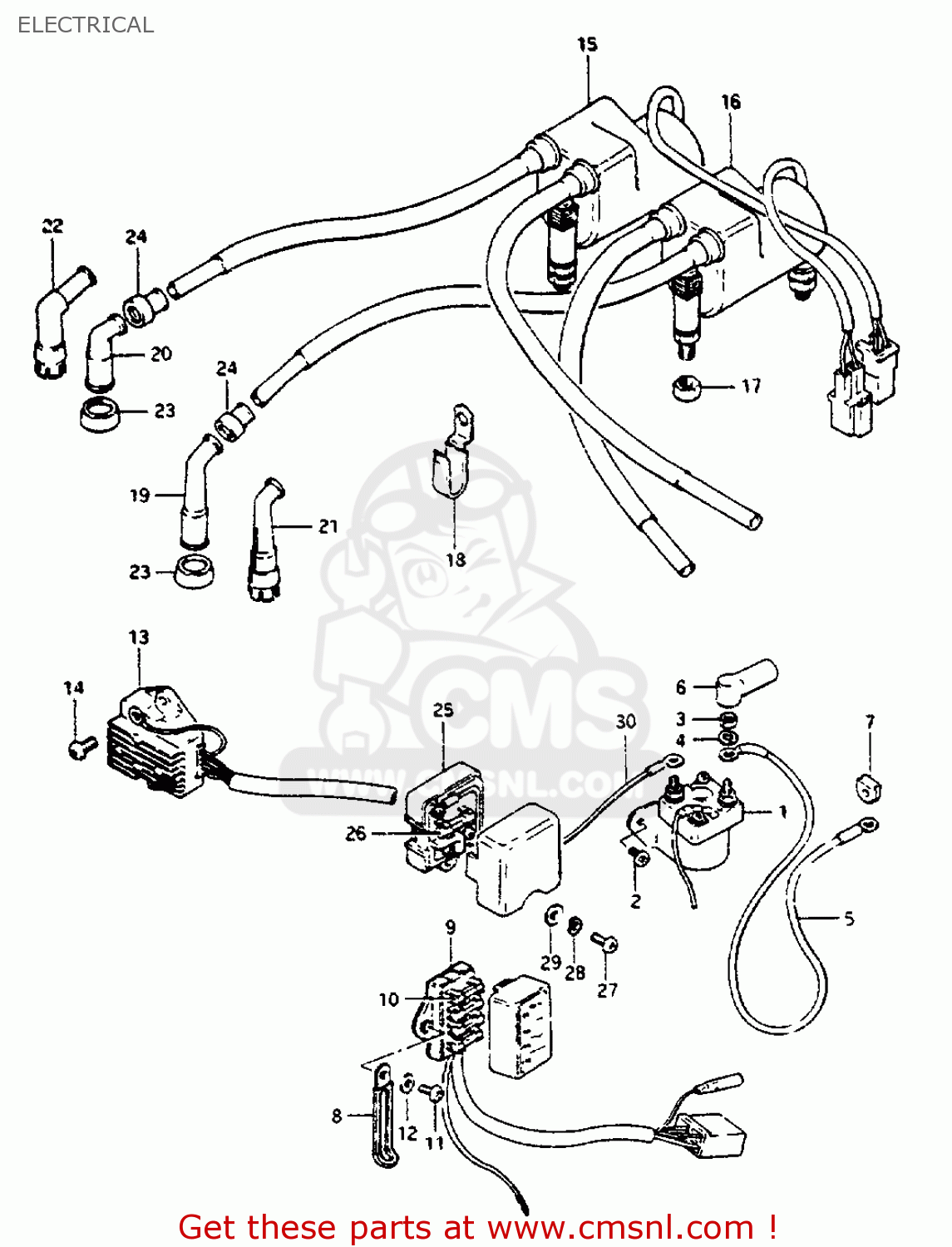

Electrical diagram GS550L 1981 (X) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

ELECTRICAL GS550L 1981 (X) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)
ELECTRICAL GS550L 1981 (X) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)
ELECTRICAL GS550L 1981 (X) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
3180037020
€ 105.00
2
0211206088
ref: 2
SCREW
€ 2.00
3
0831022068
ref: 3
NUT 6MM
€ 2.50
4
0832121068
ref: 4
LOCK WASHER
0832121068
€ 2.50
5
3385047020
ref: 5
WIRE,STARTER MOTOR LEAD
€ 50.00
6
3186135100
ref: 6
CAP,STARTER RELAY
3186135100
€ 4.50
7
3148247000
ref: 7
GROMMET,STARTER CABLE
3148247000
€ 2.00
8
0940406404
ref: 8
CLAMP
0940406404
€ 3.00
9
3674034500
ref: 9
BOX ASSEMBLY,FUSE
3674034500
€ 60.50
10-1
0948115001
ref: 10-1
FUSE(15A)
0948115001
€ 3.00
10-2
0948110001
ref: 10-2
FUSE(10A)
0948110001
€ 2.00
11
0211206128
ref: 11
SCREW 6X12
0211206128
€ 2.00
12
0832221068
ref: 12
WASHER
0832221068
€ 2.00
13
3280047020
ref: 13
RECTIFIER ASSEMBLY
€ 248.00
14
0211206168
ref: 14
SCREW
0211206168
€ 2.50
15
3341047020
ref: 15
COIL ASSEMBLY,IGNITION
3341047020
€ 584.00
16
3342047020
ref: 16
COIL ASSEMBLY,IGNITION
€ 584.00
17
0831011068
ref: 17
NUT
0831011068
€ 2.50
18
0940306307
ref: 18
CLAMP
0940306307
€ 4.50
19
NOTUSED
ref: 19
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
20
NOTUSED
ref: 20
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
21
3351045600
ref: 21
E2,E4,E21,E22,E26,E3
CAP,SPARK PLUG
3351045600
€ 47.00
22
3351044600
ref: 22
E2,E4,E21,E22,E26,E3
CAP, SPARK PLUG (S)
3351044600
€ 40.00
23
NOTUSED
ref: 23
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
24
3354298000
ref: 24
SEAL,SPARK PLU
3354298000
€ 4.50
25
3885047000
ref: 25
TERMINAL ASSEMBLY,POWER SO
3885047000
€ 94.00
26
0948110001
ref: 26
FUSE(10A)
0948110001
€ 2.00
27
0211206168
ref: 27
SCREW
0211206168
€ 2.50
28
0832121068
ref: 28
LOCK WASHER
0832121068
€ 2.50
29
0832221068
ref: 29
WASHER
0832221068
€ 2.00
30
3685147000
ref: 30
WIRE,POWER SOURCE LEAD
3685147000
€ 8.50
