FRAME COVER

GS550L 1981 (X) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

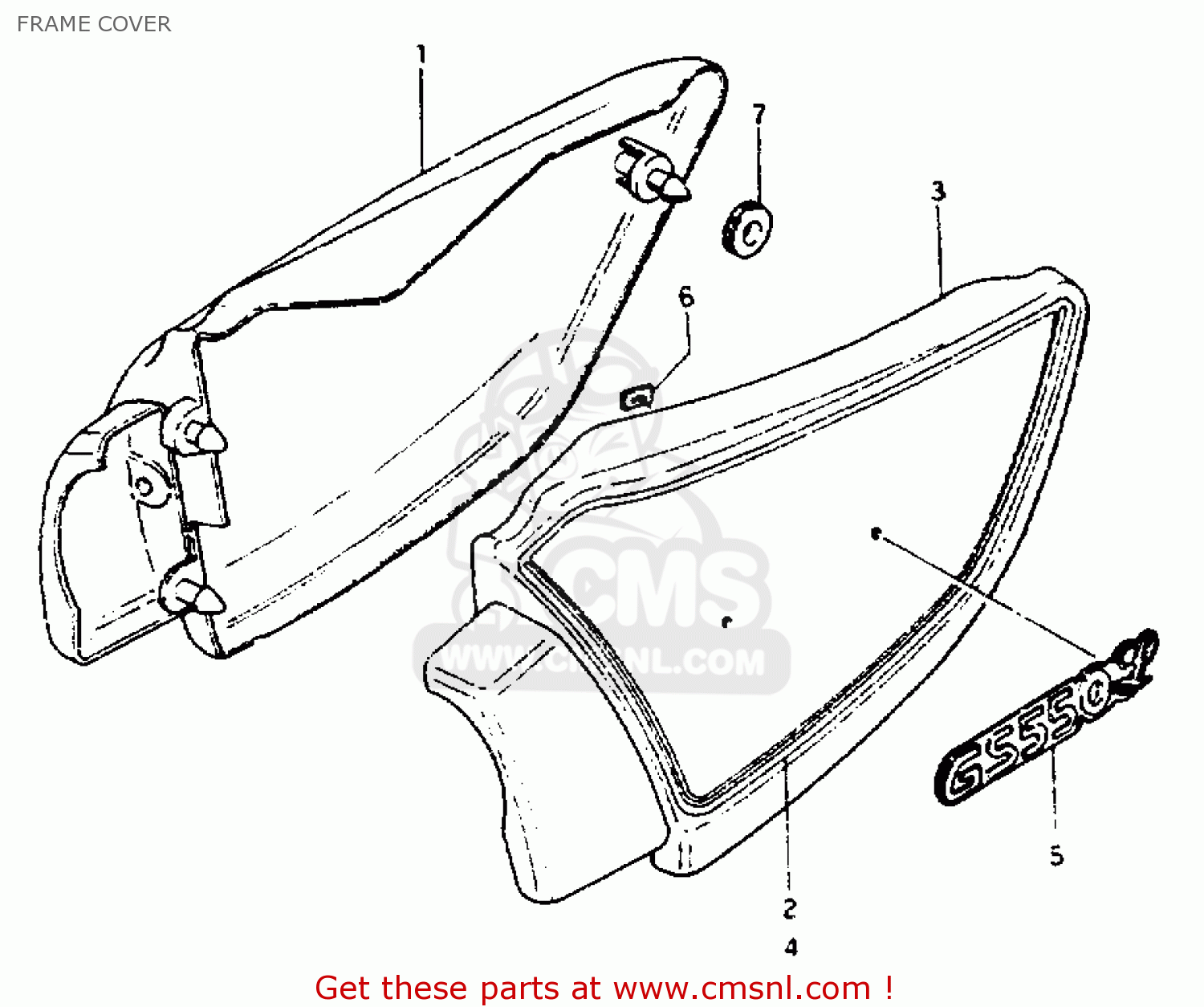

Frame cover diagram GS550L 1981 (X) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

FRAME COVER GS550L 1981 (X) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

FRAME COVER GS550L 1981 (X) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

4711047500019
ref: 1-1

COVER,FRAME,RIGHT

€ 48.00

1-2

471104750005L
ref: 1-2

COVER,FRAME,RIGHT

€ 48.00

2

6813047500764
ref: 2

TAPE SET,FRAME COVER

€ 0.00

3-1

4721047500019
ref: 3-1

COVER,FRAME,LEFT

€ 66.00

3-2

472104750005L
ref: 3-2

COVER,FRAME,LEFT

€ 66.00

4

6814047500764
ref: 4

TAPE SET,FRAME COVER

€ 15.00

5

6813147500
ref: 5

EMBLEM,FRAME COVER

€ 32.50

6

0914803002
ref: 6

NUT

€ 3.00

7

0932008018
ref: 7

CUSHION

€ 4.00
