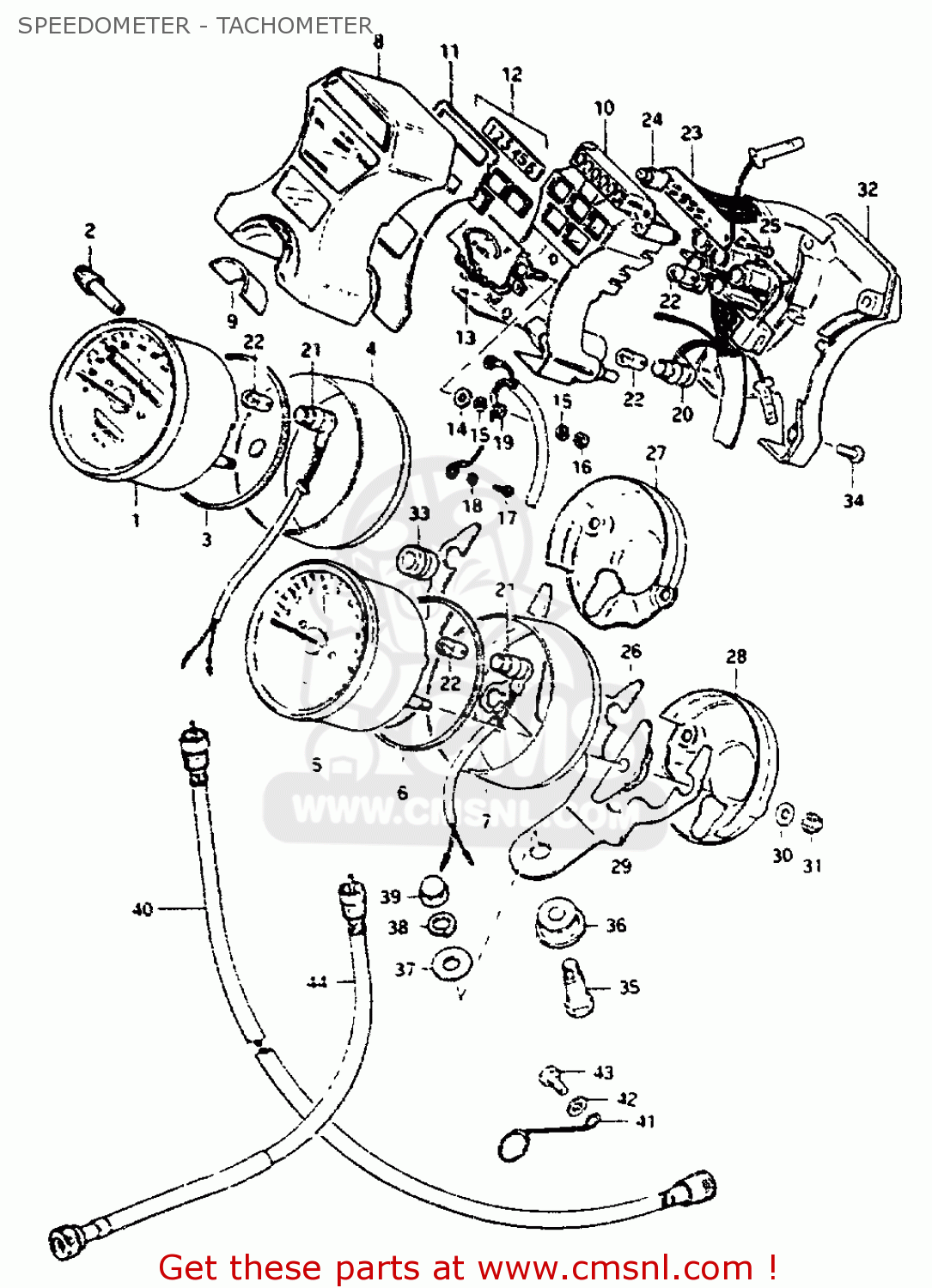

SPEEDOMETER - TACHOMETER - GS550L 1981 (X) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

ref

part #

description

quantity

1-1

3411045212
ref: 1-1
MILE &3 KILO SCALE

SPEEDOMETER

€ 0.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

3498045020
ref: 2

KNOB

€ 4.50

3

3418945300
ref: 3

CUSHION

€ 10.00

4

3415145300
ref: 4

COVER,SPEEDOMETER

€ 16.00

5

3421047241
ref: 5

TACH0METER

€ 288.00

6

3418945300
ref: 6

CUSHION

€ 10.00

7

3425145300
ref: 7

COVER,TACHOMETER

€ 12.00

8

3638145300
ref: 8

CASE,PILOT BOX,OUTER

€ 54.50

9

3499347000
ref: 9

SEAL,IGNITION SWITCH

€ 3.00

10

3638245300
ref: 10

CASE, PILOT BOX INNER

€ 27.00

11

3638645300
ref: 11

PLATE,PILOT BOX

€ 6.50

12

3630045810
ref: 12

LENS SET,PILOT

€ 22.50

13

3432045300
ref: 13

METER,FUEL

€ 85.00

14

0832221048
ref: 14

WASHER

€ 2.00

15

0832121048
ref: 15

LOCK WASHER

€ 2.00

16

0831032048
ref: 16

NUT

€ 2.00

17

0211203088
ref: 17

SCREW

€ 1.50

18

0832121038
ref: 18

LOCK WASHER

€ 1.50

19

3437845301
ref: 19

LEAD WIRE, FUELMETER

€ 23.00

20

3632545301
ref: 20

SOCKET

€ 61.00

21

3417345301
ref: 21

SOCKET,METER

€ 15.50

22

0947112001
ref: 22

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

23

3645347200
ref: 23

INDICATOR ASSEMBLY,GEAR POSITION

€ 106.50

24

0947112071
ref: 24

BULB(14V1.12W)

€ 5.00

25

3645745100
ref: 25

SCREW

€ 2.00

26

3495045300
ref: 26

BRACKET,COMBINATION METER

€ 14.00

27

3419345300
ref: 27

ORNAMENT,SPEEDOMETER

€ 35.50

28

3429345300
ref: 28

COVER,TACHOMETER

€ 35.50

29

3419145300
ref: 29

CUSHION,METER

€ 3.50

30

0832221058
ref: 30

WASHER

€ 2.50

31

0831311057
ref: 31

NUT

€ 1.50

32

3638345300
ref: 32

COVER,PILOT BOX,UNDER

€ 41.50

33

3638445300
ref: 33

CUSHION,PILOT BOX

€ 3.50

34

3638745300
ref: 34

SCREW,PILOT BOX

€ 2.00

35

0911108040
ref: 35

BOLT

€ 4.00

36

3495631000
ref: 36

CUSHION,METER

€ 4.50

37

0916008047
ref: 37

WASHER(8.5X23X1.2)

€ 2.00

38

0832121085
ref: 38

LOCK WASHER

€ 2.50

39

0831311085
ref: 39

NUT,M8X1.25X12

€ 2.00

40

3491034410
ref: 40

CABLE ASSEMBLY,SPEEDOMETER

€ 20.50

41

3493837000
ref: 41

GUIDE,SPEEDOMETER CABLE

€ 14.50

42

0110706168
ref: 42

BOLT, UPPER

€ 3.00

43

0832221068
ref: 43

WASHER

€ 2.00

44

3494044110
ref: 44

CABLE ASSEMBLY,TACHOMETER

€ 49.00
