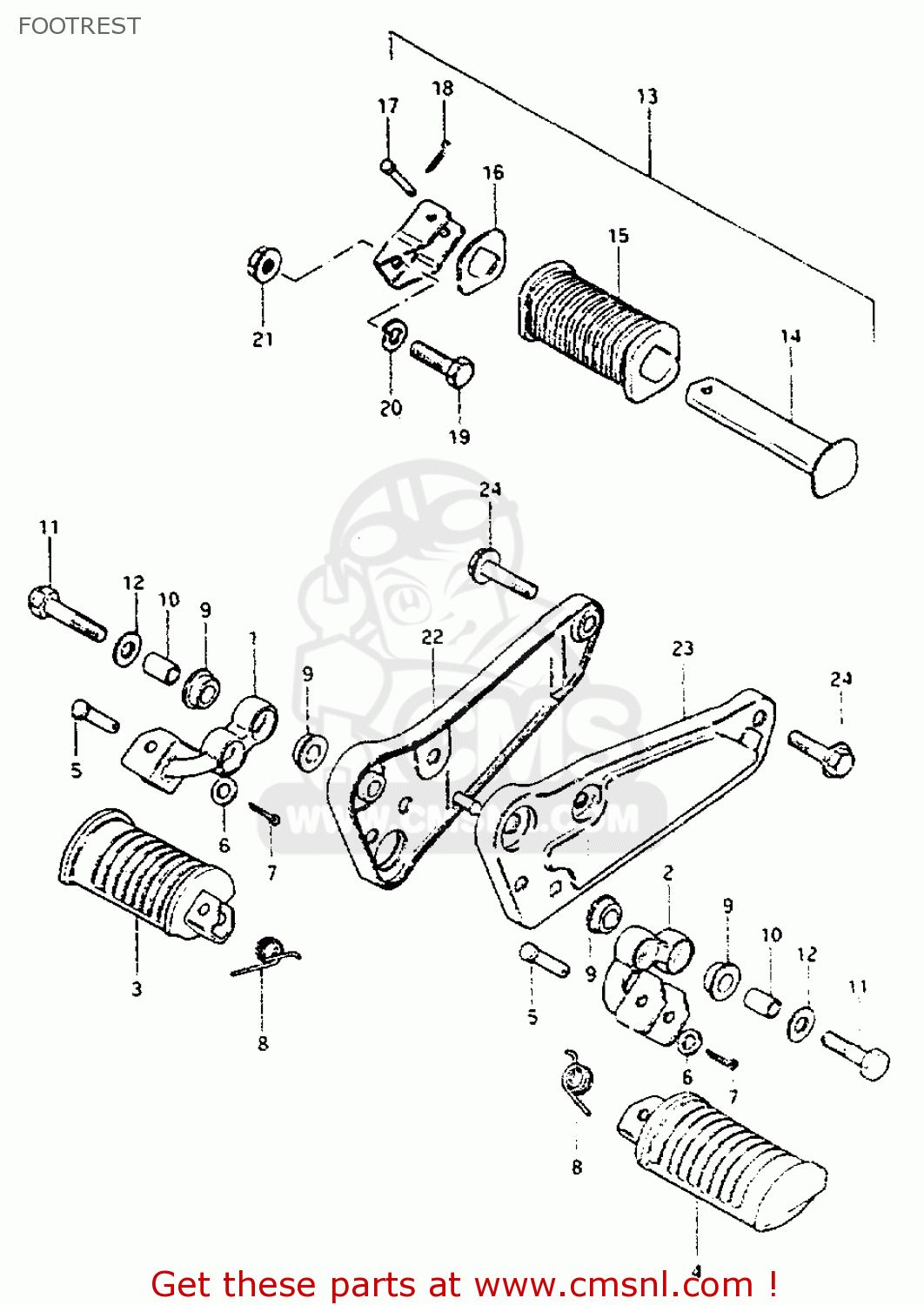

FOOTREST

ref

part #

description

quantity

1

4351034500
ref: 1

BAR,FRONT FOOTREST

€ 24.50

2

4352034500
ref: 2

FOOTREST,FRONT,LEFT

€ 41.50

3

4355037301
ref: 3

RUBBER,PILLION FOOTREST,R

€ 22.50

4

4356037301
ref: 4

RUBBER,PILLION FOOTREST,L

€ 22.50

5

0920008002
ref: 5

PIN

€ 2.00

6

0832211088
ref: 6

WASHER

€ 2.00

7

0411120158
ref: 7

PIN

€ 1.50

8

0944814012
ref: 8

SPRING

€ 3.00

9

0930514004
ref: 9

BUSH

€ 6.00

10

0918010066
ref: 10

SPACER (10.2X14X20)

€ 3.50

11

0910410009
ref: 11

BOLT(10X50)

€ 19.50

12

0916010035
ref: 12

WASHER(10.5X28X2.3)

€ 2.00

13-1

4360034500
ref: 13-1

FOOTREST ASSY,PILLION,R

€ 118.00

13-2

4370034500
ref: 13-2

FOOTREST ASSY,PILLION,L

€ 107.50

14-1

4361049201
ref: 14-1

BAR,REAR FOOTREST,RIGHT

€ 8.00

14-2

4362049201
ref: 14-2

BAR,REAR FOOTREST,LEFT

€ 23.00

15

4361249201
ref: 15

RUBBER,PILLION FOOTREST

€ 30.50

16

4363149201
ref: 16

WASHER,FOOTREST RUBBER

€ 16.00

17

0920006010
ref: 17

PIN

€ 2.50

18

0411120158
ref: 18

PIN

€ 1.50

19

0110710358
ref: 19

BOLT,M10X1.25X

€ 2.50

20

0832121108
ref: 20

LOCK WASHER

€ 2.00

21

0831616108
ref: 21

NUT

€ 2.00

22

4381034500
ref: 22

BRACKET,MUFFLER,RIGHT

€ 61.00

23

4382034500
ref: 23

BRACKET,MUFFLER,LEFT

€ 0.00

24

0152710207
ref: 24

BOLT

€ 3.00

all assemblies
